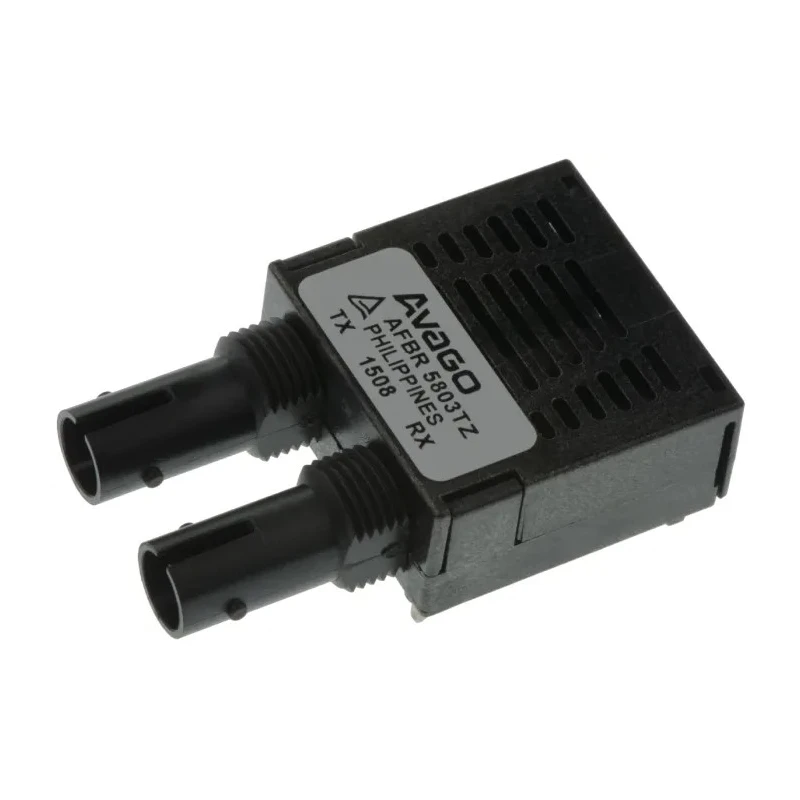

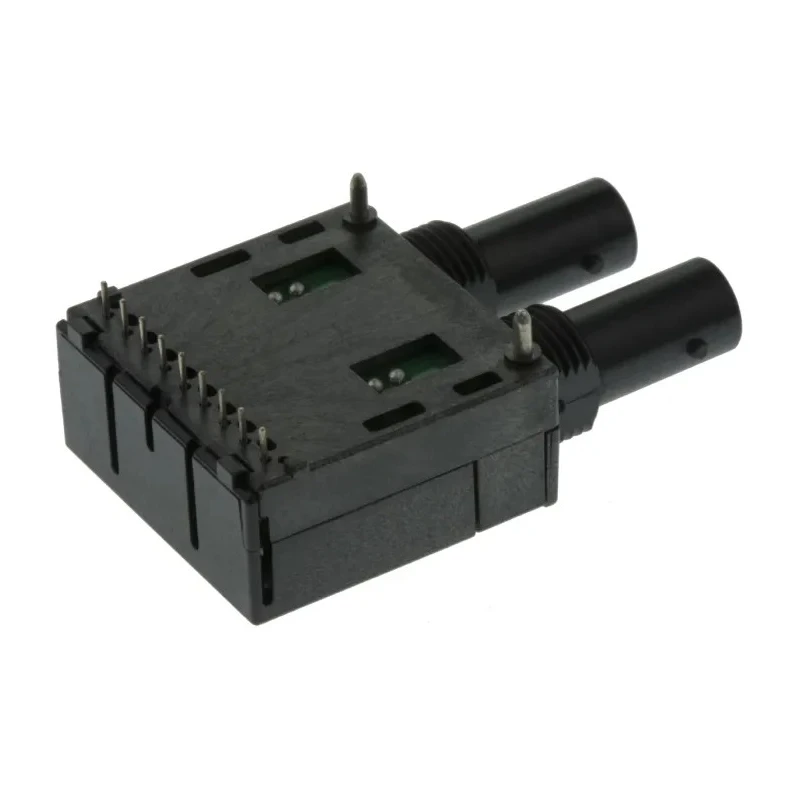

Broadcom Fibre Optic Transceiver ST Connector 100 Mbps 1380 nm 9-Pin AFBR-5803TZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Height | 24.8mm |
| Length | 25.4mm |
| Model | AFBR-5803TZ |
| Connector Type | ST |
| Width | 12mm |
| Mount Type | Through Hole |
| Series | AFBR-5800Z |
| Standards/Approvals | UL, RoHS |
| Number of Pins | 9 |
| Maximum Data Rate | 100Mbps |
| Output Signal Type | Analogue |
| Connector Shape | Round |
| Wavelength of Peak Sensitivity | 1380nm |
| Transmitter Typical Rise Time | 1.9ns |
| Transmitter Typical Fall Time | 1.6ns |
| Receiver Jitter at Maximum Data Rate | 2.14ns |
| Transmitter Jitter at Maximum Data | 0.6ns |
Key Features
- Designed for through hole mount installation ensuring robust and reliable connections.
- Equipped with a 9-pin round connector for versatile connectivity.
- Features transmitter typical rise time of 1.9 nanoseconds optimizing signal quality.
- Provides transmitter typical fall time of 1.6 nanoseconds for efficient data signals.
- Maintains a receiver jitter at maximum data rate of 2.14 nanoseconds to ensure signal integrity.
- Includes transmitter jitter at maximum data rate of 0.6 nanoseconds supporting stable transmissions.
- Compact size with dimensions 25.4 mm length, 24.8 mm height, and 12 mm width fitting various applications.
- Complies with UL and RoHS standards assuring safety and environmental compliance.
Product Description
Broadcom AFBR-5803TZ is a high-performance fibre optic transceiver designed for fast Ethernet applications requiring 100 Mbps data rate with a peak sensitivity wavelength of 1380 nm. This device features a 9-pin round connector with an ST connector type and is mounted through hole to provide secure and stable installation in various electronic systems.
The transceiver offers excellent transmitter signal characteristics with a typical rise time of 1.9 ns and a fall time of 1.6 ns, ensuring minimal delay and distortion of data signals. Additionally, the receiver jitter at maximum data rate is limited to 2.14 ns, while transmitter jitter is controlled within 0.6 ns to maintain high signal quality even at full data transmission speeds.
With dimensions of 25.4 mm in length, 24.8 mm in height, and 12 mm in width, this compact fibre optic module integrates efficiently into electronic devices and fibre optic communication equipment. The analogue output signal type provides compatibility for a wide range of optical networking systems.
Manufactured to comply with UL and RoHS certifications, the AFBR-5803TZ ensures adherence to safety regulations and environmental standards. It forms part of the AFBR-5800Z series, tailored for fast Ethernet transceiver needs and produced by Broadcom.
Designed for through hole mount ensuring reliable mechanical installation. Round connector shape with 9 pins for effective connection management. Transmitter typical rise and fall times of 1.9 ns and 1.6 ns respectively for precise data transmission.
Low jitter receiver and transmitter characteristics enhance communication integrity. Compact footprint enables integration in space-limited electronics. Standards compliance includes UL and RoHS for product safety and eco-friendliness.
Analogue output signal type supports broad fibre optic communication applications.
This fibre optic transceiver is ideal for industrial, telecom, laboratory, and manufacturing environments requiring dependable optical network connections. The AFBR-5803TZ boosts system performance for networking equipment, ensuring robust and efficient data transfer over optic fibre links.
Explore more options in Fibre Optic Transceivers and related components at EnvMart, your trusted source for electronic components and industrial-grade fibre optic devices.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum data rate of the Broadcom AFBR-5803TZ is 100 Mbps.
This unit has dimensions of 25.4 mm in length, 24.8 mm in height, and 12 mm in width.
It features an ST connector type with a round shape and 9 pins for connectivity.
The peak sensitivity wavelength for this model is 1380 nm.
The transmitter has a typical rise time of 1.9 ns and a fall time of 1.6 ns.
The receiver jitter at maximum data rate is limited to 2.14 ns.
It complies with UL and RoHS standards, ensuring safety and environmental compliance.
This model provides an analogue output signal type, suitable for various optical networking systems.
It is designed for through hole mounting, ensuring a secure and stable installation.
The low jitter characteristics of 0.6 ns for the transmitter and 2.14 ns for the receiver enhance communication integrity.
It is suitable for use in industrial, telecom, laboratory, and manufacturing environments requiring reliable optical network connections.
