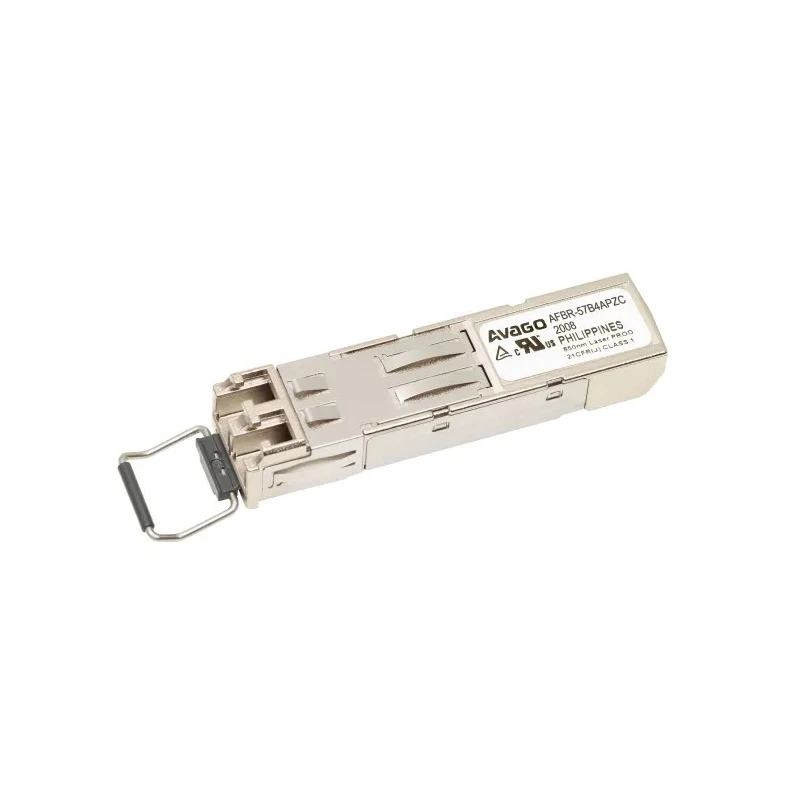

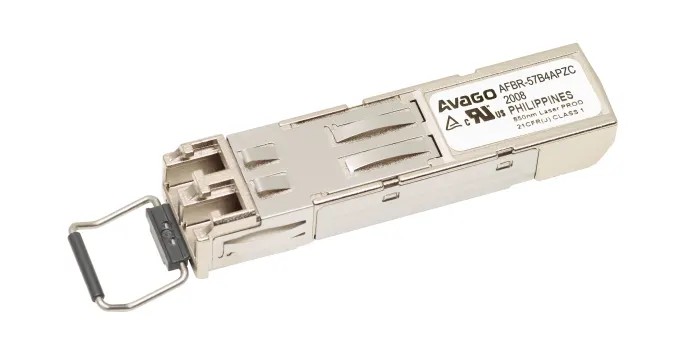

Broadcom Fibre Optic Transceiver LC Duplex Connector 50,000 kbps AFBR-57B4APZC

Free Delivery in India | Lowest Global Shipping Charges

Broadcom Fibre Optic Transceiver LC Duplex Connector 50,000 kbps AFBR-57B4APZC

Name: Broadcom Fibre Optic Transceiver LC Duplex Connector 50,000 kbps AFBR-57B4APZC
Brand: Broadcom
SKU: 171846
Price: 100.38 USD
Availability: InStock



Category Fibre Optic Transceivers Brand Broadcom Condition New

Specifications

Country of Origin	Philippines
Brand	Broadcom
Model	AFBR-57B4APZC
Connector Type	LC Duplex
Series	ATMEL AT24C02C
Standards/Approvals	IEC 61000-4-2
Maximum Data Rate	50000kbps
Connector Shape	Rectangular
Transmitter Typical Rise Time	5ns
Transmitter Typical Fall Time	3ns
Maximum Data Transmission Distance	2km

Key Features

Supports data transmission distances up to 2 km over multimode fibers.
Features a rectangular connector shape with LC duplex type for secure connections.
Employs an 850 nm VCSEL transmitter with typical rise and fall times of 5 ns and 3 ns respectively.
Compliant with IEC 61000-4-2 standards ensuring EMI and EMC robustness.
Operates with a single 3.3 V power supply designed for low current and low power dissipation.
Hot pluggable SFP connector compatible with SFP MSA specification.
Equipped with integrated transmitter and receiver ICs featuring LVTTL input/output logic.
Meets Class 1 FDA IEC60825-1 laser safety requirements for safe operation.

Product Description

Broadcom AFBR-57B4APZC Fibre Optic Transceiver is a high-performance SFP module designed for fast and reliable data transmission in industrial and networking applications. It supports data rates from DC up to 50 MBaud (50,000 kbps) over distances up to 2 kilometers using 62.5 μm/125 μm multimode optical fibers. Its LC duplex rectangular connector ensures secure and convenient connection interfaces.

The transceiver features an 850 nm VCSEL transmitter with rapid response times (5 ns rise, 3 ns fall) providing efficient signal transmission with low power consumption on a single 3.3 V supply. The module is hot pluggable, making it easy to install and replace without system downtime, complying fully with the SFP MSA specifications.

Designed for demanding environments, the AFBR-57B4APZC offers excellent electromagnetic interference (EMI) and electromagnetic compatibility (EMC) behavior, conforming to IEC 61000-4-2 standards. Its integrated PIN diode receiver and driver ICs with LVTTL logic enable high reliability and accuracy in signal reception and transmission.

This transceiver unit is rated as Class 1 laser product per FDA IEC60825-1 requirements, ensuring safe usage in industrial and commercial settings. Its rugged design has undergone harsh environmental testing in accordance with IEC 60068-2-11 and GR-63-CORE for durability in varied conditions.

Manufactured in the Philippines within an ISO 9001 certified facility, the product guarantees quality and performance consistency. It is ideal for applications in telecommunications, data centers, enterprise networking, industrial automation, and other fiber optic communication systems requiring robust and precise optical transmission.

Supports data rates up to 50,000 kbps over 2 km multimode fiber. LC duplex rectangular connector compatible with SFP MSA standards. Integrated 850 nm VCSEL transmitter with 5 ns rise and 3 ns fall times. Low power dissipation with single 3.3 V power supply.

Complies with IEC 61000-4-2 EMI/EMC standards for industrial environments. Hot pluggable design for quick replacement and installation. Class 1 FDA IEC laser safety certified product. Ruggedized testing to IEC 60068-2-11 and GR-63-CORE standards.

Manufactured in an ISO 9001 certified factory in the Philippines. Discover more products in our Fibre Optic Transceivers section at EnvMart for industrial, laboratory, and telecommunications applications.
