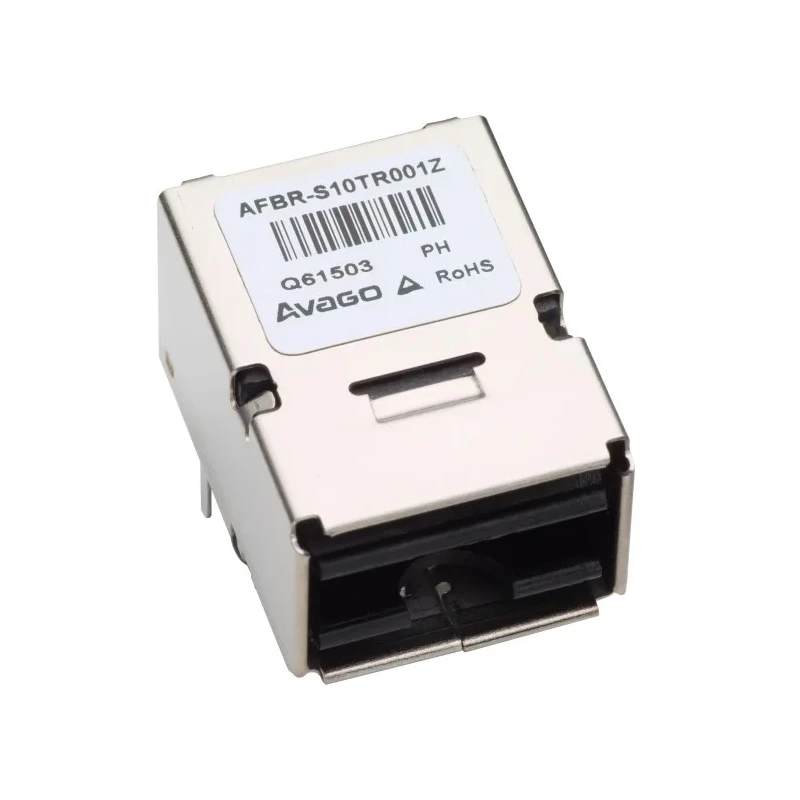

Broadcom Fibre Optic Transceiver 650 nm 8-Pin Compact and Keyed Versatile-Link Duplex Connector AFBR-S10TR001Z
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Temperature range | -40°C to +85°C |
| Model | AFBR-S10TR001Z |
| Connector Type | Compact and Keyed Versatile-Link Duplex |
| Standards/Approvals | EN 60825-1:52007, UL File: E173874, RoHS |
| Number of Pins | 8 |
| Output Signal Type | Analogue |
| Connector Shape | Rectangular |
| Wavelength of Peak Sensitivity | 650nm |
| Transmitter Typical Rise Time | 40ns |
| Transmitter Typical Fall Time | 100ns |
| Minimum Fibre Size | 1mm |
| Standards/ApprovalsEN 60825-1 | 52007, UL File: E173874, RoHS |
| EN 60825-1 | 52007, UL File: E173874, RoHS |
Key Features
- Provides a compact form factor with a design similar to RJ-45 connectors.
- Features a compact and keyed Versatile-Link duplex connector for secure connections.
- Operates at a wavelength of 650 nm with an 8-pin configuration.
- Includes an integrated LED for system self-test and monitoring.
- Offers high electromagnetic interference (EMI) robustness and fast slew rates.
- Supports temperature range from -40°C to +85°C for reliable operation.
- Designed for use with 1mm plastic optical fiber (POF) for optical arc flash sensing.
Product Description
Broadcom AFBR-S10TR001Z is a fibre optic transceiver designed for industrial and electronic component applications. Featuring a compact and keyed Versatile-Link duplex connector, it ensures reliable and secure optical connections. The device operates at a wavelength of 650 nm and includes an 8-pin configuration for analogue output signal applications. Its compact footprint, resembling an RJ-45 connector, allows easy integration into systems requiring optical communications.
The transceiver incorporates an integrated LED to facilitate system self-test applications and a receiver with an integrated photodiode and analog amplifier that provides a voltage output. This design offers high EMI robustness and a fast slew rate suitable for demanding environments.
Engineered to support operation within a wide temperature range from -40°C to +85°C, the device ensures consistent performance under various conditions. It is compatible with 1mm plastic optical fiber (POF) enabling implementation of optical arc flash sensors in safety and monitoring systems.
The AFBR-S10TR001Z meets rigorous safety and environmental standards including EN 60825-1:52007, UL File: E173874, and RoHS compliance, affirming its suitability for industrial applications.
Compact form factor similar to RJ-45 connector. Keyed Versatile-Link duplex connector for secure interfacing. Integrated LED for system self-test. Analogue output signal with high EMI robustness. Operating temperature from -40°C to +85°C.
Compliant with EN 60825-1, UL, and RoHS standards. Designed for 1mm plastic optical fiber (POF).
This fibre optic transceiver is an ideal solution for industrial, manufacturing, electronic, and communication system applications, enabling high reliability optical data transmission and sensor system integration. Explore more fibre optic components and transceivers at EnvMart to meet your system requirements.
Explore more products in our Fibre Optic Transceivers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating temperature range for the Broadcom AFBR-S10TR001Z transceiver is from -40°C to +85°C.
It features a compact and keyed Versatile-Link duplex connector, which ensures secure optical connections.
The transceiver operates at a wavelength of 650 nm, suitable for optical communications.
This model has an 8-pin configuration, designed for analogue output signal applications.
It provides an analogue output signal, which is suitable for various applications in electronic systems.
The connector is rectangular in shape, designed to fit compactly in systems requiring optical communications.
It complies with EN 60825-1:52007, UL File: E173874, and RoHS standards, affirming its suitability for industrial applications.
The minimum fibre size compatible with the AFBR-S10TR001Z is 1mm, specifically designed for plastic optical fiber (POF).
The typical rise time of the transmitter is 40 ns, which supports fast data transmission.
It is designed for industrial, manufacturing, electronic, and communication system applications, enabling reliable optical data transmission.
Yes, it includes an integrated LED for system self-test and monitoring, facilitating easier diagnostics.
The typical fall time of the transmitter is 100 ns, which contributes to its performance in high-speed applications.
