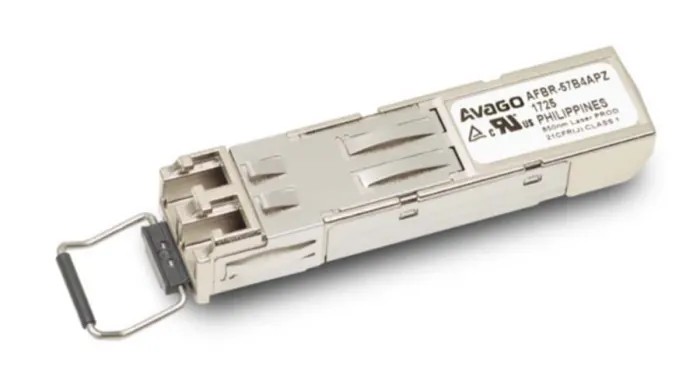

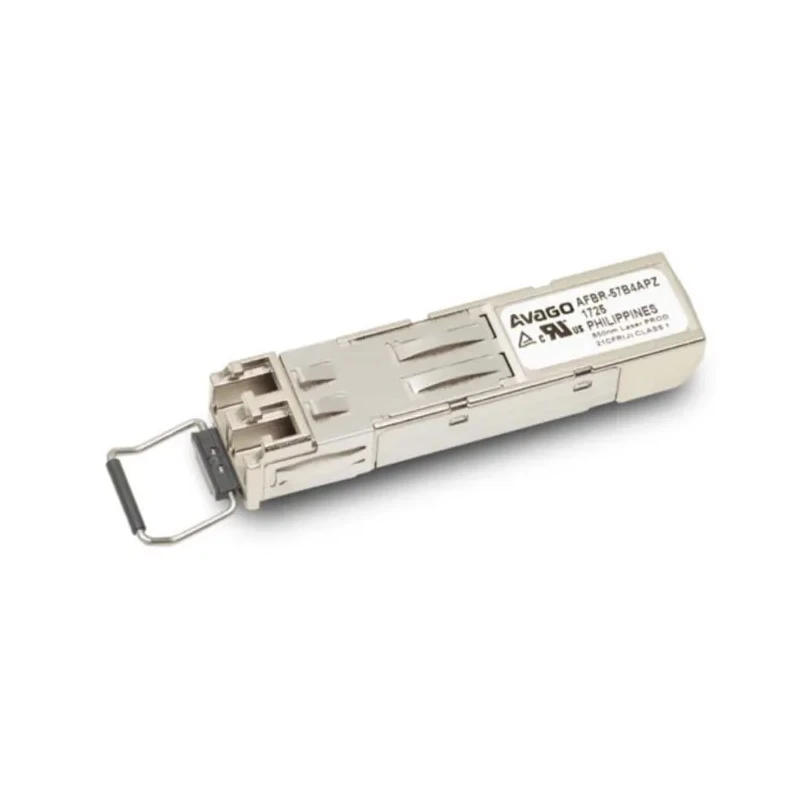

Broadcom Fibre Optic Transceiver SFP Connector 50 MBd 850 nm 20-Pin AFBR-57B4APZ
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | Broadcom |
| Height | 13mm |
| Length | 13.8mm |
| Model | AFBR-57B4APZ |
| Connector Type | SFP |
| Width | 57.8mm |
| Mount Type | Surface |
| Series | AFBR |
| Standards/Approvals | RoHS, UL |
| Number of Pins | 20 |
| Maximum Data Rate | 50MBd |
| Output Signal Type | LVTTL |
| Connector Shape | Rectangular |
| Wavelength of Peak Sensitivity | 850nm |
| Transmitter Typical Rise Time | 0.5ns |
| Transmitter Typical Fall Time | 0.3ns |
| Maximum Data Transmission Distance | 2km |
Key Features
- Supports maximum data rate of 50 MBd for efficient data transfer.
- Equipped with a rectangular SFP connector designed for surface mount applications.
- Maximum data transmission distance is up to 2 kilometers with multimode fiber.
- Features integrated 850 nm VCSEL transmitter with low power dissipation.
- Hot pluggable SFP connector compatible with industry MSA specifications.
- Operates within the wide temperature range of - 40°C to +85°C for reliable performance.
- Constructed with lead-free and RoHS compliant materials ensuring eco-friendly usage.
- Provides real-time monitoring of module temperature, transmitter voltage, and receiver power via serial interface.
Product Description
Broadcom AFBR-57B4APZ is a high-performance fibre optic transceiver designed for data communications over multimode fibers. It enables system designers to implement data transmission from DC to 50 MBaud over distances up to 2 km using 62.5 µm/125 µm multimode fibers. This transceiver features an LC duplex connector and meets RoHS and UL standards, manufactured in an ISO 9001 certified facility in the Philippines.
This surface mount SFP module incorporates an 850 nm VCSEL transmitter with typical rise and fall times of 0.5 ns and 0.3 ns respectively, along with an integrated PIN diode and digital receiver. It supports a single 3.3 V power supply and outputs LVTTL signal type.
The device is hot pluggable and compliant with SFP MSA specifications, allowing for easy integration and replacement in optical communication systems. The module's low current draw and power dissipation enhance energy efficiency, while integrated electronics provide excellent EMI and EMC behavior.
Real-time diagnostics are accessible through the 2-wire serial interface (SFF-8472 MSA), offering status information such as module temperature, transmitter voltage, and receiver average input power. The transceiver is classified as Class 1 by FDA and IEC 60825-1 laser safety standards.
Supports data rates from DC to 50 MBd over multimode fiber. Surface mount SFP connector with 20 pins for secure system integration. Compatible with LC duplex connectors and industry-standard form factor. Operating temperature range from -40°C to 85°C for harsh environments.
Lead-free and RoHS compliant, supporting environmentally responsible manufacturing. Manufactured in ISO 9001 certified facility ensuring consistent quality. Low power dissipation improves system efficiency and reduces heat generation.
Real-time monitoring for system diagnostics and performance validation. Compact size (57.8mm x 13.8mm x 13mm) ideal for dense installations.
This Broadcom fibre optic transceiver is suitable for a wide range of industrial, telecommunications, networking, and data center applications requiring reliable, high-speed optical data transmission over multimode fiber links. EnvMart offers this industry-grade solution for enhanced communication infrastructure.
Explore more products in our Fibre Optic Transceivers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum data rate supported by this model is 50 MBd.
It can transmit data over a maximum distance of up to 2 kilometers using multimode fiber.
This model features a rectangular SFP connector with 20 pins, designed for surface mount applications.
The transmitter operates at a peak sensitivity wavelength of 850 nm.
It operates within a wide temperature range of -40°C to +85°C, suitable for harsh environments.
The dimensions of this unit are 57.8 mm in length, 13.8 mm in width, and 13 mm in height.
It requires a single 3.3 V power supply to operate.
It is suitable for a wide range of industrial, telecommunications, networking, and data center applications requiring high-speed optical data transmission.
Yes, it provides real-time monitoring of module temperature, transmitter voltage, and receiver power via a serial interface.
Yes, it meets RoHS and UL standards and is manufactured in an ISO 9001 certified facility.
It outputs an LVTTL signal type, suitable for various applications.
The typical rise time is 0.5 ns and the typical fall time is 0.3 ns.
