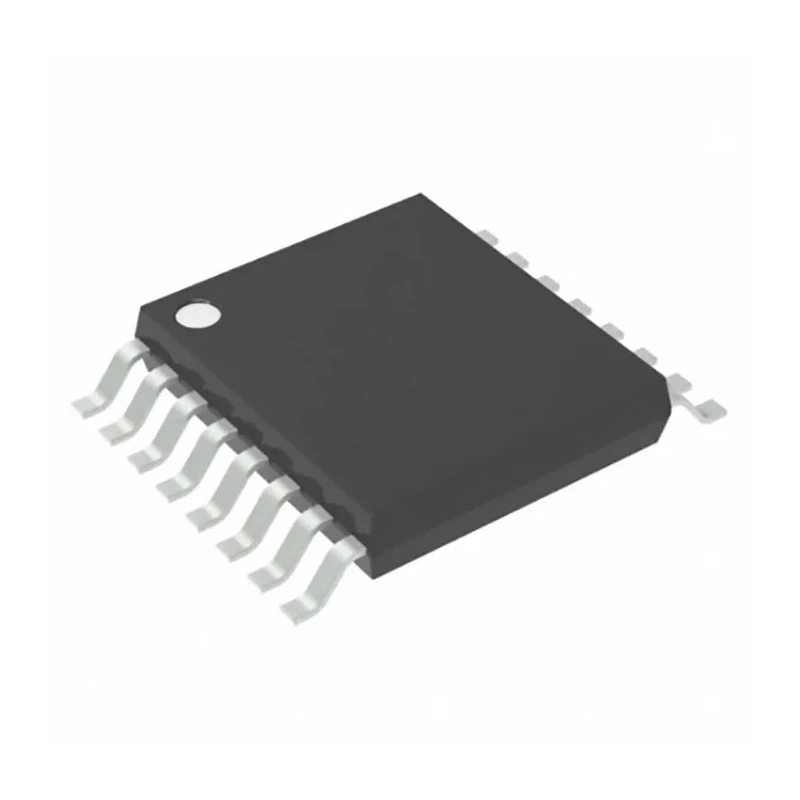

DiodesZetex LED Driver IC 5V Input, 60 V Maximum Output Voltage, 18 mA Output Current, 16-Pin TSSOP Package AL8871QT16E-13

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex LED Driver IC 5V Input, 60 V Maximum Output Voltage, 18 mA Output Current, 16-Pin TSSOP Package AL8871QT16E-13

Name: DiodesZetex LED Driver IC 5V Input, 60 V Maximum Output Voltage, 18 mA Output Current, 16-Pin TSSOP Package AL8871QT16E-13
Brand: DiodesZetex
SKU: 165695
Price: 2.02 USD
Availability: InStock



Category LED Driver IC Brand DiodesZetex Condition New

Specifications

Country of Origin	China
Brand	DiodesZetex
Height	1.1mm
Length	3mm
Model	AL8871QT16E-13
Width	2.95mm
Mount Type	Through Hole
Series	AL8871
Output Current	18mA
Maximum Operating Temperature	125°C
Package Type	TSSOP
Minimum Operating Temperature	-40°C
Maximum Output Power	1.2W
Input Voltage	5, 60V
Maximum Output Voltage	65V
Number of Pins	16
Automotive Standard	AEC-Q100
Minimum Output Voltage	-0.3V
Dimming Operation	PWM

Key Features

The device supports PWM dimming operation for precise brightness control.
It delivers a maximum output power of 1.2W suitable for various LED applications.
Designed for through-hole mounting with a compact 16-pin TSSOP package.
Operating temperature range from -40°C to 125°C ensuring durability in harsh environments.
Series AL8871 controller enables high-accuracy current control with buck-boost topology.
Minimum output voltage as low as -0.3V with high-frequency operation up to 1MHz.
Compliant with automotive standard AEC-Q100 for automotive applications.
Compact dimensions with length 3mm, width 2.95mm, and height 1.1mm.

Product Description

DiodesZetex AL8871QT16E-13 LED Driver IC is a high-efficiency buck-boost controller designed for LED lighting components. It operates on a 5V DC input voltage and supports output voltages up to 60 V with an output current of 18 mA. Packaged in a 16-pin TSSOP form factor, this device facilitates through-hole mounting and provides precise PWM dimming control for adjustable LED brightness.

This IC enables accurate current regulation through a high-current buck-boost topology, making it suitable for series connected LED applications. The device handles operating temperatures ranging from -40°C to 125°C, ensuring reliable performance in industrial, automotive, and outdoor environments.

The AL8871 series controller is capable of operating at frequencies up to 1 MHz, delivering high-frequency PWM control and analog dimming ranges from 10% to 100%. Its compact size with dimensions of 3 mm length, 2.95 mm width, and 1.1 mm height is ideal for space-constrained PCB designs.

Meeting the automotive standard AEC-Q100, the AL8871QT16E-13 is well suited for automotive lighting systems and robust industrial LED driver applications. Made in China, it ensures consistent production quality and performance.

Supports PWM dimming operation for fine LED brightness control. Maximum output power of 1.2W for versatile LED loads. Through-hole mount type for easy PCB integration. Wide operating temperature range from -40°C to 125°C.

Compact 16-pin TSSOP package with 3 mm x 2.95 mm x 1.1 mm dimensions. High frequency operation up to 1 MHz for efficient dimming. Automotive grade compliant with AEC-Q100 specifications. High-accuracy current control for series LED applications.

This LED Driver IC is ideal for industrial electronics, automotive lighting, and commercial LED lighting applications that demand high efficiency and precise current regulation. Discover the full range of LED Driver ICs in the Electronics Components category on EnvMart.
