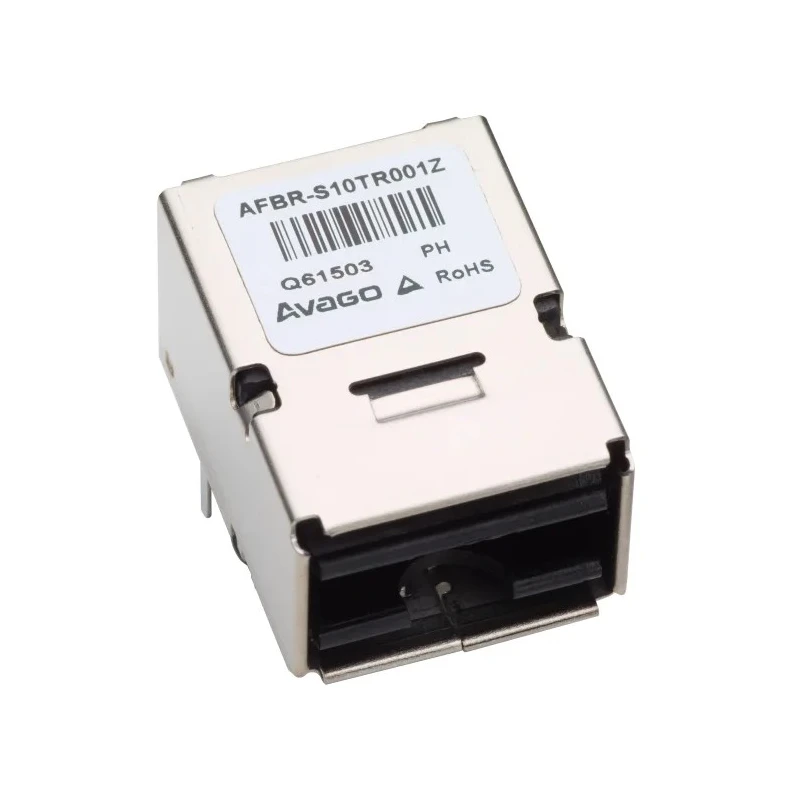

Broadcom Fibre Optic Transceiver Compact and Keyed Versatile-Link Duplex Connector 650 nm 8-Pin AFBR-S10TR001Z
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Temperature range | -40°C to +85°C |
| Model | AFBR-S10TR001Z |
| Connector Type | Compact and Keyed Versatile-Link Duplex |
| Standards/Approvals | EN 60825-1:52007, UL File: E173874, RoHS |
| Number of Pins | 8 |
| Output Signal Type | Analogue |
| Connector Shape | Rectangular |
| Wavelength of Peak Sensitivity | 650nm |
| Transmitter Typical Rise Time | 40ns |
| Transmitter Typical Fall Time | 100ns |
| Minimum Fibre Size | 1mm |
| Standards/ApprovalsEN 60825-1 | 52007, UL File: E173874, RoHS |
| EN 60825-1 | 52007, UL File: E173874, RoHS |
Key Features
- The transceiver features a rectangular connector shape ideal for system integration.
- It provides a transmitter typical rise time of 40 nanoseconds and fall time of 100 nanoseconds.
- Designed for use with 1 mm plastic optical fiber for optical arc flash sensing applications.
- Operates reliably within a temperature range from -40°C to +85°C.
- Compatible with existing simplex Versatile-Link connectors enhancing interchangeability.
- Includes integrated LED for system self-test and a receiver with analog output amplifier.
- Highly robust against electromagnetic interference with a fast slew rate for signal integrity.
Product Description
Broadcom AFBR-S10TR001Z is a high-performance fibre optic transceiver featuring a compact and keyed Versatile-Link duplex connector system designed for 650 nm wavelength and 8-pin configuration. This device supports analogue output signal type and is specifically engineered to provide system designers the capability to implement optical arc flash sensors using 1 mm plastic optical fiber (POF), making it ideal for demanding electronic and industrial applications.
The transceiver has a rectangular connector shape that ensures easy integration into electronic systems with a form factor comparable to the RJ-45 connector for excellent space efficiency. It boasts a transmitter typical rise time of 40 nanoseconds and a fall time of 100 nanoseconds, allowing for fast and reliable signal transmission.
Equipped with an integrated LED, it supports system self-test applications, while the receiver includes an integrated photodiode and analog amplifier delivering voltage output. The design emphasizes high EMI robustness, ensuring operational integrity in electrically noisy environments, and a fast slew rate to preserve signal quality.
This product operates reliably within a broad temperature range from -40°C to +85°C, suitable for industrial, manufacturing, electronic components, and power connector sectors. Rectangular connector shape for easy system integration.
Compact and keyed Versatile-Link duplex connector compatible with simplex connectors. Integrated LED for system self-test support. Includes receiver with integrated photodiode and analog amplifier. High electromagnetic interference robustness with fast signal slew rate.
Operates from -40°C to +85°C temperature range for industrial applications. Compliant with EN 60825-1:52007, UL File E173874, and RoHS standards.
This Broadcom fibre optic transceiver is ideal for use in electronic components, power connectors, displays, optoelectronics, and other industrial applications requiring precise and robust optical data transmission.
Explore our extensive range of fibre optic components in the Electronics & Electricals category at EnvMart for professional-grade parts that ensure reliability and performance in critical systems.
Explore more products in our Fibre Optic Transceivers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates reliably within a temperature range from -40°C to +85°C.
The peak sensitivity wavelength is 650 nm.
The connector features 8 pins.
It provides an analogue output signal type.
The transmitter has a typical rise time of 40 nanoseconds and a fall time of 100 nanoseconds.
It uses a compact and keyed Versatile-Link duplex connector.
Yes, it is compatible with existing simplex Versatile-Link connectors, enhancing interchangeability.
It complies with EN 60825-1:52007, UL File E173874, and RoHS standards.
The minimum fibre size required is 1 mm.
It includes an integrated LED that supports system self-test applications.
It is designed to be highly robust against electromagnetic interference, ensuring operational integrity in noisy environments.
The connector shape is rectangular, which ensures easy integration into electronic systems.
