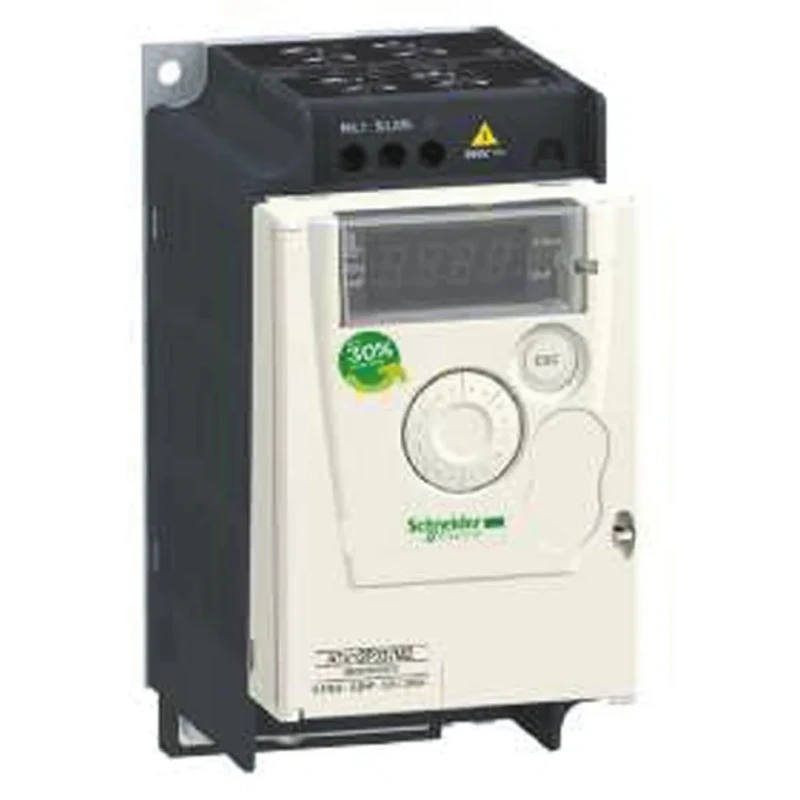

Schneider Electric Variable Speed Drive 750 W 3 Phase Cabinet Mount IP20 ATV12P075M3
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Model | ATV12P075M3 |
| IP Rating | IP20 |
| Drive Type | Variable Speed |
| Mount Type | Cabinet |
| Overall Length | 72mm |
| Series | ATV 12 |
| Overall Width | 72mm |
| Power Rating | 750W |
| Maximum Operating Temperature | 40°C |
| Output Frequency | 400Hz |
| Minimum Operating Temperature | -10°C |
| Number of Phases | 3 |
| Maximum Output Current | 4.2A |
| Standards/Approvals | CE |
| Maximum Supply Voltage | 240V |
| Overall Depth | 102.2mm |
| Minimum Supply Voltage | 200V |
| Better World Claim | Saves Energy |
| Compatible Motor Type | Asynchronous Motor |
Key Features
- Compact size with overall dimensions 72mm width, 72mm length, and 102.2mm depth.
- IP20 rated for indoor dust protection.
- Supports variable frequency range from 0.5 to 400 Hz for flexible motor operation.
- Maximum output current capacity of 4.2 A.
- Operates on supply voltage range from 200 V to 240 V with built-in Modbus communication protocol.
- Compatible exclusively with asynchronous motors.
- Designed to withstand ambient temperatures from -10°C to 40°C.
- Mount type is cabinet suitable for simple machine and commercial equipment applications.
Product Description
Schneider Electric ATV12P075M3 Variable Speed Drive is a reliable industrial inverter drive designed for controlling three-phase asynchronous motors in commercial and industrial applications. Rated at 750 W power and 3 phase supply, the drive operates with an input voltage range between 200 V and 240 V and delivers a maximum output current of 4.2 A. Its compact cabinet mount design with dimensions 72 mm (W) x 72 mm (L) x 102.2 mm (D) allows ease of installation in confined control panels.
The drive supports a variable frequency from 0.5 Hz to 400 Hz, allowing precise motor speed control and enhanced operational flexibility. It features an IP20 ingress protection rating, suitable for indoor environments with protection against dust and solid objects. Operating temperature ranges from -10°C to 40°C ensure functionality across a range of working conditions.
Equipped with Modbus communication protocol, integration with automated control systems is simplified, enabling efficient monitoring and control. This model is specifically compatible with asynchronous motor types, commonly used in conveyors, pumps, fans, packaging machines, and material handling equipment in manufacturing and HVAC industries.
The ATV12P075M3 offers eco-friendly operation certified under Green Premium compliance, promoting energy savings and sustainability. Compliance with CE directives confirms conformity to stringent safety and performance standards required in industrial environments.
Designed for ease of maintenance, the drive can be installed alone or alongside other drives in multi-drive setups and is compatible with SoMove software which facilitates configuration backup and replication, reducing downtime during servicing. Typical industrial use cases include conveyor control, pump speed regulation, extractor motors, access barriers, and treadmill systems.
Package contains one unit of the Schneider Electric ATV12P075M3 Variable Speed Drive. This product originates from Indonesia and comes in new condition, dedicated to delivering consistent and efficient motor control solutions.
Explore EnvMart’s extensive selection of Variable Speed Drives and Schneider Electric automation equipment for comprehensive industrial automation needs. Compact cabinet mount design for easy installation. Variable frequency from 0.5 to 400 Hz for precise motor control.
Modbus communication for integration into control systems. Supports 3-phase asynchronous motors with 4.2 A continuous output current. Eco-friendly with Green Premium energy saving certification.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ATV12P075M3 has a power rating of 750 W.
It has a maximum output current capacity of 4.2 A.
This model supports a variable frequency range from 0.5 Hz to 400 Hz.
It operates within an ambient temperature range of -10°C to 40°C.
The drive is compatible exclusively with asynchronous motors.
The overall dimensions are 72 mm in width, 72 mm in length, and 102.2 mm in depth.
It has an IP20 rating, providing protection against dust and solid objects for indoor use.
It operates on a supply voltage range from 200 V to 240 V.
It features a built-in Modbus communication protocol for integration with control systems.
This model complies with CE directives, ensuring conformity to safety and performance standards.
It is designed for cabinet mounting, making it suitable for installation in control panels.
Typical applications include conveyor control, pump speed regulation, and extractor motors in industrial settings.
