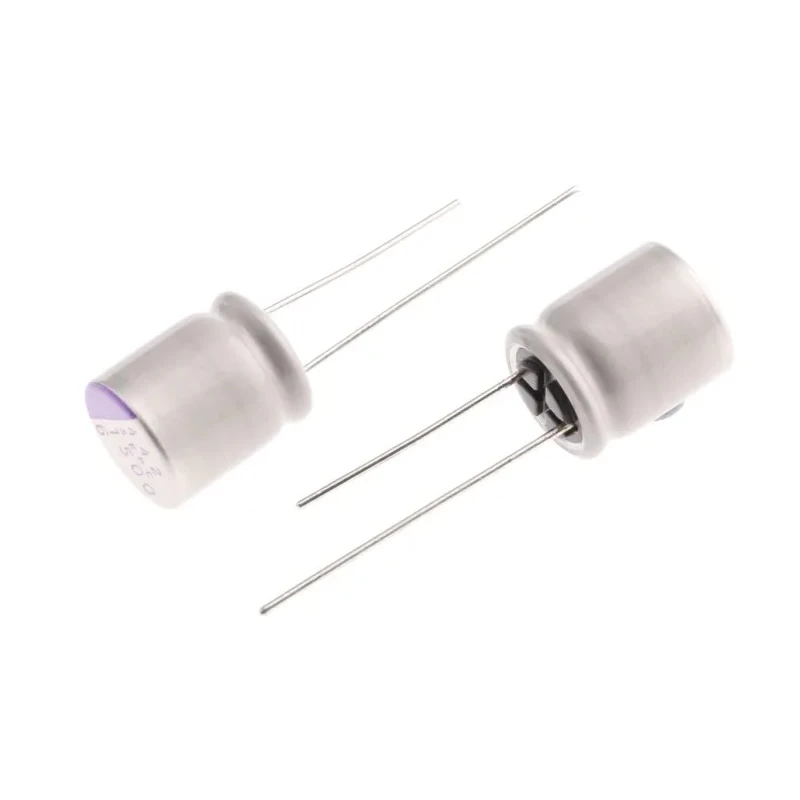

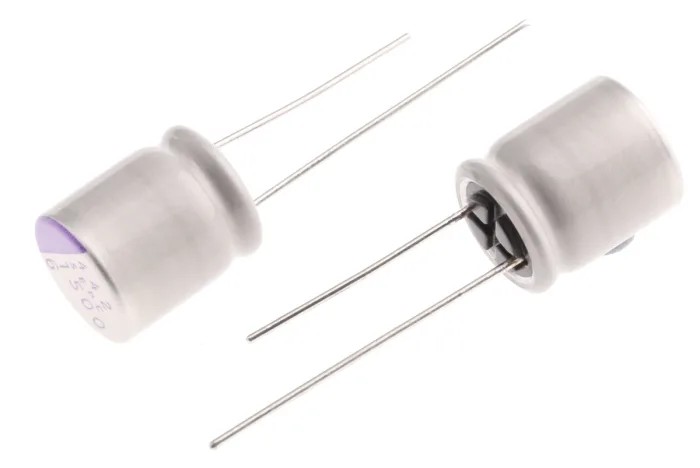

Panasonic 1.5 mF Polymer Capacitor 6.3V DC Through Hole SEPC Series 6SEPC1500M

Panasonic 6SEPC1500M polymer capacitor features a capacitance of 1.5 mF and operates at 6.3V DC voltage with a through-hole mounting configuration. This SEPC series capacitor is constructed with a solid aluminium body and a high conductivity polymer, making it a solid electrolyte capacitor that offers ultra-low Equivalent Series Resistance (ESR) ranging from 5 mΩ to 24 mΩ. It supports capacitances up to 2700 µF and has a dissipation factor of only 0.1%.

Designed to operate between temperatures of -55°C and 105°C, this capacitor guarantees reliable performance for up to 5000 hours at its maximum operating temperature. Its design incorporates a radial lead type with a 5 mm lead pitch, enabling straightforward PCB through-hole mounting.

With a high ripple current capacity of 5.56 A and a low leakage current of 1.89 mA, this Panasonic polymer capacitor is ideal for demanding industrial infrastructure including industrial PCs, motor drivers, measuring instruments, power supplies, security cameras, and inverters. It also addresses use cases in automotive infotainment and comfort accessories, ICT applications such as base stations, SSDs, and data centers, as well as home appliances including air conditioners and home information equipment.

Additional advantages include a 0.1% dissipation factor for high efficiency, polarization for directional current applications, and an environmentally friendly halogen free design. The capacitor's series SEPC underscores its excellent noise reduction capabilities and long lifespan reliability.

Panasonic 6SEPC1500M is ideal for use in industrial, automotive, ICT, and commercial environments that demand stable and long-lasting capacitor performance under challenging electrical and thermal conditions.

Constructed with a solid aluminium body and high conductivity polymer. Super low Equivalent Series Resistance (ESR) between 5 mΩ and 24 mΩ. Capacitance available up to 2700 µF with low dissipation factor of 0.1%. Operates reliably from -55°C up to 105°C with a lifespan of 5000 hours.

Designed for high ripple current of 5.56 A and low leakage current of 1.89 mA. Polarized capacitor suitable for industrial PC, motor driver, and power supply applications. Radial lead type with 5 mm lead pitch for easy PCB mounting.

Halogen free construction ensures environmental compliance. Widely used in automotive infotainment, ICT applications, and home appliances. Series designation is SEPC, which emphasizes long life and excellent noise reduction.
