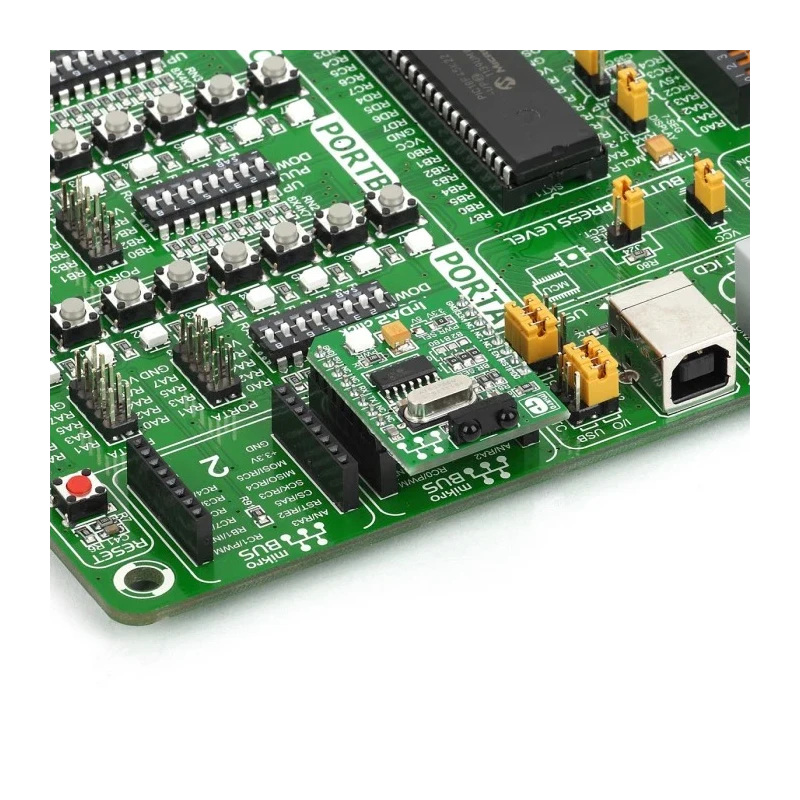

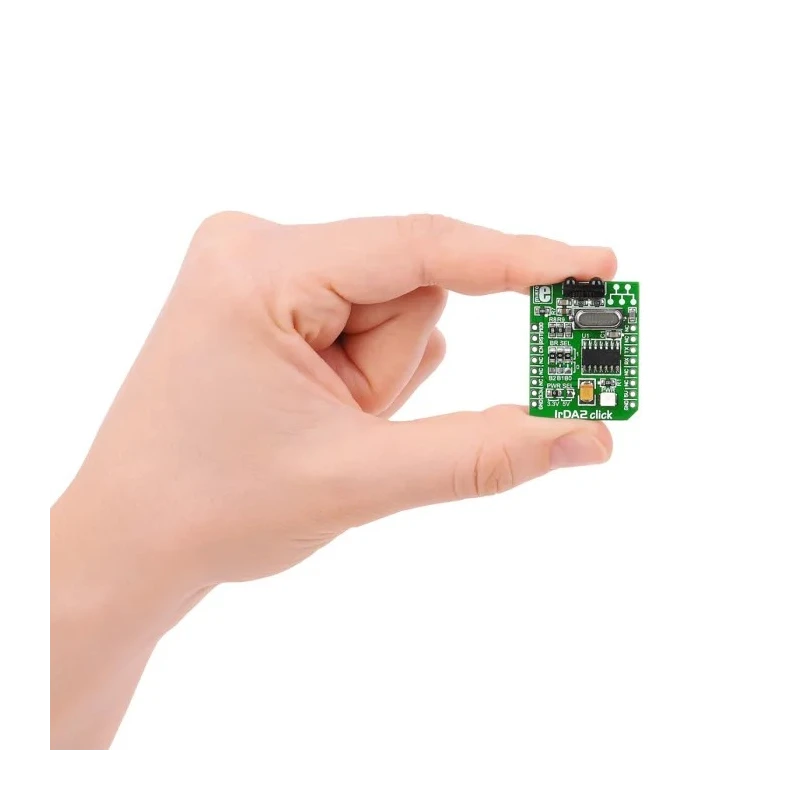

MikroElektronika Communication & Wireless Development Kit MCP2120, TFDU4101 for MikroBus with UART GPIO Interface MIKROE-1195

The MikroElektronika MIKROE-1195 Communication & Wireless Development Kit is a specialized mikroBUS add-on designed to provide infrared data communication capabilities to embedded applications. It integrates the Vishay TFDU4101 Infrared Transceiver Module along with the Microchip MCP2120 Infrared Encoder/Decoder, supporting the IrDA standard to enable data transfer rates of 115.2 kbaud over distances exceeding one meter.

The development kit offers selectable baud rates through three onboard jumpers, with 115200 baud as the default speed. It interfaces via UART and GPIO on the mikroBUS socket and supports both 3.3 V and 5 V power supplies, ensuring compatibility with various host devices.

Designed with low power consumption in mind, this compact board measures only 28.6 by 25.4 millimeters, making it suitable for integration into a wide range of electronic systems, including Raspberry Pi, Arduino, and other embedded platforms. The header strips are pre-soldered to enable easy connectivity without additional assembly.

This communication tool complies with industry standards such as RoHS, CE, and WEE, affirming its environmental and safety certifications. It serves a vital role in industrial, laboratory, educational, and embedded system development environments by facilitating wireless infrared data communications.

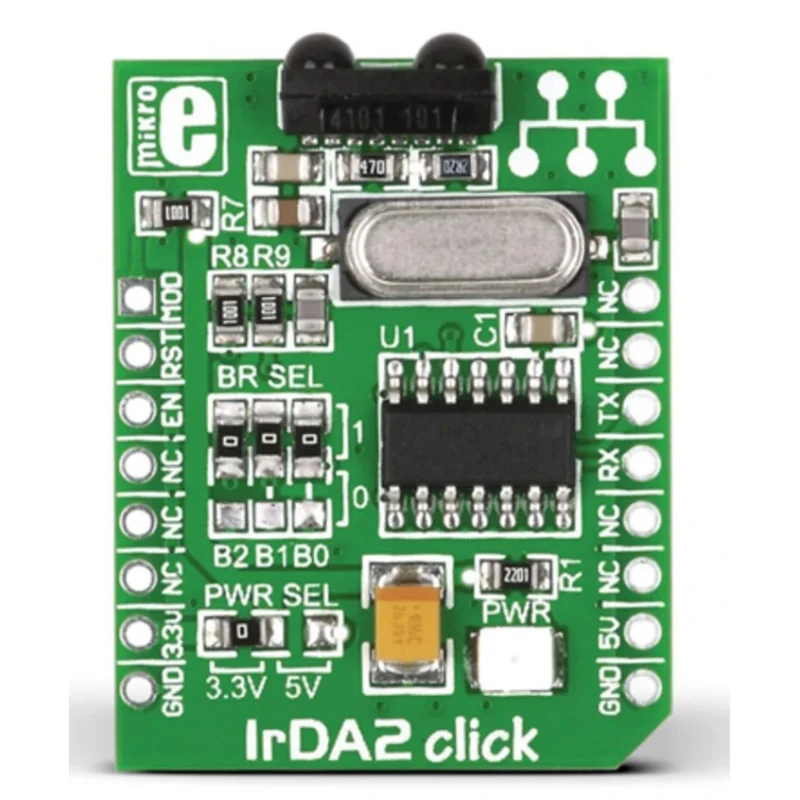

Features Vishay TFDU4101 Infrared Transceiver Module and Microchip MCP2120 Infrared Encoder/Decoder. Supports IrDA standard communication at 115.2 kbaud with over one meter range. Baud rate selection configurable by three onboard jumpers with default 115200 baud.

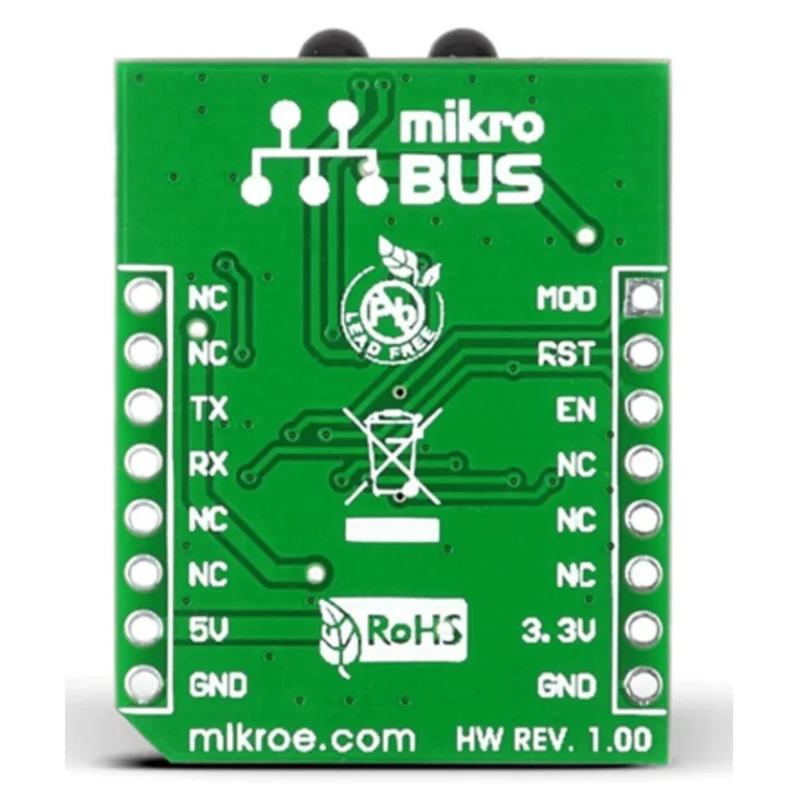

Supports UART interface on mikroBUS socket with GPIO signals. Operates on 3.3 V default or 5 V power supply via mikroBUS socket. Compact board size of 28.6 x 25.4 mm for easy integration. Low power consumption ideal for embedded communication projects.

Includes header strips pre-soldered to facilitate quick installation. Certified RoHS, CE, and WEE compliant to meet industrial standards.

Overall, the MIKROE-1195 development kit is an essential solution for developers looking to implement reliable infrared communication in their embedded systems with minimal power usage and straightforward integration.
