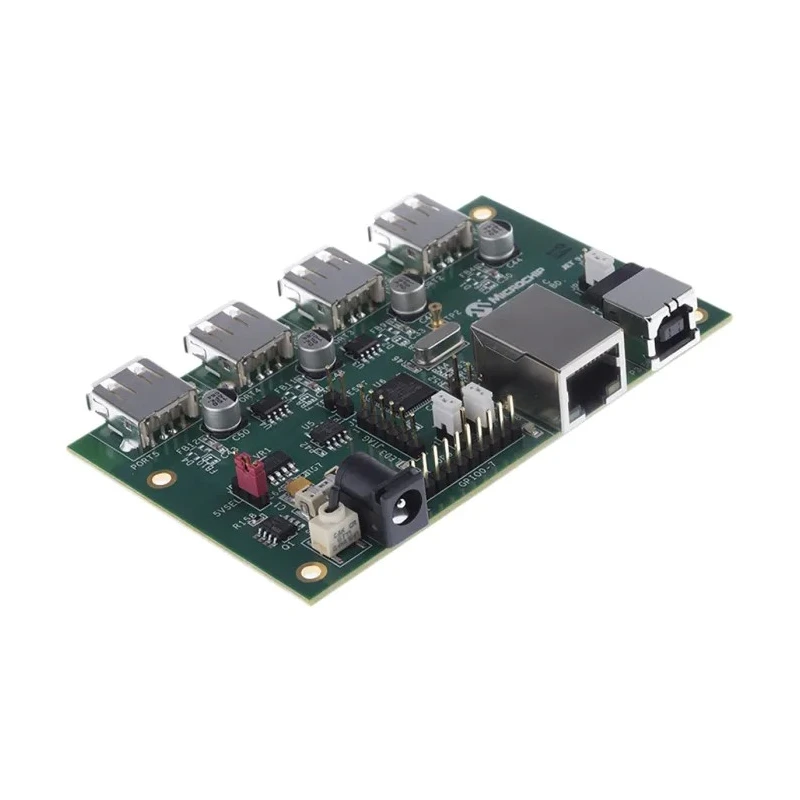

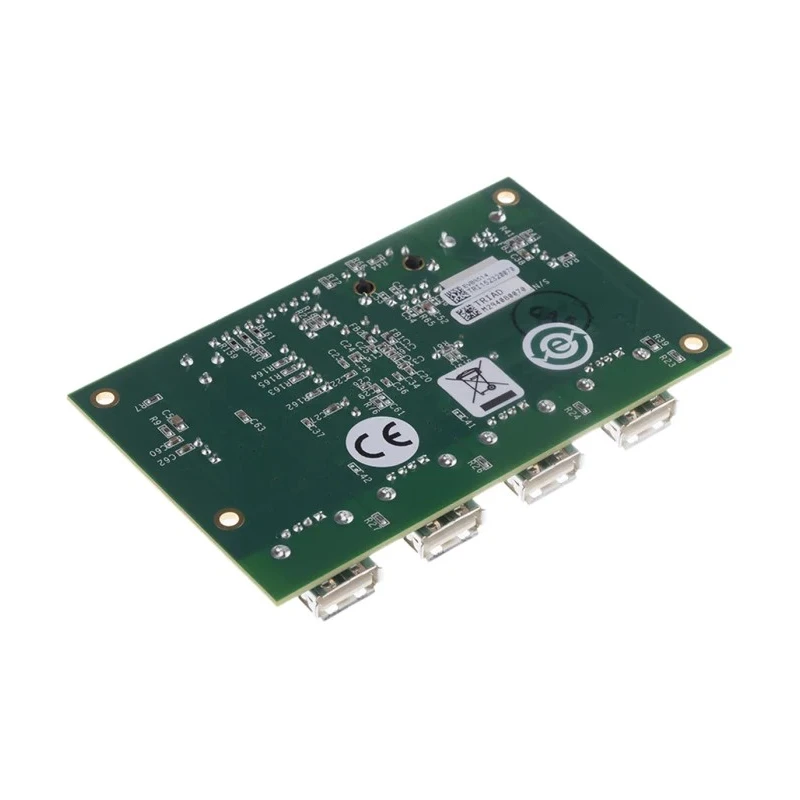

Microchip High-Speed USB 2.0 to 10/100 Ethernet Hub Customer Evaluation Board with LAN9513 EVB9514
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Microchip |
| Model | EVB9514 |
| Interface Type | USB |
| Standards/Approvals | RoHS |
| Kit Classification | Evaluation Kit |
| Featured Device | 14, LAN9513 |
| Kit Name | High-Speed USB 2.0 to 10/100 Ethernet Hub Customer Eval Board |
Key Features
- This evaluation board incorporates a LAN9514 device for USB 2.0 hub and Ethernet controller features.
- USB connectivity is provided via one type B upstream and four type A downstream USB connectors.
- An integrated RJ-45 Ethernet jack with magnetics and LEDs supports 10/100 Mbps networking.
- The board supports both bus-powered and self-powered operation modes for flexibility.
- RoHS compliant and designed for communication and wireless development use.
- Ideal for embedded system designers or network interface evaluation.
Product Description
Microchip EVB9514 is an advanced high-speed USB 2.0 to 10/100 Ethernet hub customer evaluation board featuring the LAN9514 device. It integrates a four port USB 2.0 hub alongside a 10/100 Ethernet controller, allowing users to evaluate interface performance for embedded and communication applications.
This evaluation kit provides a type B upstream USB connector for host interface and four type A downstream USB connectors to connect multiple USB devices. It features an RJ-45 Ethernet jack with integrated magnetics and status LEDs to enable reliable network connectivity at speeds of 10 or 100 Mbps.
The EVB9514 supports both bus-powered and self-powered modes, making it adaptable for different power environments. Its RoHS compliance ensures environmentally friendly design standards.
Applications include wireless development, embedded system integration, network interface prototyping, and communications hardware evaluation. This evaluation board simplifies the development process for engineers requiring USB hub and Ethernet controller integration.
This evaluation board incorporates a LAN9514 device for USB 2.0 hub and Ethernet controller features. USB connectivity is provided via one type B upstream and four type A downstream USB connectors. An integrated RJ-45 Ethernet jack with magnetics and LEDs supports 10/100 Mbps networking.
The board supports both bus-powered and self-powered operation modes for flexibility. RoHS compliant and designed for communication and wireless development use. Ideal for embedded system designers or network interface evaluation.
Explore more Communication & Wireless Development Tools and related Microchip evaluation boards at EnvMart for comprehensive development solutions.
Explore more products in our Development Tools & Single Board Computers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The EVB9514 evaluation board functions as a high-speed USB 2.0 to 10/100 Ethernet hub, integrating a USB hub and Ethernet controller for evaluating interface performance in embedded and communication applications.
The board supports networking at speeds of 10 or 100 Mbps through an integrated RJ-45 Ethernet jack with magnetics and status LEDs.
This model supports both bus-powered and self-powered operation modes, providing flexibility for different power environments.
Yes, the evaluation board is RoHS compliant, adhering to environmentally friendly design standards.
The country of origin for the EVB9514 evaluation board is the United States.
The board incorporates a LAN9514 device, which combines USB hub and Ethernet controller functionalities.
It is designed for applications including wireless development, embedded system integration, network interface prototyping, and communications hardware evaluation.
The EVB9514 meets RoHS standards, ensuring compliance with environmental regulations.
The evaluation kit includes the board itself, which features USB connectivity and Ethernet capabilities, but specific accessories are not detailed in the provided information.
The model number of this evaluation board is EVB9514.
The EVB9514 uses USB as its interface type, facilitating connections with various USB devices.
