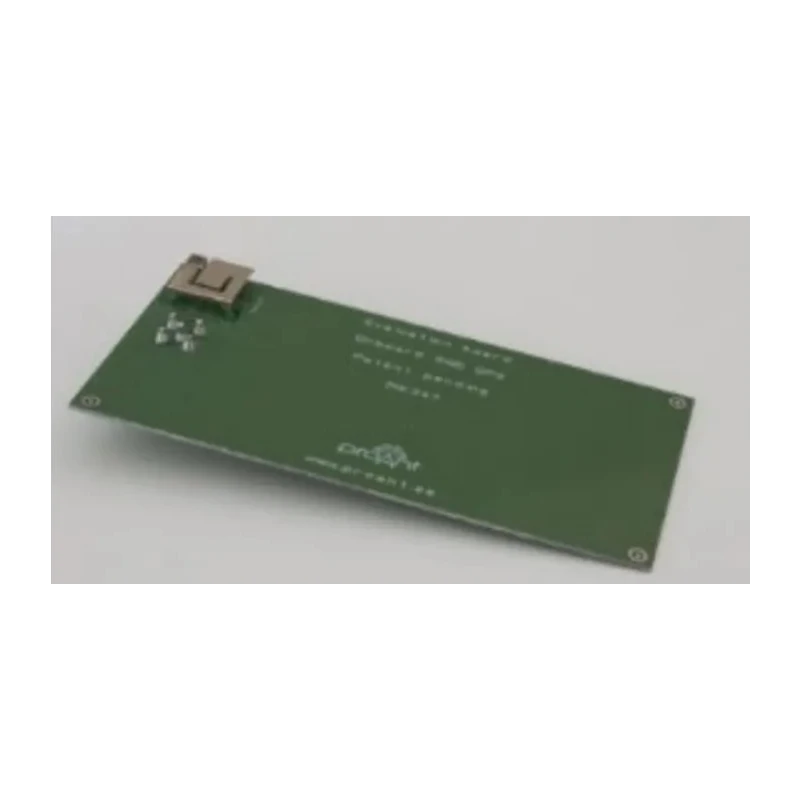

Abracon OnBoard GNSS/GPS SMD Evaluation Board PRO-EB-453 with 1.602 Hz Frequency for GPS/GLONASS/BeiDou/Galileo Applications

The Abracon PRO-EB-453 is a dedicated evaluation board designed for engineering assessment of OnBoard Surface-Mount Device (SMD) GNSS/GPS antennas. With a precise operating frequency of up to 1.602 GHz, it supports a broad spectrum of satellite navigation systems, including GNSS, GPS, GLONASS, BeiDou, and Galileo. The board enables developers to test and calibrate antenna performance effectively.

This evaluation board features mixed linear polarization to improve signal reception accuracy, combined with a peak gain of 0.7 dBi, ensuring a stable and reliable antenna performance during development phases. It is specifically crafted for the PRO-OB-430 SMD antenna, providing a seamless interface for thorough signal testing and characterization.

Engineers use this board in conjunction with a vector network analyser (VNA), connecting through the provided SMA port to evaluate antenna responses within the 1.560 to 1.602 GHz frequency band. This makes it an essential tool for designing and validating modern communication, navigation, and location-based systems.

The evaluation board finds practical applications in industrial electronics, communication technology development, aerospace navigation systems, and academic research in GNSS technologies. It is particularly suited for testing and improving the integration of high-performance onboard antennas in compact electronic devices.

The evaluation board supports GNSS, GPS, GLONASS, BeiDou, and Galileo satellites. Frequency range of 1.560 to 1.602 GHz covers typical GNSS bands. Peak gain of 0.7 dBi ensures effective signal reception. Mixed linear polarization enhances antenna performance.

SMA connector facilitates easy connection to VNAs for calibration and measurement. Explore Abracon's wide range of communication and wireless development tools and evaluation boards at EnvMart for robust industrial and research applications.
