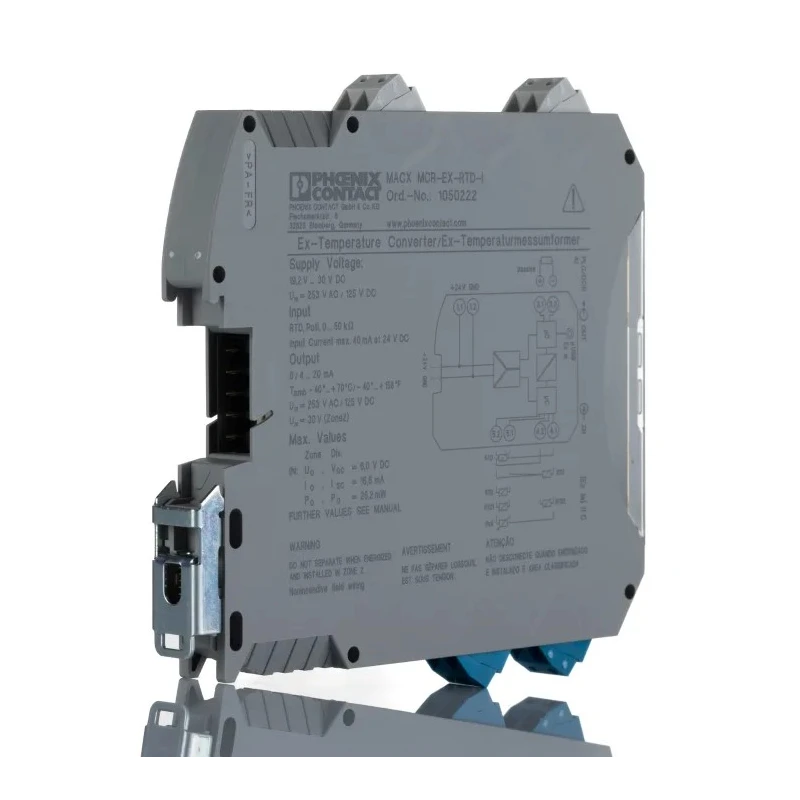

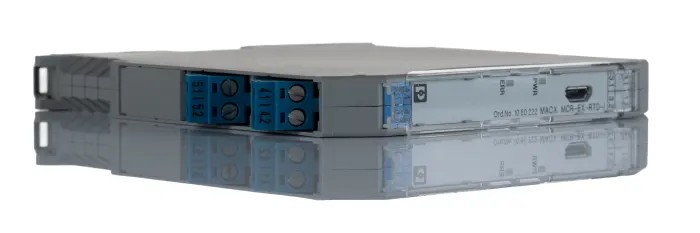

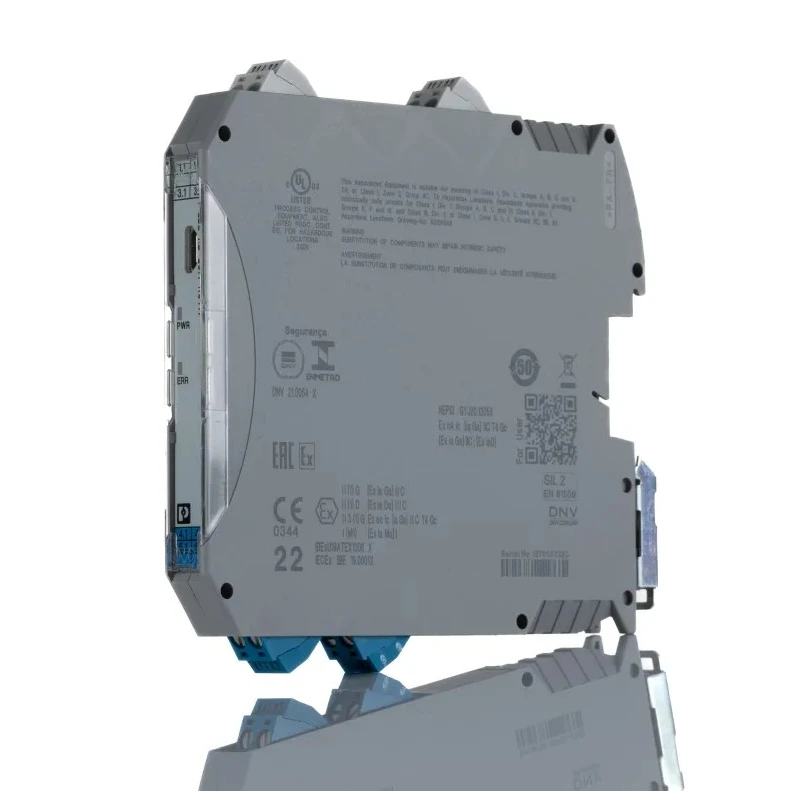

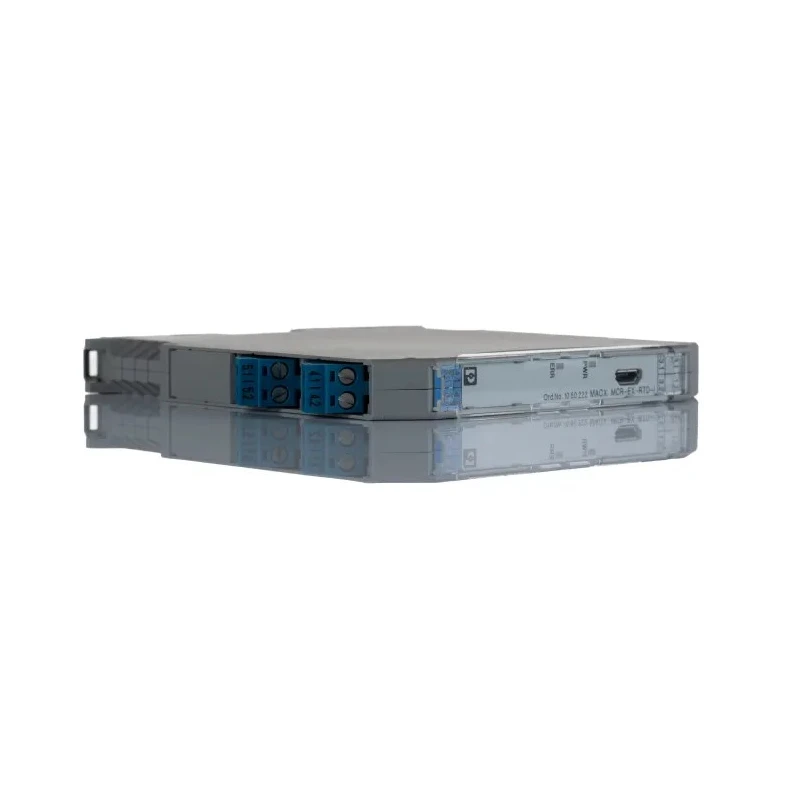

Phoenix Contact Signal Conditioner, ATEX, 1 Channel, DIN Rail Mount, 24V DC, IP20, Model 1050222
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Phoenix Contact |
| Model | 1050222 |
| IP Rating | IP20 |
| Mount Type | DIN Rail |
| Series | MACX MCR |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number Of Channels | 1 |
| Supply Voltage | 24V dc |
| Hazardous Area Certification | ATEX |
| TEMPERATURE SIGNAL CONVERTERBrand | ABB |
Key Features
- Supports temperature transducer types Pt, Ni, and Cu with 2, 3, or 4 wires.
- Features PA66 flame-retardant housing to reduce fire spread risk.
- IP20 rated providing touch-safe protection against electric shock.
- Equipped with green and red LED indicators for easy diagnostics.
- Offers insulation with peak isolation voltage of 375V enhancing workplace safety.
- Designed for hazardous areas compliant with ATEX certification.
- Suitable for conductors sized 0.2 to 2.5 mm² (AWG 24 to 14).
- Operates reliably within a temperature range of -40°C to 70°C.
Product Description
Phoenix Contact 1050222 Signal Conditioner ATEX is a robust industrial signal conditioner featuring a single channel and DIN rail mounting suitable for automation and electrical applications in hazardous locations. It operates at 24V DC supply voltage and is designed to safely transmit and convert information from temperature measuring devices in explosive atmospheres using a low-current signal (up to 20mA), ensuring secure data transfer to non-hazardous zone machinery.
The device supports temperature sensors made of platinum, nickel, and copper with configurations of 2, 3, or 4 wires, offering versatile application options across various industrial setups. Its PA66 housing provides flame retardancy to minimize fire hazards, while an IP20 rating guarantees protection against direct touch, enhancing operator safety.
Diagnostic functionality is facilitated by green and red LED indicators, allowing users to easily monitor operational status and troubleshoot issues. The signal conditioner offers insulation protection with a peak isolation voltage of 375V, compliant with IEC/EN 61010-1 and IEC/EN 60079-11 standards, safeguarding equipment and personnel from surges and overvoltages.
Engineered for compliance with ATEX hazardous area certification, it is ideal for use in industrial, laboratory, construction, HVAC, manufacturing, and water treatment environments that demand rigorous safety and reliability standards. The device accepts conductors sized between 0.2 and 2.5 mm², corresponding to American Wire Gauge (AWG) 24 to 14, enabling flexible wiring options.
This model belongs to the MACX MCR series and is manufactured in Germany, reflecting high-quality industrial standards. Its operational temperature range spans from -40°C to 70°C, facilitating deployment in varied environmental conditions.
Supports temperature transducer types Pt, Ni, and Cu with 2, 3, or 4 wire configurations. PA66 housing offers flame-retardant properties for enhanced safety. IP20 approval ensures touch-safe operation with no electric shock risk.
LED indicators aid in quick and efficient diagnostics. Insulation withstands surges and overvoltage up to 375V peak isolation voltage. ATEX certification for hazardous area use. Compatible with conductor sizes 0.2 to 2.5 mm² (AWG 24 to 14).
Wide operating temperature range from -40°C to 70°C. Explore EnvMart's comprehensive range of signal conditioners and isolators to find suitable industrial electrical automation components for your needs.
Explore more products in our Zener & Galvanic Barriers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this model is 70°C.
It supports temperature transducer types Pt, Ni, and Cu, with configurations of 2, 3, or 4 wires.
This signal conditioner operates at a supply voltage of 24V DC.
The model has an IP20 rating, providing touch-safe protection against electric shock.
It features a single channel for signal conditioning.
The insulation withstands surges and overvoltages up to a peak isolation voltage of 375V.
The operating temperature range spans from -40°C to 70°C.
It is designed for DIN rail mounting.
The terminal type is screw, allowing for secure connections.
This signal conditioner is certified for hazardous areas under ATEX standards.
The signal conditioner is manufactured in Germany.
It belongs to the MACX MCR series.
