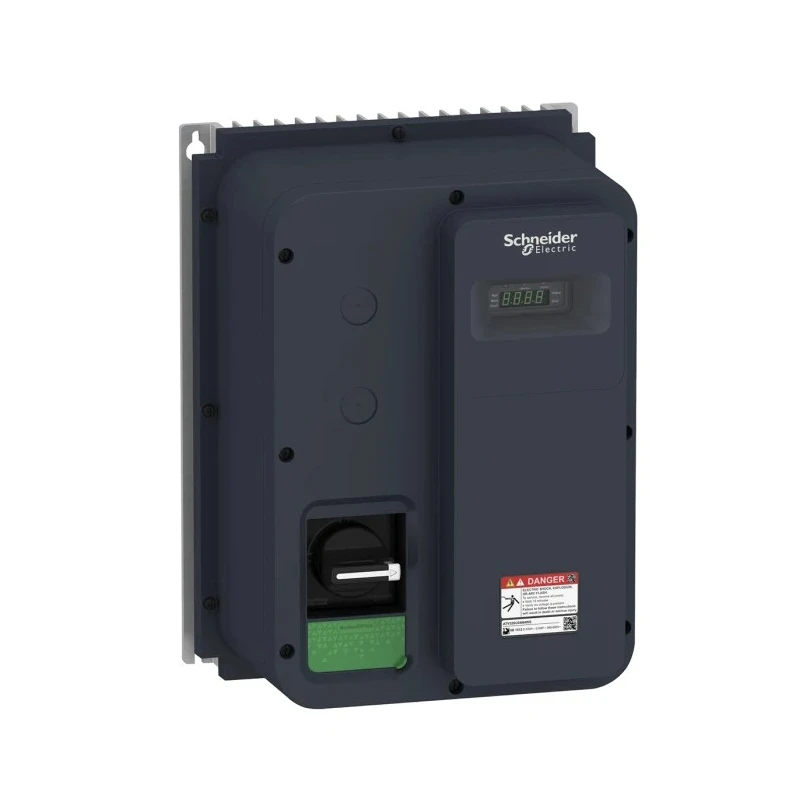

Schneider Electric Variable Speed Drive, 750 W, 3 Phase, Altivar Series ATV320U07N4WS

This Altivar Machine ATV320 model supports asynchronous, synchronous, and AC motors, accommodating supply voltages from 380 V to 500 V AC and delivering a maximum output current of 2.3 A. Its wall-mount design with IP65 ingress protection ensures resistance against dust and chemical pollutants, making it ideal for harsh industrial environments.

The drive features integrated EMC C2 filtering and is fanless, reducing maintenance requirements while enhancing durability. Advanced communication interfaces including Modbus and CANopen protocols accessible through a front RJ45 port facilitate seamless integration into industrial automation systems. Its embedded safety functions are configurable via SoMove software, helping machines comply with stringent safety standards.

Compact dimensions (250 mm length, 200 mm width, and 340 mm depth) and a weight of 6.3 kg enable easy installation alone or in multi-drive configurations. Designed for applications such as conveyors, carton packers, gantry cranes, woodworking machinery, metal processing, fans, and Food & Beverage production lines, the drive conforms to international standards including CSA, UL, EN/IEC, and REACH certifications.

This variable speed drive is part of Schneider Electric’s Altivar range, focusing on energy efficiency and sustainability with the Better World Claim of saving energy. It supports advanced automation capabilities and offers open loop motor control for dynamic accuracy even at low speeds. The ATV320 series integrates with EcoStruxure Machine software, providing a unified environment for machine logic, motion control, HMI, and networking needs.

Designed for asynchronous, synchronous, and AC motor compatibility. Wall-mounted installation with IP65 protection for harsh industrial environments. Embedded EMC C2 filter enables compliance with electromagnetic compatibility standards.

Advanced communication options such as EtherNet/IP, Profinet, Profibus, CANopen, and DeviceNet supported. Includes 5 safety functions configurable via SoMove software. Compact and lightweight design facilitates easy integration into various manufacturing settings.

Conforms to multiple international standards and certifications including UL and CSA. Highly suitable for diverse industrial applications including material handling and packaging. Energy efficient operation aligned with Schneider Electric’s Better World initiative.

Explore the wide range of automation and control solutions available from Schneider Electric on EnvMart for reliable and efficient motor control systems.
