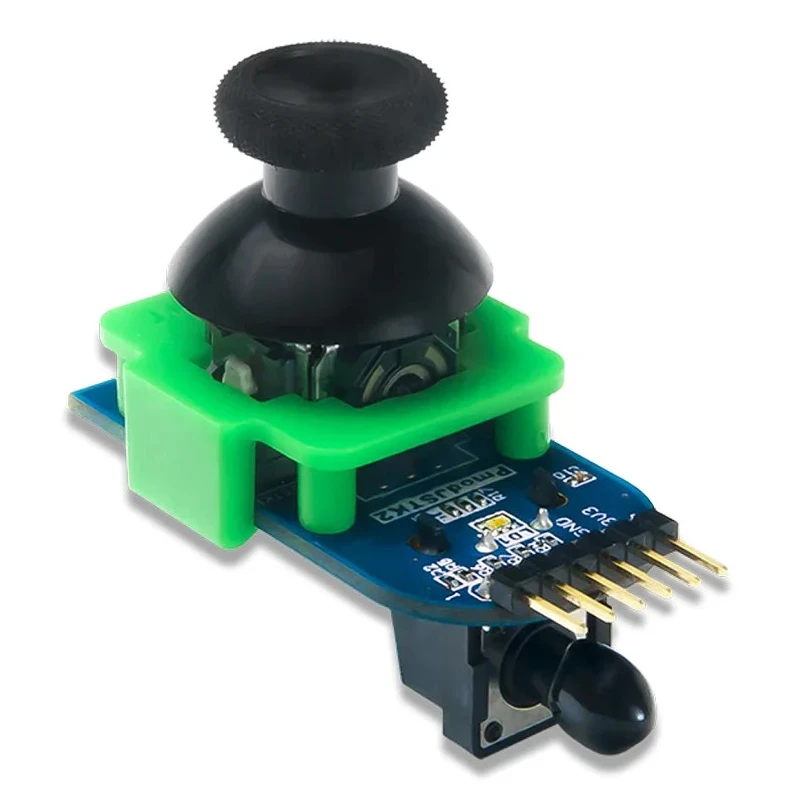

Digilent Pmod JSTK2 2-Axis Joystick Development Kit with Center and Trigger Pushbuttons, RGB LED, SPI Interface 410-330

Digilent 410-330 Joystick Development Kit is a versatile HMI development tool designed for embedded system integration and controller interfaces. It features a factory-calibrated Pmod JSTK2 two-axis resistive joystick that provides precise control with a maximum angle of 25 degrees per axis and 10-bit resolution, making it ideal for compact user input applications.

The joystick includes a center pushbutton and an additional trigger-style pushbutton, offering multiple control inputs for interactive devices. A programmable 24-bit colour RGB LED enables customized visual feedback, programmable through the embedded PIC16F1618 microcontroller.

Communication with host systems is implemented via an SPI bus interface, adhering to the Pmod Interface Specification Type 2. This ensures compatibility with a wide range of microcontroller and FPGA development boards, enhancing expansion and prototyping capabilities.

Constructed with a plastic motion limiter, this development kit ensures durability by protecting the joystick's mechanical movement from excessive travel, improving longevity and reliability. It is suitable for use in industrial controls, robotics, gaming control input, laboratory instrumentation, and educational electronics prototyping.

This Development Kit is an essential component for professionals and hobbyists working on human-machine interfaces and embedded input solutions, offering precision and programmability in a compact form factor.

The kit includes a Pmod JSTK2 2-axis joystick capable of 25° maximum angle with 10-bit resolution per axis. A programmable 24-bit colour RGB LED enhances functionality and user feedback. The embedded PIC16F1618 microcontroller supports operation and processing.

Host communication is via an SPI bus, compliant with the Pmod Interface Specification Type 2. The product comes with a plastic motion limiter to protect the joystick mechanics. Explore more human-machine interface development tools in the Electronics & Electricals category at EnvMart to enhance your embedded system projects.
