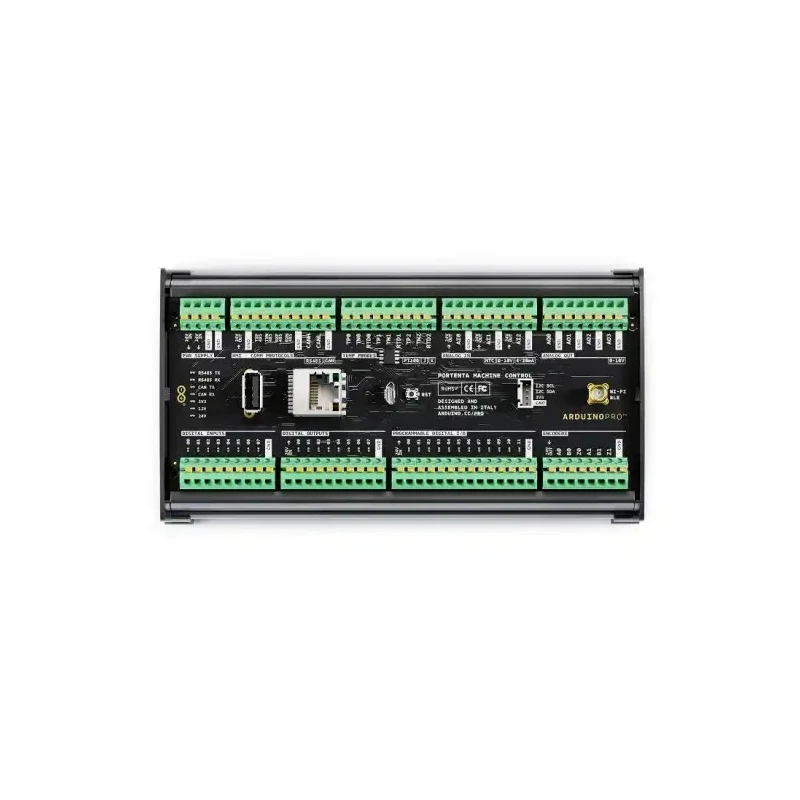

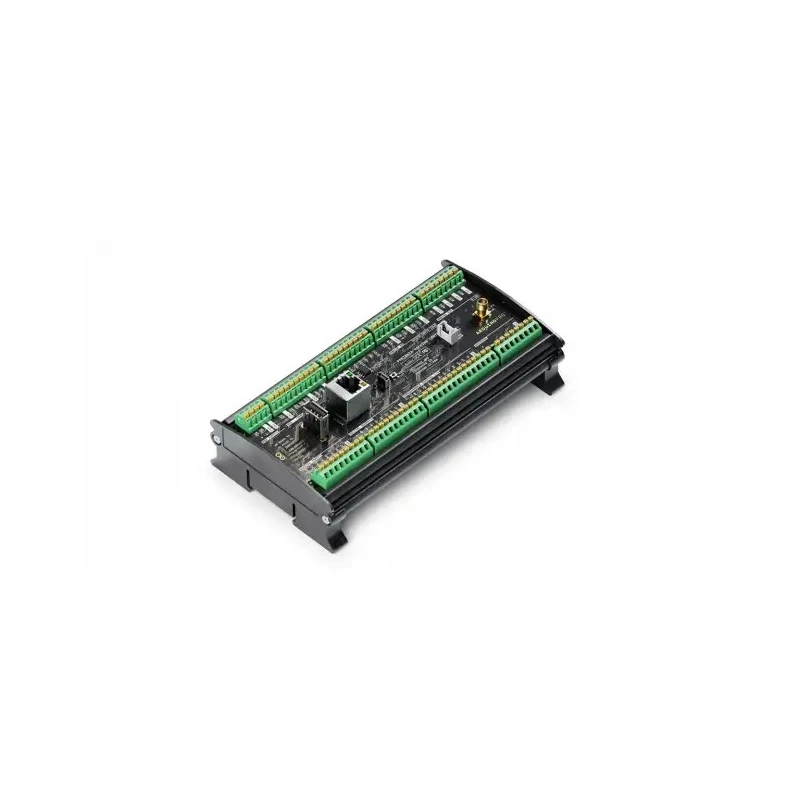

Arduino 24V Portenta Machine Control Development Kit STM32H747XI Italy AKX00032

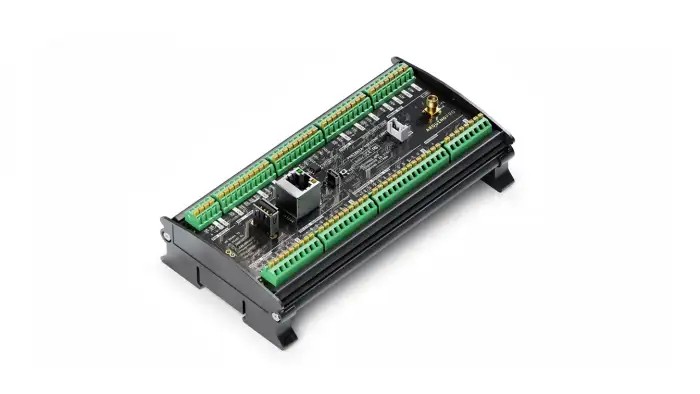

Arduino AKX00032 24V Portenta Machine Control Development Kit powered by STM32H747XI processor offers robust machine control capabilities with extensive input/output options and versatile communication interfaces. Designed for industrial and automation applications, it enables precise control of high-power relays, signal sampling, temperature measurement, and encoder feedback.

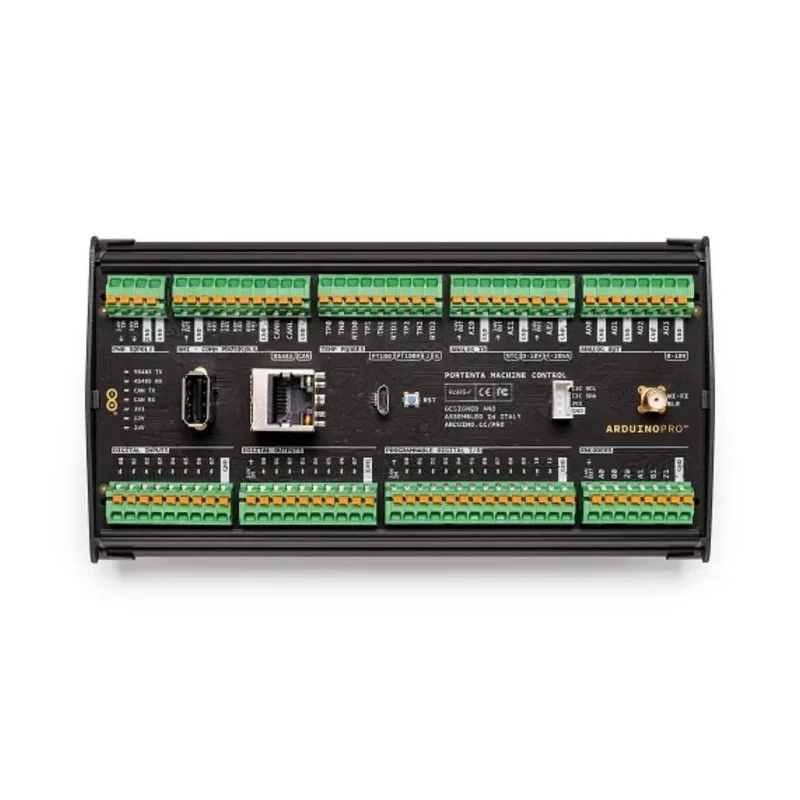

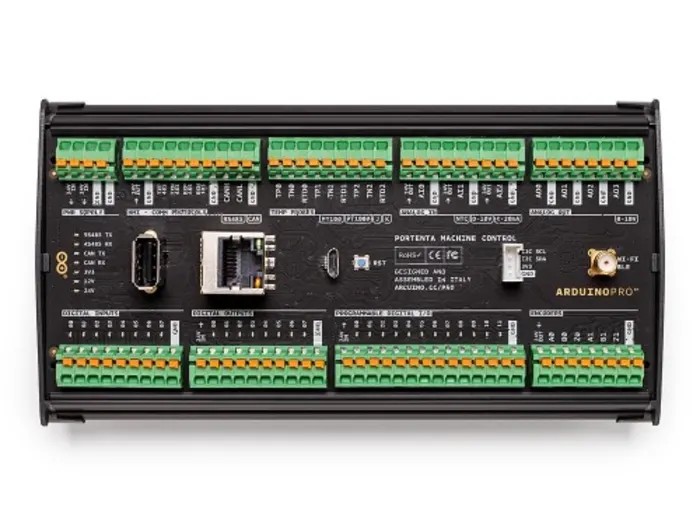

The board features a 24V DC output voltage allowing direct drive of industrial-grade relays and actuators. It includes 8 digital input channels supporting 0-24V signals suitable for integrating switches and sensors. Additionally, the 8 digital output channels enable control over multiple devices concurrently.

Analogue input and output channels (3 and 4 respectively) provide precise signal measurement and control, ideal for process automation requiring variable signal levels. Twelve programmable digital channels offer flexible configuration to adapt control logic to specific application needs.

Temperature measurement capability is enhanced with three dedicated channels compatible with various temperature probes, useful in manufacturing processes requiring temperature monitoring. Two encoder channels named ABZ support detailed rotational position sensing for motor control or feedback systems.

Communication is comprehensive including high-speed CAN and I2C for robust industrial networking, Ethernet for wired connectivity, and configurable RS232/RS422/RS485 serial interfaces to ensure compatibility with legacy and modern equipment. The presence of USB full-speed A connector and half-speed micro USB connector facilitate diverse device interfacing options.

An onboard RTC (Real Time Clock) with minimum 48 hours memory retention ensures reliable timing operations even during power outages. Wireless communication is supported via Wi-Fi and Bluetooth Low Energy (BLE) featuring an SMA connector for antenna attachment, expanding connectivity options.

This development kit is ideal for applications such as food processing automation, glass bottle manufacturing, packaging machinery control, and other industrial automation scenarios demanding accurate, versatile machine control solutions.

Operates at 24V output voltage for high power relay control. Contains multiple digital and analogue input/output channels for versatile signal handling. Supports temperature sensing and encoder feedback for precise monitoring.

Offers extensive wired and wireless communication interfaces for industrial integration. Equipped with RTC for reliable time tracking during power interruptions. Explore the range of Arduino Development Kits and tools available at EnvMart for efficient, reliable industrial automation projects.
