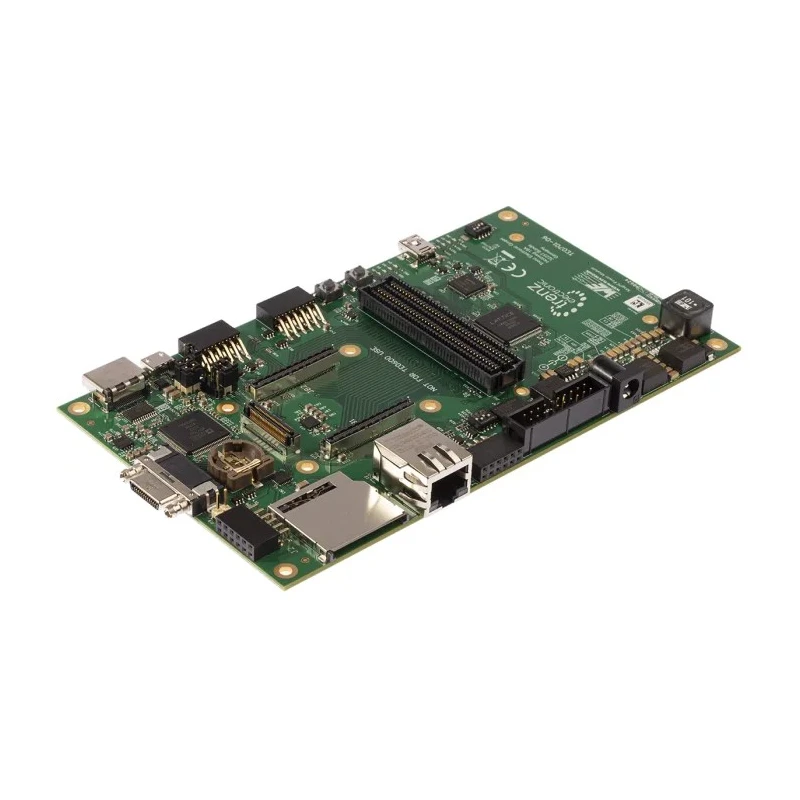

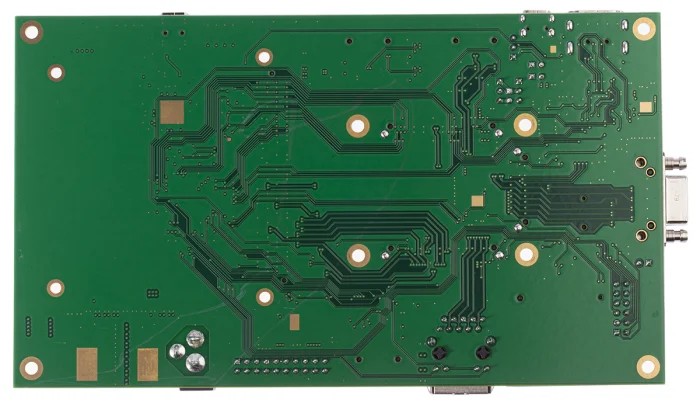

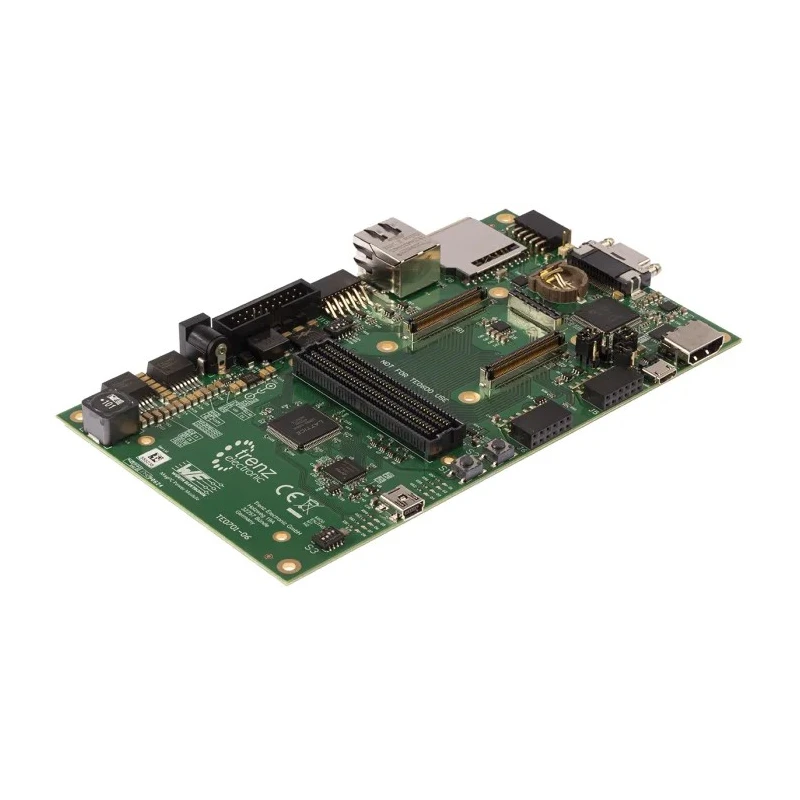

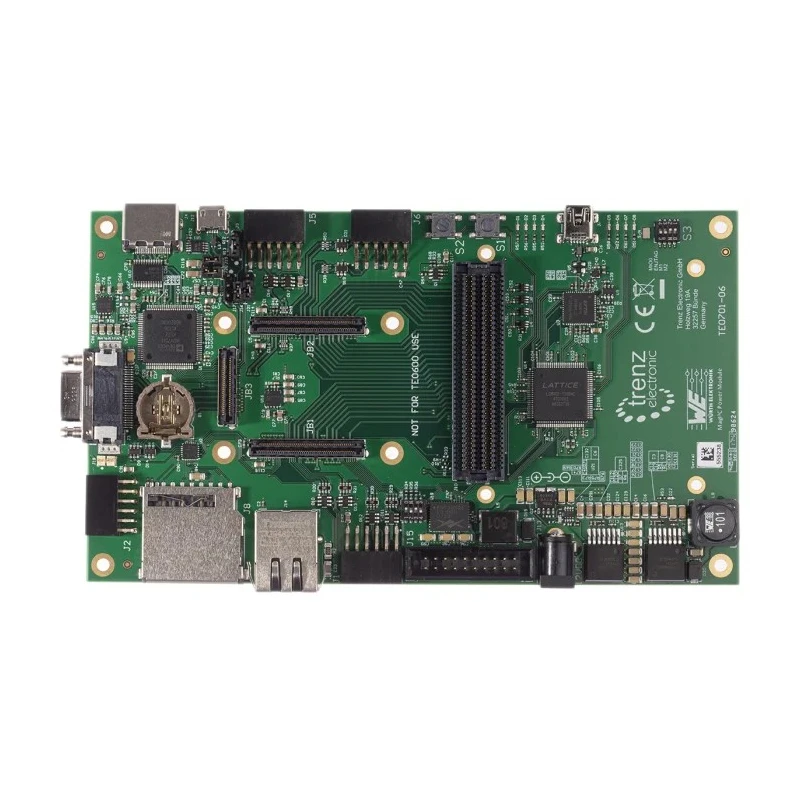

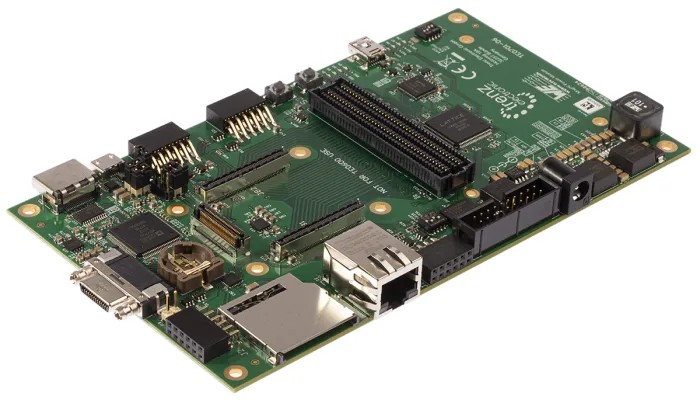

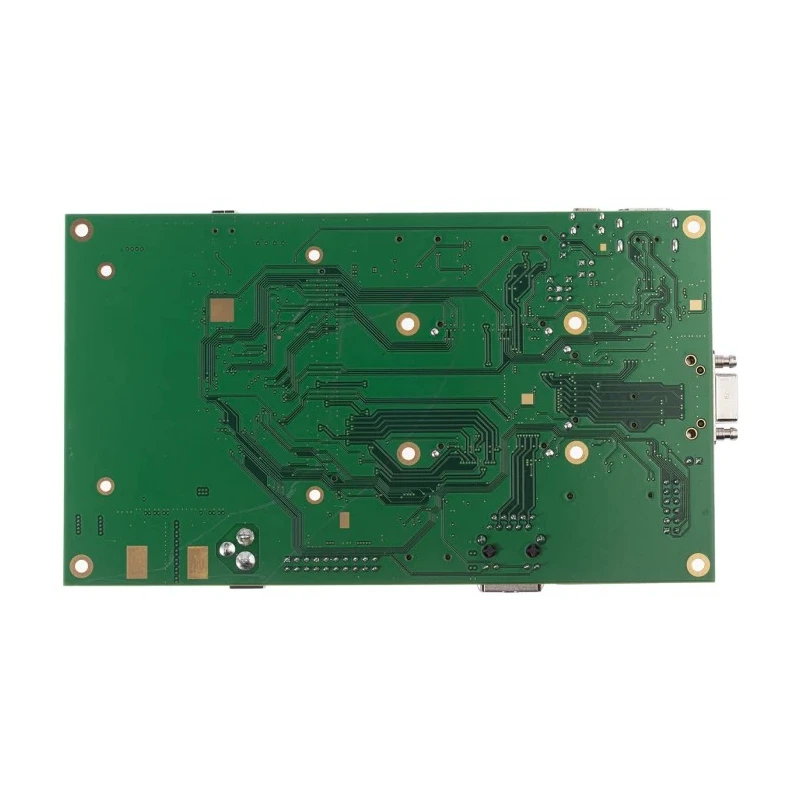

Trenz Electronic GmbH Carrier Board for Trenz Electronic 7 Series Development Kit TE0701-06

Free Delivery in India | Lowest Global Shipping Charges

Trenz Electronic GmbH Carrier Board for Trenz Electronic 7 Series Development Kit TE0701-06

Name: Trenz Electronic GmbH Carrier Board for Trenz Electronic 7 Series Development Kit TE0701-06
Brand: Trenz Electronic GmbH
SKU: 152649
Price: 380.61 USD
Availability: InStock



Category Development Kit Brand Trenz Electronic GmbH Condition New

Specifications

Country of Origin	Germany
Brand	Trenz Electronic GmbH
Model	TE0701-06
Interfaces	Ethernet
Standards/Approvals	RoHS
Kit Classification	Development Kit
Kit Name	Carrier Board for Trenz Electronic 7 Series

Key Features

The carrier board supports 4 x 5 System on Modules (SoMs) with exposed B2B connector pins.
Includes a 1200 macrocell CPLD with block RAM, flash memory, and PLL.
Equipped with 2 user pushbuttons and 8 user LEDs configurable for various functions.
Features a digitally programmable FMC VADJ power supply and high-performance Enpirion DC-DC converter.
Connectivity includes MicroUSB (device, host, OTG), RJ45 GbE Ethernet, SD card slot, USB JTAG, and FMC LPC connector.
Complies with RoHS standards and is manufactured in Germany.
Designed for industrial, embedded system, and laboratory development applications.

Product Description

Trenz Electronic GmbH TE0701-06 Carrier Board for Trenz Electronic 7 Series Development Kit is an advanced programmable logic development platform with a 12V electrical rating, intended for industrial and embedded system applications.

This carrier board acts as a baseboard for 4 x 5 SoMs, exposing connector pins to accessible connectors and providing a broad range of on-board components to fully test and evaluate the modules.

The development kit includes a 1200 macrocell Complex Programmable Logic Device (CPLD) equipped with block RAM, flash memory, and a PLL for clock management. Users can utilize 2 pushbuttons and 8 LEDs, all digitally programmable and assignable to various functions to suit development needs.

Power management is handled through a digitally programmable FMC VADJ power supply and a high performance Enpirion DC-DC converter, ensuring reliable local supply voltages. Connectivity options are extensive, including MicroUSB connectors supporting device, host, and OTG modes, RJ45 Gigabit Ethernet, an SD card connector supporting bootable SDIO0, USB JTAG interface with a mini USB connector, and VITA57.1 compliant FMC LPC connectors for FMC modules.

Designed in compliance with RoHS standards and manufactured in Germany, this carrier board supports high-performance industrial applications, embedded system development, and laboratory testing environments.

The carrier board supports 4 x 5 SoMs with accessible B2B connectors. It includes programmable CPLD with RAM, flash, and PLL. User interface features 2 pushbuttons and 8 LEDs assignable to various functions. Provides digitally programmable FMC VADJ power supply and Enpirion DC-DC converter.

Connectivity options include MicroUSB, RJ45 GbE Ethernet, SD card slot, USB JTAG interface, and FMC LPC connector. Compliant with RoHS and manufactured in Germany.

This product is ideal for industrial automation, embedded system prototyping, laboratory development, and educational uses requiring a versatile and feature-rich development platform.
