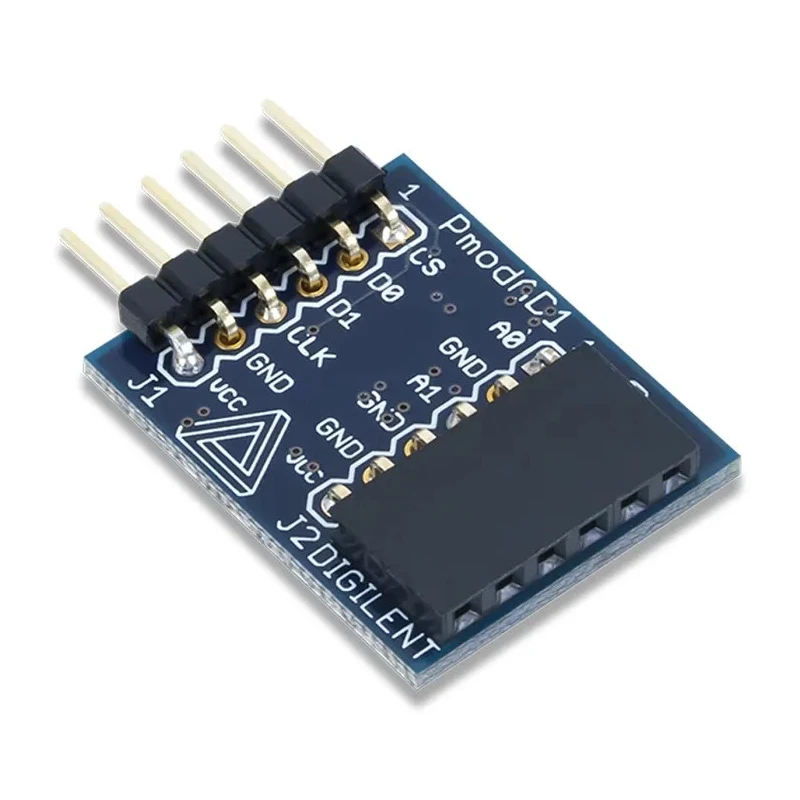

Digilent Expansion Module Development Kit with AD7476A 12-bit ADC Dual Channel 1MSPS SPI Interface 410-064
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 12 bit |
| Brand | Digilent |
| Dimensions | 24 x 20mm |
| Model | 410-064 |
| Interface Type | HDMI, USB 2.0, USB 3.0, MIPI-DSI, Bluetooth, WiFi, Ethernet |
| For Use With | DAC121S101 |
| Standards/Approvals | RoHS |
| Kit Classification | Expansion Module |
| Featured Device | AD7476A |
| Host communication | SPI bus |
| Converter Type | ADC |
Key Features
- The module uses the AD7476A Analog Devices ADC for high precision conversion.
- Supports simultaneous A/D conversion for efficient data acquisition.
- Equipped with dual 2-pole Sallen-Key anti-alias filters.
- Communication with host devices via SPI bus interface.
- Compact dimensions of 24 x 20 mm enable flexible integration.
- Compatible with DAC121S101 for enhanced functionality.
- RoHS compliant, ensuring environmental safety standards.
- Ideal for electronic development, signal conversion, and educational purposes.
Product Description
Digilent 410-064 Expansion Module Development Kit is a precision signal conversion development tool designed for advanced electronic applications. Featuring the AD7476A 12-bit Analog-to-Digital Converter, this dual-channel module provides simultaneous A/D conversion at up to 1 million samples per second (1MSPS) on each channel, enabling rapid and accurate data acquisition.
The module integrates dual 2-pole Sallen-Key anti-alias filters, which minimize unwanted signal distortion and ensure signal integrity across wide bandwidths. It communicates with host systems using the SPI bus through a 6-pin Pmod connector with GPIO interface, facilitating easy connectivity to microcontrollers and development boards.
With its compact footprint measuring just 24 x 20 mm, the Digilent 410-064 is suitable for integration into space-constrained electronic devices and projects. Designed for use with DAC121S101, it forms part of a versatile system for analog and digital conversion tasks.
Built to meet RoHS standards, this expansion module supports environmentally responsible manufacturing and usage. Its robust features make it an excellent choice for industrial electronics, laboratory development, signal processing education, and embedded system prototyping.
The module uses the AD7476A Analog Devices ADC for high precision conversion. Supports simultaneous A/D conversion for efficient data acquisition. Equipped with dual 2-pole Sallen-Key anti-alias filters. Communication with host devices via SPI bus interface.
Compact dimensions of 24 x 20 mm enable flexible integration. Compatible with DAC121S101 for enhanced functionality. RoHS compliant, ensuring environmental safety standards. Ideal for electronic development, signal conversion, and educational purposes.
Explore related development tools and modules in the Digilent range on EnvMart for comprehensive electronics development solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The module features a 12-bit resolution ADC, specifically the AD7476A from Analog Devices.
It supports simultaneous A/D conversion at a maximum rate of 1 million samples per second (1MSPS) on each channel.
It communicates with host devices via an SPI bus interface.
The compact dimensions of the module are 24 x 20 mm, allowing for flexible integration into various projects.
It is compatible with the DAC121S101, which enhances its functionality in signal conversion tasks.
The module is equipped with dual 2-pole Sallen-Key anti-alias filters to minimize unwanted signal distortion.
The country of origin for this expansion module is India.
It is RoHS compliant, ensuring it meets environmental safety standards.
It is ideal for electronic development, signal conversion, and educational purposes.
The featured device in this module is the AD7476A, which is an Analog-to-Digital Converter.
This product is classified as an Expansion Module, suitable for various development applications.
The module features a 6-pin Pmod connector with GPIO interface for easy connectivity to microcontrollers and development boards.
