Altera MAX V Programmable Logic Development Kit DK-DEV-5M570ZN for Cyclone V SoC Featuring 5M570Z Device DK-DEV-5M570ZN

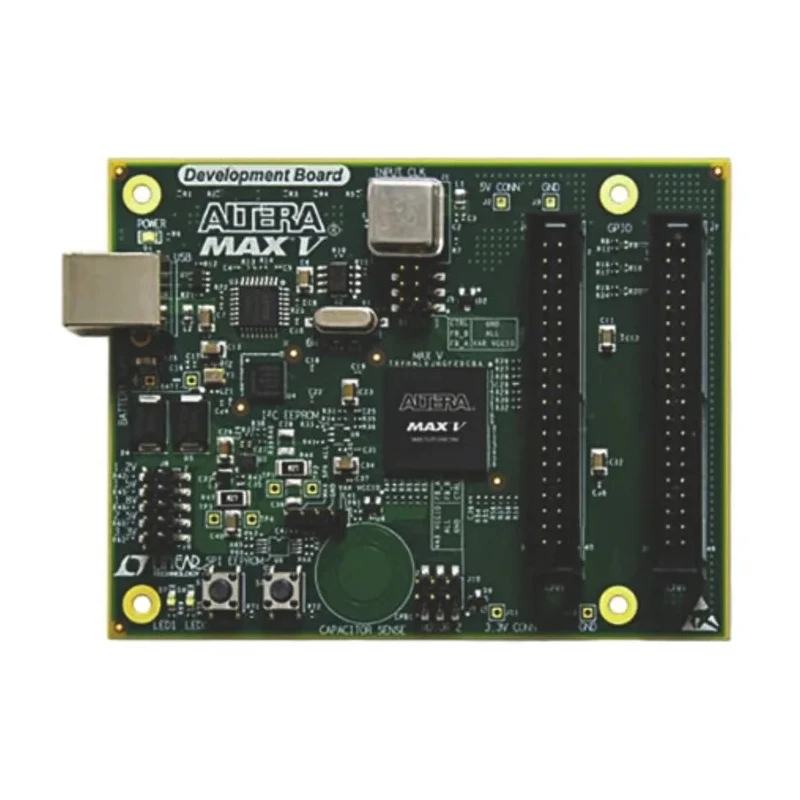

Altera DK-DEV-5M570ZN MAX V Programmable Logic Development Kit featuring the 5M570Z device is engineered for complex programmable logic device development applications. This development kit offers a comprehensive design platform combining hardware and software to prototype common CPLD applications such as I/O expansion, interface bridging, power management control, initialization control, and analogue interface control.

Designed to work with the Cyclone V SoC Development Kit, this development kit provides a rich feature set including embedded USB-Blaster circuitry to enable configuration of CPLD devices without requiring external programmers. The 5M570Z CPLD integrates 8Kbit user Flash memory (UFM) allowing non-volatile user data storage.

The hardware supports adjustable VCCIO on CPLD Bank 2, enabling bridging between differing I/O voltages. It includes multiple connectors for interfacing with external devices, standard PC speaker header, push-buttons, capacitive sensing buttons, user LEDs, and two DC motor headers making it suitable for prototyping applications requiring motor control, signal interfacing, and user input.

GPIO connectors allow for daughtercard attachments expanding the kit's versatility. Example designs and reusable schematic resources accelerate the development process by providing tested reference points. The inclusion of license-free Quartus II Web Edition software facilitates programming and design implementation.

This development kit is valuable for applications in embedded systems, industrial control, automation, and educational STEM projects requiring flexible programmable logic development solutions. It complies with RoHS standards ensuring environmental compliance and is manufactured in Taiwan, Province of China.

The kit supports the 5M570Z device for complex programmable logic applications. Provides USB-Blaster configuration circuitry to simplify device programming. Includes user interface components such as LEDs and push-buttons for interactive debugging.

Allows interface bridging and I/O expansion with adjustable voltage control. Offers GPIO connectors for daughtercard compatibility. Equipped with embedded Flash memory for non-volatile user data storage. Re-usable PCB and schematic available to aid custom design implementations.

Compatible with Cyclone V SoC Development Kit for integrated system applications. Includes license-free Quartus II Web Edition software for development tasks. Meets RoHS compliance standards and manufactured in Taiwan. Explore more FPGA development tools and embedded system kits on EnvMart for comprehensive engineering solutions.
