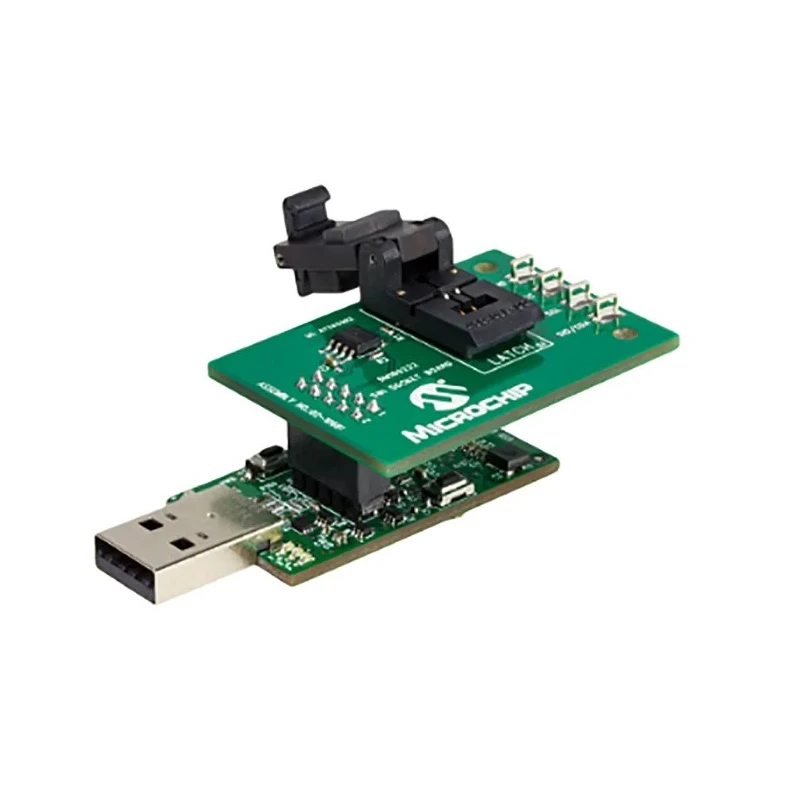

Microchip Serial Memory Single-Wire Evaluation Kit AT21CS Series 16 MHz DM160232

Microchip DM160232 Serial Memory Single-Wire Evaluation Kit for AT21CS Series is a development evaluation kit that operates at a maximum frequency of 16 MHz. It is designed to showcase superior features, functionality, and low-power consumption characteristics of the AT21CS Series Serial EEPROM devices. The evaluation kit includes a user-friendly Graphical User Interface (GUI) to enable developers and engineers to efficiently configure and test single-wire Serial EEPROMs, thereby reducing the prototype to production development time significantly.

This kit supports the Single-Wire Interface (SWI) protocol developed by Microchip and is compatible with Windows 7 and later operating systems. Communication with the user’s PC is achieved via a USB interface, which also supports firmware upgrades for the USB Base Board through the Flexible In-system Programming (FLIP) Software Utility, enhancing maintainability and feature extension.

The embedded AT90USB1287, an 8-bit AVR Microcontroller, manages the operational control of the evaluation board, ensuring seamless interaction and data exchange. The versatile design and compliance with RoHS standards make it suitable for use in various industrial, laboratory, and educational applications including embedded systems development, wireless communication prototyping, and serial memory device evaluation.

The evaluation kit is particularly valuable for professionals working with the AT21CS Series EEPROMs, enabling in-depth feature exploration, performance testing, and robust system integration in development environments. This facilitates effective product design cycles and accelerates time-to-market for innovative electronic products.

Easy-to-use interactive evaluation tool for AT21CS Series Serial EEPROMs. Features embedded Graphical User Interface (GUI) for simplified configuration. Supports Microchip's Single-Wire Interface (SWI) protocol. USB interface enables communication with PCs running Windows 7 or higher.

Facilitates USB Base Board firmware updates via FLIP software utility. Includes AT90USB1287 8-bit AVR Microcontroller for control operations. Ideal for engineers and developers shortening design to production cycles. Compliant with RoHS standards ensuring environmental safety.
