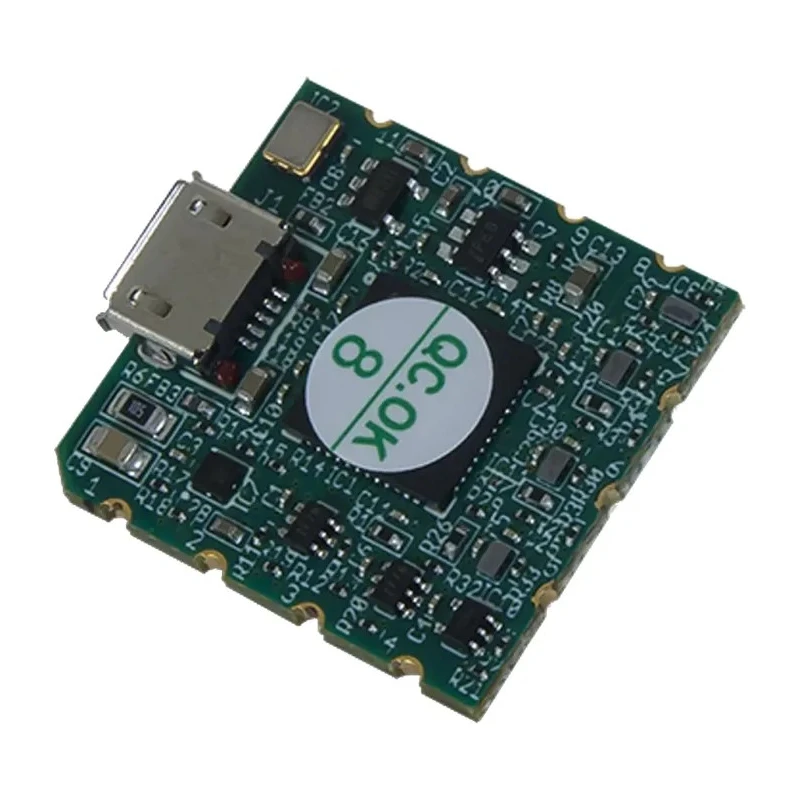

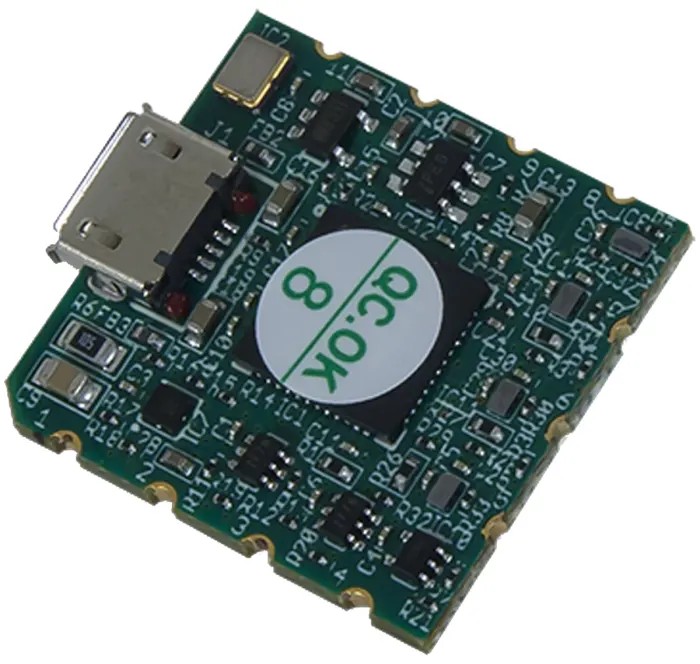

Digilent Programming Module for use with FPGA Devices 410-251

The Digilent 410-251 Programming Module is a compact JTAG-SMT2 surface-mount programming interface designed for high-speed programming of Xilinx FPGA devices directly from a host PC. This development tool accessory offers efficient programming with a MicroUSB connector for USB 2.0 high-speed data transfer at rates up to 30Mbit/sec, supporting SPI programming modes and a GPIO reset pin compatible with Xilinx Zynq platforms. Its on-board ADP123AUJZ 300mA voltage regulator ensures stable voltage supply, while the separate Vref input allows custom JTAG/SPI signal voltages from +1.8V to +5V. The module complies with IEEE 1149.7-2009 standards including 2-Wire JTAG operation, making it suitable for diverse FPGA programming needs.

The module is designed to be soldered directly onto target boards as a surface-mount component, with board dimensions measuring 22.75 mm by 21.5 mm, offering compact integration into embedded systems. It is fully supported by Digilent's Adept software and SDK, facilitating easy FPGA programming and debugging workflows in industrial, educational, and research environments.

FPGA technology provides programmable logic blocks that can be configured via SRAM to implement a variety of digital logic functions. This module enhances FPGA development by enabling quick and reliable in-system programming. It is ideal for applications in embedded system development, laboratory research, academic projects, and industrial prototyping where rapid FPGA configuration is essential.

The module supports all Xilinx development tools ensuring compatibility across platforms. Compliant with the IEEE 1149.7-2009 JTAG standard across multiple classes for flexible testing and programming. Equipped with a built-in voltage regulator ensuring consistent power supply during programming.

MicroUSB interface provides convenient connectivity for high-speed programming from standard hosts. GPIO processor reset functionality facilitates integration with Xilinx Zynq-based designs. Compact dimensions enable easy incorporation in target hardware designs through SMT mounting.

Efficient SPI programming modes support diverse programming protocols at high speeds. Includes full software support via Adept software and SDK for streamlined FPGA development. The module is not required for Digilent Xilinx FPGA boards that have built-in programming functionality.

For customers seeking reliable programming accessories for Xilinx FPGAs, the Digilent 410-251 Programming Module offers a proven solution with robust hardware and software support. Browse more products in the Development Kit category on EnvMart for additional programming tools and FPGA accessories.
