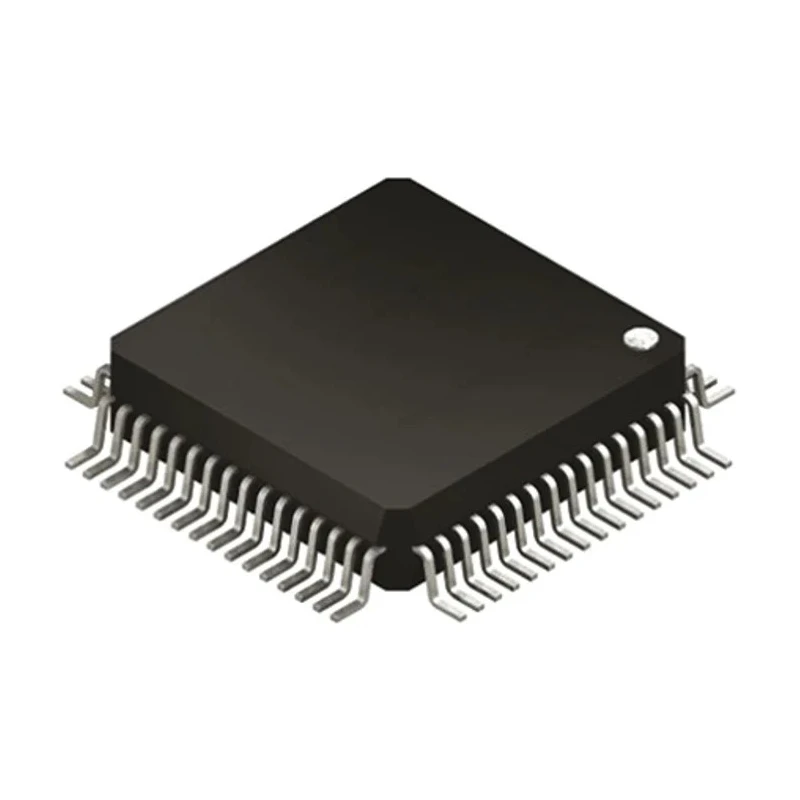

Altera Complex Programmable Logic Device MAX V 128 Macro Cells, 54 I/O, 7.5 ns Propagation Delay, 160 Logic 5M160ZE64A5N

Altera 5M160ZE64A5N is a Complex Programmable Logic Device (CPLD) from the MAX V series, designed for industrial, electronic, and embedded system applications where low power and high speed are critical.

This device features 128 macro cells and 160 logic elements, enabling extensive and flexible logic circuit implementation. With 54 user input/output pins, it offers wide interfacing capability for various complex designs.

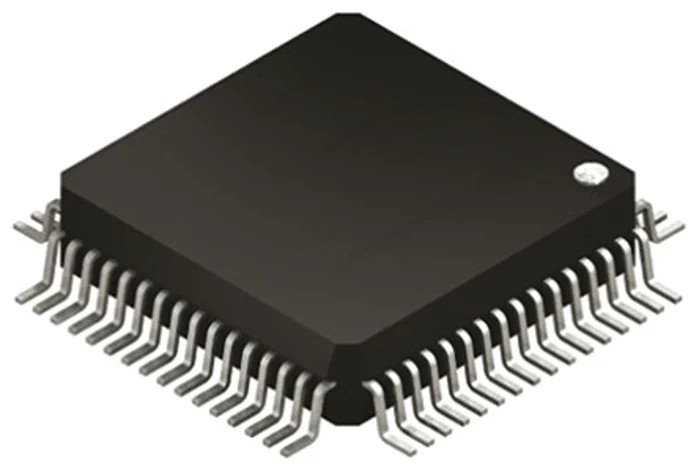

Equipped with a maximum propagation delay of 7.5 nanoseconds and a maximum operating frequency of 152 MHz, it provides rapid response times essential for timing-critical systems. The device package is an EQFP with 64 pins, supporting surface mount technology and compact PCB layouts.

In-system programmability allows the user to configure the device after deployment, supporting agile development cycles and field updates. Its operating voltage ranges from a minimum of 1.71 V to a maximum of 1.89 V, highlighting low power consumption and efficiency.

Operating temperature from -40°C to 125°C focuses on reliability even under extreme environmental conditions. It features individual output enable control, facilitating sophisticated control over output behaviors. Moreover, standby current can be as low as 25 μA, reducing power requirements during downtime.

This MAX V CPLD adheres to RoHS standards, ensuring compliance with environmental regulations. Its robustness and flexibility make it suitable for industrial automation, embedded systems, telecommunications, and general electronic circuit design requiring programmable logic capabilities.

MAX V architecture includes 128 macro cells for complex logic integration. Features 54 user input/output pins allowing extensive connectivity. Maximum propagation delay time of 7.5 nanoseconds ensures fast operations. Supports in-system programmability for flexible device reconfiguration.

Compact EQFP package with 64 pin count suitable for surface mounting. Operating temperature range from -40°C to 125°C suits harsh industrial environments. Provides individual output enable control for precise logic management.

Low power design with standby current as low as 25 microamperes. Maximum operating frequency of 152 MHz supports high-speed logic applications. Compliant with RoHS for environmental and safety standards.

For professionals seeking advanced CPLD solutions for industrial, laboratory, telecommunications, and embedded computing applications, this Altera MAX V device is a reliable choice. Explore more Programmable Logic ICs and electronic components at EnvMart.
