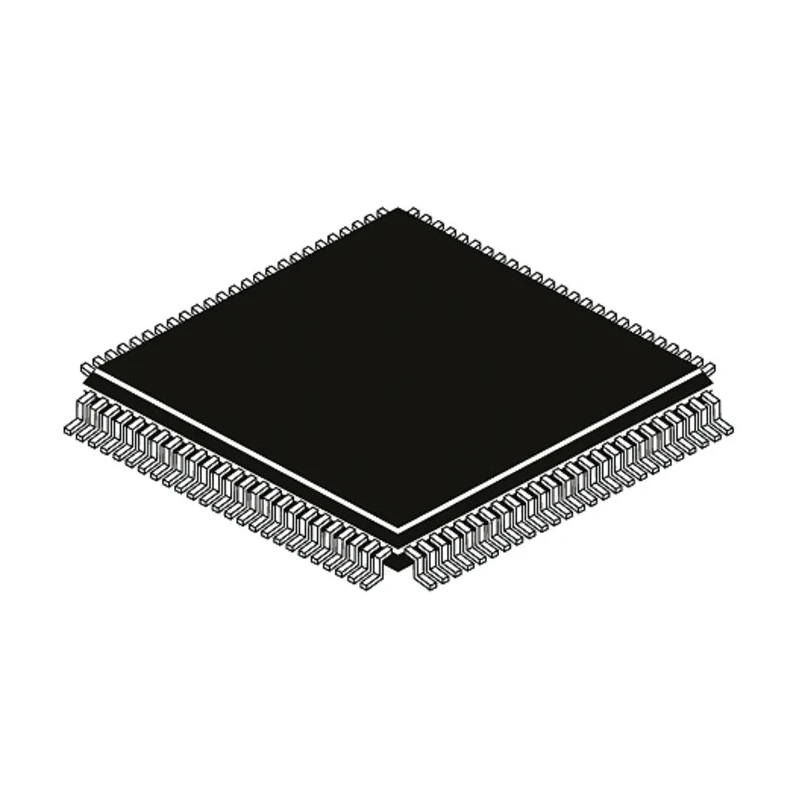

Altera Complex Programmable Logic Device MAX V 64 Macro Cells, 79 I/O Pins, 14 ns Propagation Delay, 100 Pin 5M80ZT100I5N

Altera 5M80ZT100I5N Complex Programmable Logic Device MAX V series features 64 macro cells and 79 user I/O pins, delivering high-performance logic solutions for advanced digital designs.

This device offers a maximum propagation delay time of 14 ns and includes 80 logic blocks for efficient logic implementation. It is housed in a 100-pin Thin Quad Flat Package (TQFP), with compact dimensions of 16 mm length and 1 mm height, suitable for surface mount applications.

The MAX V device supports low-power and non-volatile CPLD architecture with instant-on configuration time of 0.5 ms or less, and standby current as low as 25μA, making it energy-efficient for continued operation. It operates at supply voltages from 1.71 V to 1.89 V and individual output enable control provides flexible signal output management.

Designed for robust industrial use, the device operates across a wide temperature range from -40°C to 100°C and meets RoHS environmental standards. It supports fast power-down/reset operations and includes an internal oscillator to support versatile timing needs.

Maximum operating frequency reaches up to 152 MHz, ensuring suitability for demanding embedded systems, industrial automation, and other high-speed applications requiring in-system programmability and re-programmability support.

Typical applications include telecommunications equipment, industrial control systems, and complex logic circuit design environments where adaptability and fast configuration cycles are crucial.

Fast 14 ns maximum signal propagation delay ensures quick logic response. 64 macro cells and 80 logic elements offer extensive logic resource capacity. Compact 100-pin TQFP package supports surface mount technology. Wide operating temperature range supports harsh environmental conditions.

Low power consumption with instant-on configuration and standby current. Supports in-system programmability for easy device updates. Individual output enable control enhances output precision. Compliant with RoHS for eco-friendly manufacturing.

Internal oscillator support simplifies timing implementation. Maximum operating frequency of 152 MHz for advanced applications.
