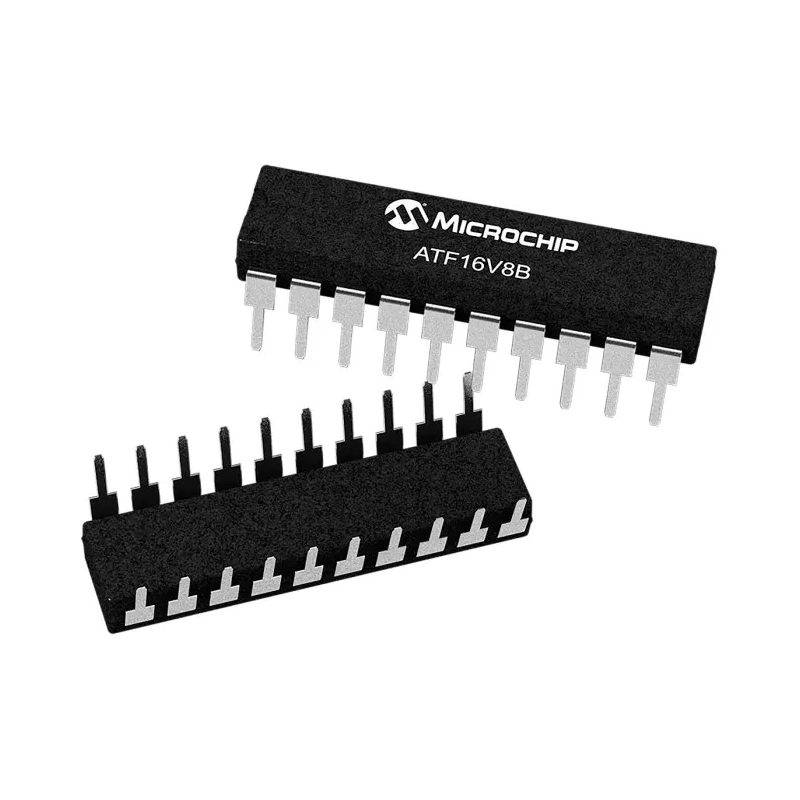

Microchip Simple Programmable Logic Device ATF16V8B-15PU, 150 Gates, 8 Macro Cells, 8 I/O, PDIP, 62 MHz
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | Microchip |
| Height | 4.95mm |
| Length | 26.92mm |
| Model | ATF16V8B-15PU |
| Mount Type | Through Hole |
| Series | ATF16V8B |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 20 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 4.5V |
| Maximum Propagation Delay Time | 15ns |
| Number of Gates | 150 |
| Number of Macro Cells | 8 |
| Number of User I/Os | 8 |
| Maximum Internal Frequency | 62MHz |
| Microchip ATF16V8B-15PU, SPLD Simple Programmable Logic DeviceBrand | Atmel |
Key Features
- High-performance simple programmable logic device for digital circuit design.
- Provides 150 gates, 8 macro cells, and 8 input/output pins for flexible logic implementation.
- Supports in-system programmability and re-programmability to adapt to changing requirements.
- Compatible with industry-standard through hole mounting for easy integration into PCBs.
- Operates in a wide supply voltage range from 4.5V to 5V.
- 20-pin PDIP package, compact form, suitable for prototyping and mass production.
- Maximum internal frequency of 62 MHz enables fast logic execution.
- Reliable operation from -40°C to 85°C, suitable for industrial and commercial environments.
Product Description
Microchip ATF16V8B-15PU is a high-performance Simple Programmable Logic Device (SPLD) designed for digital applications requiring flexible and reliable logic integration. Engineered for robust operation, this device delivers 150 gates with eight macro cells and eight user I/O pins, all housed in a standard 20-pin PDIP package.
High gate and macro cell count enables complex logic circuit construction. In-system programmability allows convenient updates and customization. Re-programmability ensures long-term versatility and adaptation for evolving designs.
PDIP package supports easy insertion and soldering for both prototyping and production. External supply voltage range of 4.5V to 5V ensures broad compatibility with industrial power standards. Maximum operating frequency of 62 MHz supports fast logic operations and time-critical controls.
The ATF16V8B-15PU is intended for embedded systems, industrial controls, consumer electronics, and automation projects. With its robust temperature range from -40°C to 85°C and RoHS-compliant design, this logic IC is ideal for demanding industrial, laboratory, and commercial environments.
Featuring in-system programmability and support for re-programming, it simplifies iterative development and maintenance. Its 20-pin PDIP footprint ensures direct insertion into standard PCBs, streamlining both prototyping and volume production.
The product's high reliability and industry-standard architecture support multiple use cases across manufacturing, electronics development, and automation sectors. Explore more Programmable Logic ICs and digital solutions from Microchip at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this model is 62 MHz, allowing for fast logic operations.
It operates within a supply voltage range of 4.5V to 5V, making it compatible with various industrial power standards.
This model features 150 gates and 8 macro cells, enabling complex logic circuit construction.
It comes in a 20-pin PDIP package, which supports through hole mounting for easy integration into PCBs.
This unit operates reliably in a temperature range from -40°C to 85°C, suitable for industrial and commercial environments.
The dimensions are 26.92 mm in length and 4.95 mm in height, making it compact for various applications.
The maximum propagation delay time is 15 ns, which is suitable for time-critical applications.
It provides 8 user I/O pins for flexible logic implementation in digital circuit design.
Yes, this model is RoHS compliant, meeting environmental standards for hazardous substances.
It is intended for embedded systems, industrial controls, consumer electronics, and automation projects.
Yes, it supports in-system programmability and re-programmability, allowing for updates and customization based on evolving requirements.
The country of origin for this model is the Philippines.
