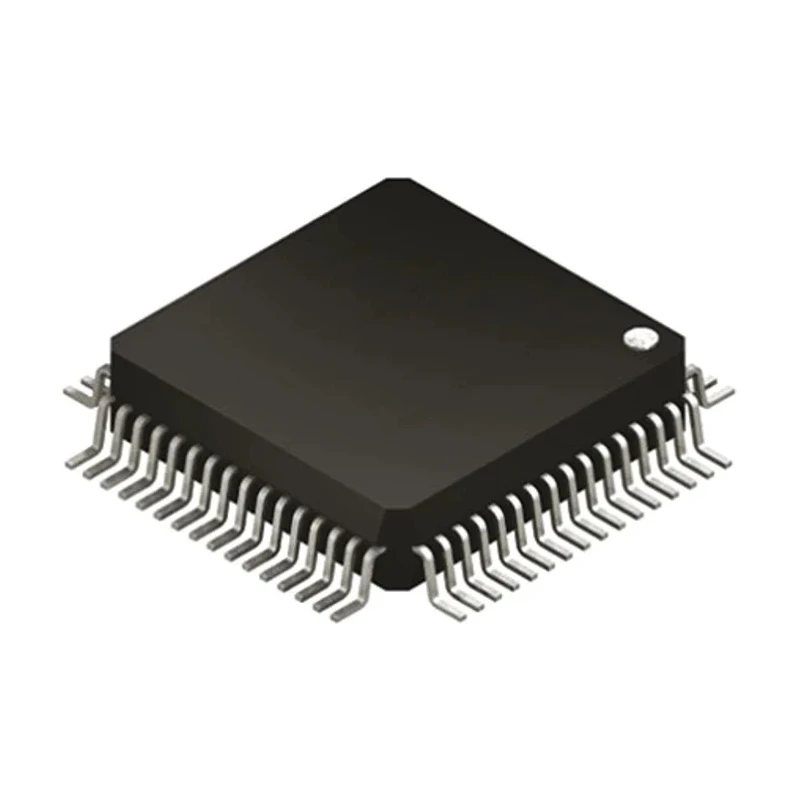

Altera Complex Programmable Logic Device MAX V 128 Macro Cells, 54 User I/Os, 7.5 ns Propagation Delay, 160 5M160ZE64A5N

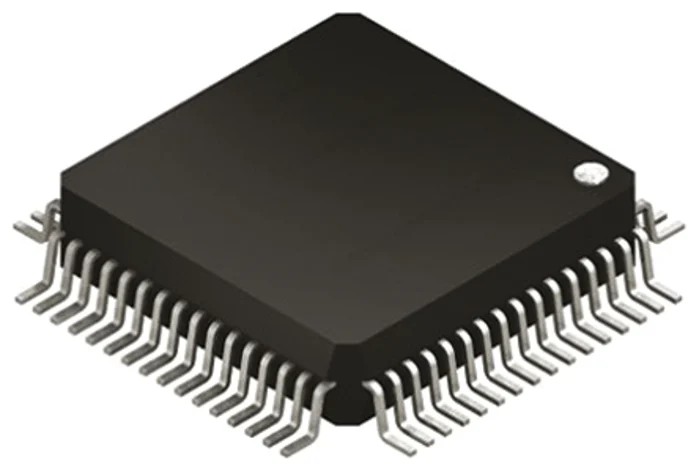

Altera 5M160ZE64A5N Complex Programmable Logic Device MAX V 64-Pin EQFP is a high-performance CPLD designed for complex logic implementations. This MAX V device features 128 macro cells and 160 logic elements, providing ample logic resources for a variety of programmable applications in industrial, electronic, and embedded system environments.

Its low-power, non-volatile architecture ensures minimal power consumption and instant-on performance with configuration time under 0.5 milliseconds. The device supports in system programmability, enabling developers to update and optimize logic designs without hardware changes.

The CPLD operates with a maximum propagation delay time of 7.5 nanoseconds and a maximum operating frequency of 152 MHz, delivering fast circuit switching and response. It is housed in a compact 64-pin EQFP surface mount package, suitable for space-constrained board designs. The device operates within a supply voltage range between 1.71 and 1.89 volts, balancing power efficiency and performance.

Designed to operate reliably from -40°C to 125°C, this CPLD suits industrial and harsh environment applications. Additional features include an internal oscillator and individual output enable control, expanding design flexibility. The CPLD is RoHS compliant and does not support automotive standard specifications.

Features a MAX V series architecture with low power and non-volatile design. Supports in system programmability for flexible hardware development. Operates with a maximum frequency of 152 MHz for high performance. Surface mount EQFP package with 64 pins for compact PCB integration.

Operates within a supply voltage range of 1.71V to 1.89V for power efficiency. Wide operating temperature range from -40°C to 125°C for industrial applications. Instant-on configuration with standby current as low as 25μA minimizes power consumption.

Includes internal oscillator and individual output enable control for versatile timing and control. RoHS compliant, ensuring environmental safety standards.

This CPLD is ideal for use in industrial automation, electronic devices, embedded systems, communication equipment, and other laboratory and manufacturing applications requiring reliable programmable logic solutions. Explore related programmable logic devices and components on EnvMart for comprehensive design solutions.
