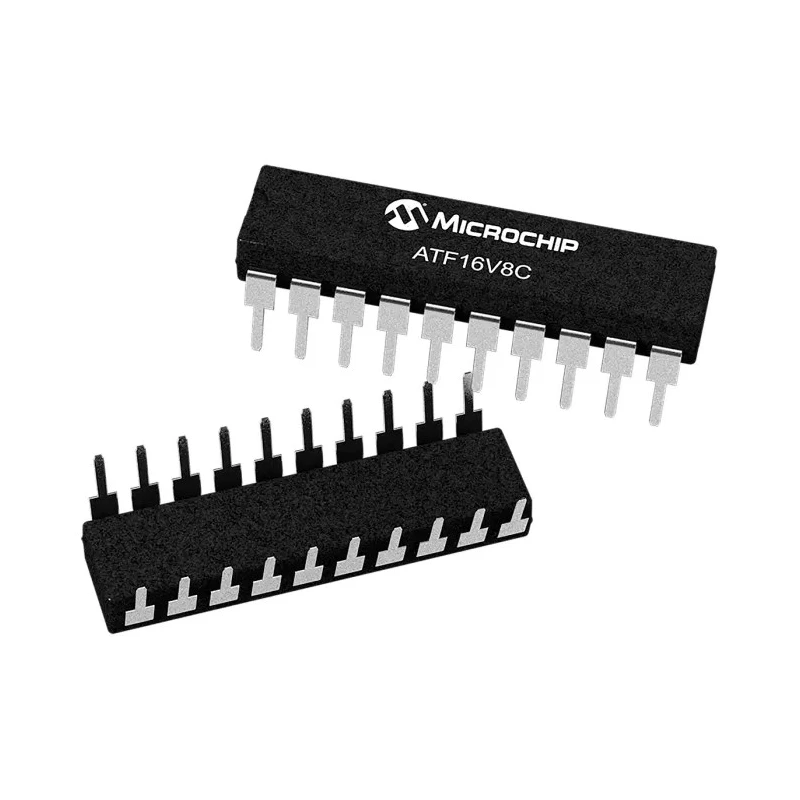

Microchip Simple Programmable Logic Device, 150 Gates, 8 Macro Cells, 8 I/O, PDIP, 125MHz, Through Hole ATF16V8C-7PU
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.95mm |
| Length | 26.92mm |
| Model | ATF16V8C-7PU |
| Mount Type | Through Hole |
| Series | ATF16V8C |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 20 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 4.5V |
| Maximum Propagation Delay Time | 7.5ns |
| Number of Gates | 150 |
| Number of Macro Cells | 8 |
| Number of User I/Os | 8 |
| Maximum Internal Frequency | 125MHz |
Key Features
- Features 150 logic gates for reliable performance.
- Equipped with 8 macro cells and 8 user I/O pins for versatile programmable logic applications.
- Operates at a maximum internal frequency of 125MHz for fast signal processing.
- Supports in-system programmability and re-programmability.
- PDIP package type with 20-pin configuration for easy integration into PCB electronics.
- Minimum supply voltage of 4.5V and maximum supply voltage of 5V.
- Operates reliably between -40°C and +85°C.
- Maximum propagation delay time of 7.5ns.
Product Description
The Microchip ATF16V8C-7PU is a high-performance Simple Programmable Logic Device designed for a wide range of programmable logic applications in industrial and commercial electronic systems. Featuring a robust architecture with 150 gates, 8 macro cells, and 8 I/O pins, this device enables flexible logic design and efficient circuit implementation.
Engineered for through-hole mounting, the device comes in a PDIP package with a 20-pin configuration, making it compatible with standard PCB footprints and easy to integrate into various electronic designs. With a maximum internal frequency of 125MHz, the ATF16V8C-7PU offers rapid signal processing capabilities suited for demanding digital logic projects.
150 logic gates provide high functional density in a compact format. Eight macro cells enable complex logic functionality and programmable flexibility. Eight user I/O pins facilitate interfacing with external circuitry. Wide voltage range from 4.5V to 5V supports stable operation for industrial electronics.
Through-hole PDIP package ensures straightforward placement and soldering. Supports both in-system programmability and re-programmability, reducing development time and costs. Operates reliably from -40°C to +85°C, suitable for harsh industrial environments.
RoHS compliant for sustainable manufacturing and reduced environmental impact.
The maximum propagation delay time of 7.5ns ensures speed and reliability in logic functions. The ATF16V8C-7PU’s durable design is ideal for industrial automation, control systems, programmable logic, and laboratory instrumentation.
This logic IC is frequently used in custom digital logic solutions, signal routing, timing controls, and embedded systems. Typical industrial applications include manufacturing automation, electronic instrumentation, laboratory setups, signal processing, and more.
Browse more Programmable Logic ICs and Microchip devices on EnvMart for your specialized electronics and industrial needs.
