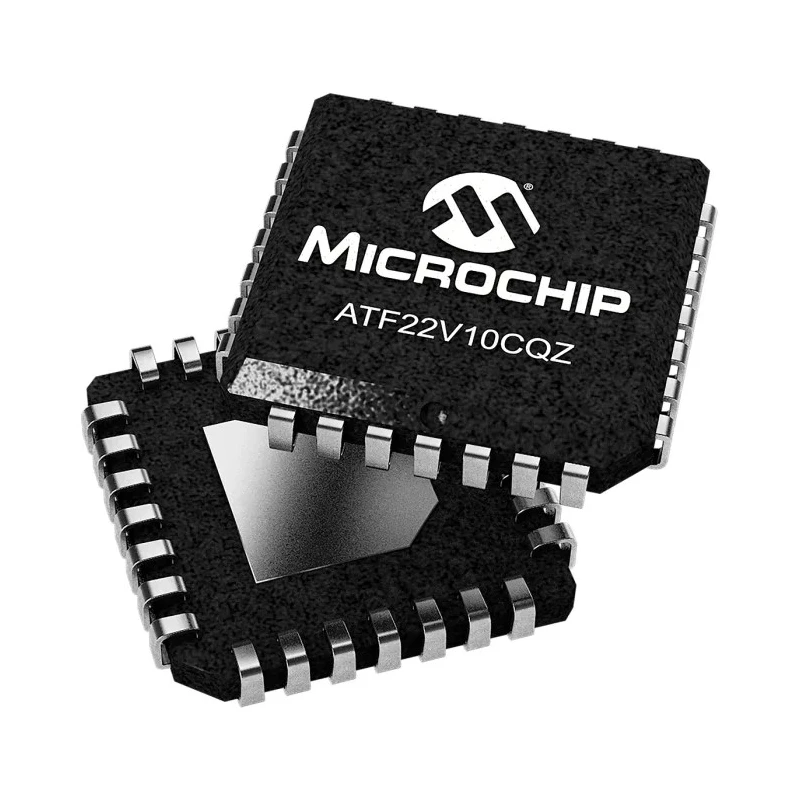

Microchip Simple Programmable Logic Device 350 Gates, 10 Macro Cells, 10 I/O, 50 MHz, PLCC, Surface Mount ATF22V10CQZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.06mm |
| Length | 11.58mm |
| Model | ATF22V10CQZ |
| Mount Type | Surface |
| Series | ATF22V10CQZ |
| Maximum Operating Temperature | 85°C |
| Package Type | PLCC |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 28 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 4.5V |
| Maximum Propagation Delay Time | 20ns |
| Number of Gates | 350 |
| Number of Macro Cells | 10 |
| Number of User I/Os | 10 |
| Maximum Internal Frequency | 50MHz |
Key Features
- Provides 350 gates for advanced logic processing.
- Features 10 macro cells suitable for broad logic configurations.
- Includes 10 user I/O pins for versatile interfacing.
- Operates at a maximum internal frequency of 50 MHz for rapid signal execution.
- Surface mount PLCC package with 28 pins for reliable installation.
- In-system programmable and supports re-programmability.
- Operates between 4.5V and 5V supply voltages.
- Wide operating temperature range from -40°C to 85°C.
Product Description
Microchip ATF22V10CQZ-20JU is a high-performance Simple Programmable Logic Device (SPLD) designed to meet demanding requirements in industrial, commercial, and laboratory electronics. With a compact PLCC package, the device delivers 350 gates, 10 macro cells, and 10 user I/O pins, enabling flexible logic solutions for sophisticated circuit designs.
As part of the ATF22V10CQZ series, this SPLD supports in-system programmability and re-programmability, allowing users to update configurations as project demands evolve. Its surface mount form factor (PLCC, 28-pin) ensures ease of integration into automated assembly lines and production environments.
The device operates with a supply voltage range of 4.5V to 5V and tolerates temperatures from -40°C up to 85°C, making it appropriate for harsh environments or precision control systems. Propagation delays are minimal (maximum 20ns), supporting fast signal transitions for time-critical applications in industrial monitoring, process control, and telecom equipment.
Compliance with RoHS standards ensures safe usage in modern electronics manufacturing. The maximum internal frequency of 50 MHz offers robust performance for complex logic functions in custom PCB designs, automation, and instrumentation.
Provides 350 gates for advanced logic processing. Features 10 macro cells suitable for broad logic configurations. Includes 10 user I/O pins for versatile interfacing. Operates at a maximum internal frequency of 50 MHz for rapid signal execution.
Surface mount PLCC package with 28 pins for reliable installation. In-system programmable and supports re-programmability. Wide operating temperature range from -40°C to 85°C. Compliant with RoHS standards for environmental safety.
Maximum propagation delay time of 20ns, suitable for high-speed applications.
Popular for use in industrial process automation, embedded control systems, laboratory instrumentation, and custom digital logic designs. Its programmable nature serves both prototype and production deployments, with a strong emphasis on reliability and flexibility.
Explore more Microchip programmable logic devices and industrial-grade semiconductors on EnvMart for engineering innovation and solutions tailored to sophisticated applications.
Explore more products in our Programmable Logic ICs category.
