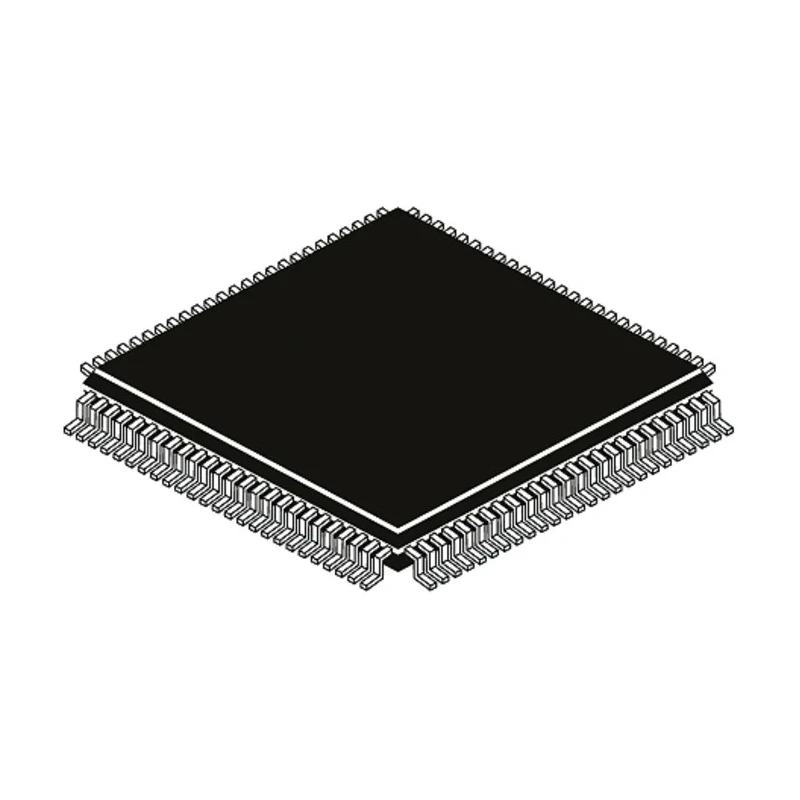

Altera Complex Programmable Logic Device MAX V 128 Macro Cells, 79 I/O, 7.9 ns Propagation Delay, 160 Logic 5M160ZT100C4N

Altera 5M160ZT100C4N complex programmable logic device (CPLD) from the MAX V series provides 128 macro cells and 160 logic elements integrated into a compact 100-pin TQFP package. This device supports in system programmability, offering flexibility for hardware configuration during operational usage. The device features ultra-fast propagation delay of 7.9 nanoseconds enabling high-speed digital circuit designs.

Operating between 0°C to 85°C, it maintains functionality in industrial and commercial environments. The supply voltage ranges from 1.71V minimum to 1.89V maximum, ensuring low power consumption and efficient operation. Individual output enable control enhances signal precision in complex logic implementations.

The compact surface mount package dimensions of 1mm height and 16mm length make it suitable for space-constrained electronic assemblies. This MAX V CPLD complies with RoHS environmental standards, suitable for eco-conscious industrial applications.

The device supports a maximum operating frequency of 152 MHz, further augmented by fast clock-to-output response and built-in internal oscillator. Its non-volatile and low-power architecture enables instant-on configuration typically under 0.5 milliseconds with standby currents as low as 25μA, minimizing power usage when idle.

Typical use cases encompass industrial automation, telecommunications, embedded systems development, and laboratory equipment where programmable logic is essential for customized control and processing tasks. Development tools such as DesignSpark software facilitate PCB and 3D mechanical design integration for streamlined product development.

Operates with maximum 7.9 ns propagation delay time. Supports in system programmability for device reconfiguration. Equipped with 128 macro cells and 160 logic elements. Packaged in a 100-pin TQFP surface mount format. Operating temperature range from 0°C to 85°C.

Low power supply voltage range of 1.71 to 1.89 V. Maximum operating frequency of 152 MHz. Compliant with RoHS environmental standards. Individual output enable control included. Explore more products in Programmable Logic ICs category at EnvMart for advanced industrial and electronic design solutions.
