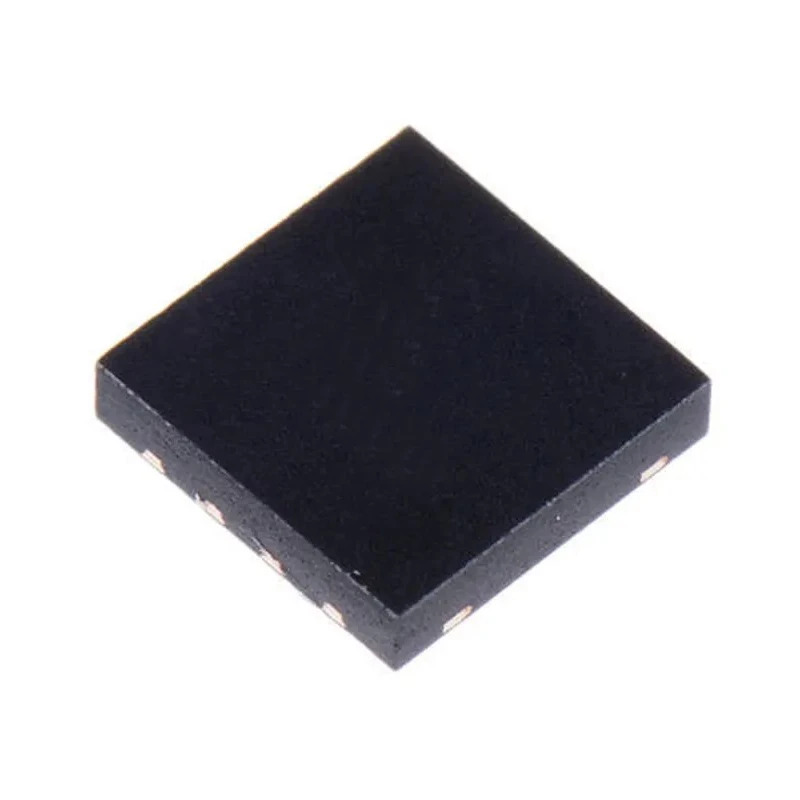

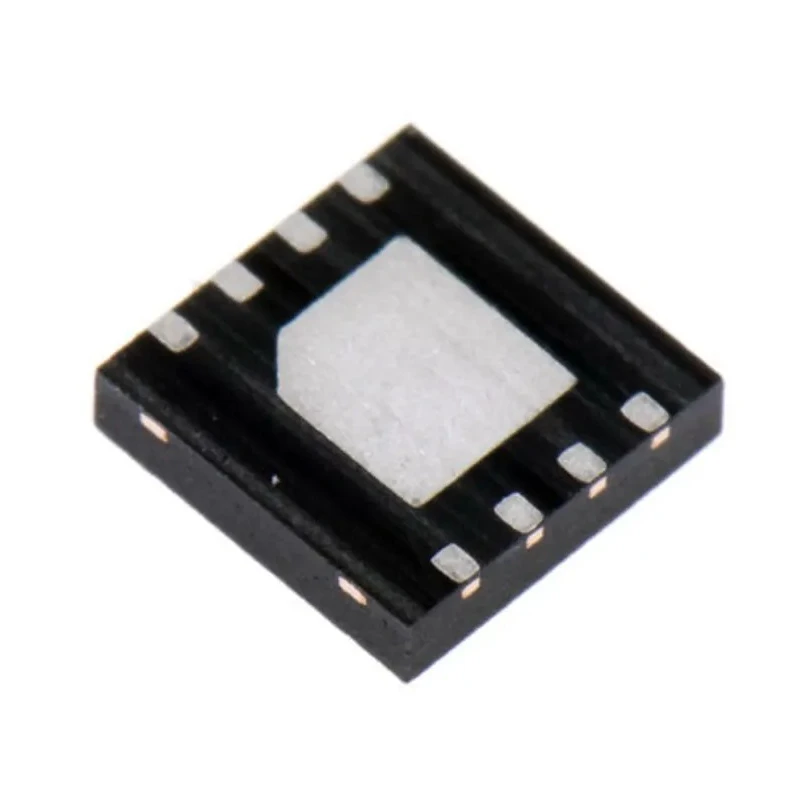

Intersil Adjustable LDO Linear Voltage Regulator Positive Polarity 6V Maximum Input Voltage Surface Mount ISL80505IRAJZ-T7A
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators Intersil ISL80505IRAJZ-T7A, Voltage Regulator 6V DFN 8-Pin RS Stock N |
| Brand | Intersil |
| Height | 950μm |
| Length | 3mm |
| Model | ISL80505IRAJZ-T7A |
| Width | 3mm |
| Mount Type | Surface |
| Series | ISL80505 |
| Maximum Operating Temperature | 125°C |
| Package Type | DFN |
| Polarity | Positive |
| Maximum Input Voltage | 6V |
| Quiescent Current | 5.7mA |
| Standards/Approvals | Pb-Free (RoHS) |
| Minimum Input Voltage | 1.8V |
| Pin Count | 8 |
Key Features
- This LDO regulator provides low dropout voltage ensuring efficient power regulation.
- It supports a minimum input voltage of 1.8V and a maximum operating temperature of 125°C.
- The device features low quiescent current of 5.7mA, ideal for power-sensitive circuitry.
- Compact package dimensions of 3mm length and width with a height of 950μm allow space-saving PCB design.
- Lead-free (RoHS compliant) construction ensures environmentally safe use.
- Designed for positive polarity applications in power management circuits.
- Surface mount technology enhances reliable and automated assembly.
- Contains 8 pins enabling necessary connections with external components.
Product Description
Intersil ISL80505IRAJZ-T7A adjustable LDO linear voltage regulator is part of the ISL80505 series tailored for precise power management in electronic devices. The regulator operates with an input voltage range from 1.8V up to a maximum of 6V, delivering stable output voltage with low dropout characteristics, ensuring efficient power conversion with minimal heat dissipation.
The device is housed in a 3mm by 3mm DFN package with 8 pins, measuring 950 μm in height, making it ideally suited for surface mount applications where PCB real estate is critical. The low quiescent current of 5.7mA makes it highly suitable for battery-powered and portable electronics, maintaining power integrity without excessive current draw.
It is designed with positive polarity, complying with Pb-Free (RoHS) standards to meet environmental regulations. This voltage regulator performs reliably up to an operating temperature of 125°C, supporting demanding industrial and commercial environments.
The ISL80505IRAJZ-T7A is extensively used in industrial, electronic manufacturing, telecommunications, medical devices, and consumer electronics for voltage regulation tasks requiring compact size and efficient power delivery.
This adjustable LDO offers precise low dropout voltage regulation. Compact and lightweight DFN 8-pin surface mount package. Supports a wide input voltage range and high maximum operating temperature. Low quiescent current improves energy efficiency in power-sensitive designs.
RoHS-compliant lead-free manufacturing for environmental safety. Suitable for a broad range of applications including industrial and consumer electronics. Positive polarity design matches standard power supply configurations.
Reliable thermal performance ensuring consistent operational stability.
Explore more in our Electronics & Electricals category including Power Management ICs and Voltage Regulators to find compatible and complementary components for your projects and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for this model is 6V.
It requires a minimum input voltage of 1.8V to operate effectively.
The quiescent current for this unit is 5.7mA, making it suitable for power-sensitive applications.
The DFN package measures 3mm in length and width, with a height of 950μm.
This voltage regulator can operate at a maximum temperature of 125°C.
Yes, it is Pb-Free (RoHS) compliant, ensuring it meets environmental regulations.
It is extensively used in industrial, telecommunications, medical devices, and consumer electronics for voltage regulation tasks.
This model is designed for positive polarity applications.
It features 8 pins for necessary connections with external components.
This voltage regulator utilizes surface mount technology for installation.
It is part of the ISL80505 series, which is tailored for precise power management.
Its low quiescent current of 5.7mA helps maintain power integrity without excessive current draw, making it ideal for battery-powered applications.
