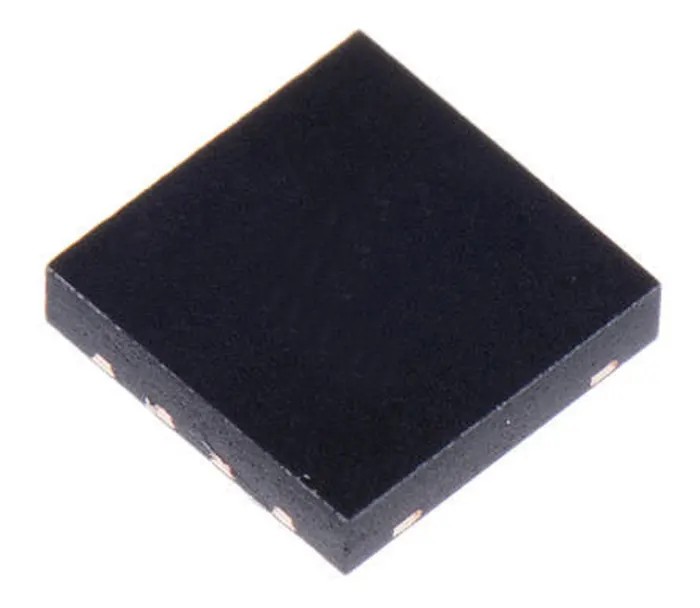

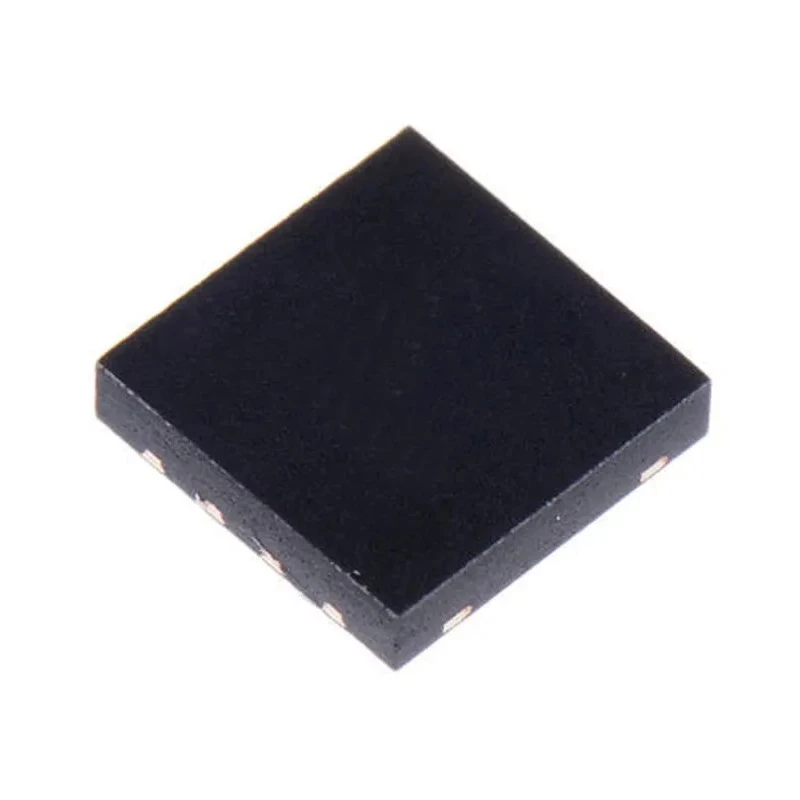

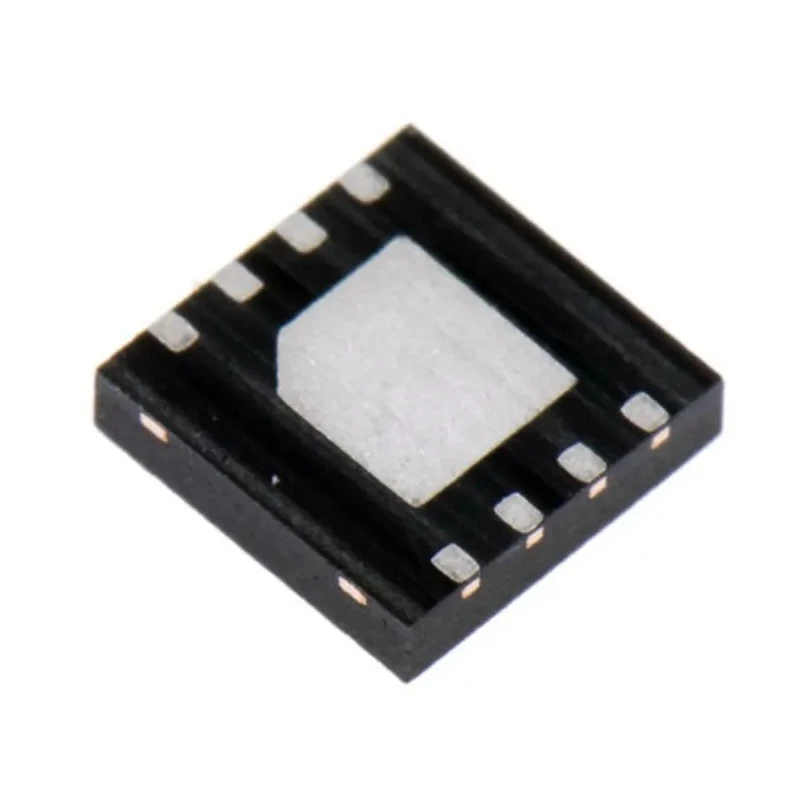

Intersil Adjustable LDO Linear Voltage Regulator 6V 5.7mA Quiescent Current DFN 8-Pin ISL80505IRAJZ-T7A
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators Intersil ISL80505IRAJZ-T7A, Voltage Regulator 6V DFN 8-Pin RS Stock N |
| Brand | Intersil |
| Height | 950μm |
| Length | 3mm |
| Model | ISL80505IRAJZ-T7A |
| Width | 3mm |
| Mount Type | Surface |
| Series | ISL80505 |
| Maximum Operating Temperature | 125°C |
| Package Type | DFN |
| Polarity | Positive |
| Maximum Input Voltage | 6V |
| Quiescent Current | 5.7mA |
| Standards/Approvals | Pb-Free (RoHS) |
| Minimum Input Voltage | 1.8V |
| Pin Count | 8 |
Key Features
- Operates with low quiescent current of 5.7mA providing efficient power management.
- Compact DFN package measuring 3mm x 3mm with a height of 950μm for surface mounting.
- Supports input voltage range from 1.8V to a maximum of 6V.
- Designed for positive polarity operation and Pb-Free (RoHS) compliant.
- Maximum operating temperature rated at 125°C for reliable performance in industrial environments.
- Features 8 pins allowing versatile electrical connectivity in power circuits.
- Suitable for regulated output voltage applications requiring low dropout linear regulators.
Product Description
Intersil ISL80505IRAJZ-T7A is an adjustable low dropout (LDO) linear voltage regulator designed for power management in electronic circuits. The device operates efficiently with a low quiescent current of 5.7mA and supports a wide input voltage range from 1.8V up to 6V, making it suitable for various battery-powered and low-voltage systems.
The regulator comes in a compact DFN package measuring 3mm by 3mm with a height of 950μm, optimized for surface mounting on printed circuit boards (PCBs). This small footprint aids in space-saving design applications, especially in portable and embedded electronics.
Designed for positive polarity operation, the ISL80505IRAJZ-T7A is Pb-Free and RoHS compliant, addressing environmental compliance and reliability requirements for industrial, automotive (non-automotive standard rated), and commercial electronics.
The device’s maximum operating temperature of 125°C allows for robust functioning in demanding thermal conditions typical in industrial power supply design, laboratory equipment, and embedded control systems.
Low quiescent current for improved efficiency. Compact DFN 8-pin surface mount package. Wide input voltage range: 1.8V to 6V. RoHS compliant, lead-free manufacturing. High temperature operation up to 125°C. Adjustable output voltage capability suitable for various applications.
Positive polarity voltage regulator design.
This product is ideal for power management IC applications in electronics manufacturing, industrial automation systems, laboratory instruments, and portable device power supplies where stable voltage regulation is crucial.
By choosing the Intersil ISL80505IRAJZ-T7A voltage regulator, designers benefit from a reliable, compact, and efficient solution tailored for modern electronics requiring precise voltage control and minimal power dissipation.
Explore EnvMart’s extensive range of Power Management ICs and Voltage Regulators for complementary components and related devices.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for the ISL80505IRAJZ-T7A is from 1.8V to a maximum of 6V.
This voltage regulator operates with a low quiescent current of 5.7mA, which enhances its efficiency in power management applications.
The DFN package of the ISL80505IRAJZ-T7A measures 3mm x 3mm with a height of 950μm.
The maximum operating temperature for the ISL80505IRAJZ-T7A is rated at 125°C, making it suitable for industrial applications.
Yes, the ISL80505IRAJZ-T7A is Pb-Free and RoHS compliant, meeting environmental compliance standards.
The ISL80505IRAJZ-T7A is designed for surface mounting, which is ideal for printed circuit boards (PCBs).
This voltage regulator is designed for positive polarity operation.
It is suitable for applications requiring regulated output voltage, such as battery-powered devices and industrial power supply designs.
The minimum input voltage for the ISL80505IRAJZ-T7A is 1.8V.
The primary function of the ISL80505IRAJZ-T7A is to provide low dropout linear regulation for stable voltage control in electronic circuits.
