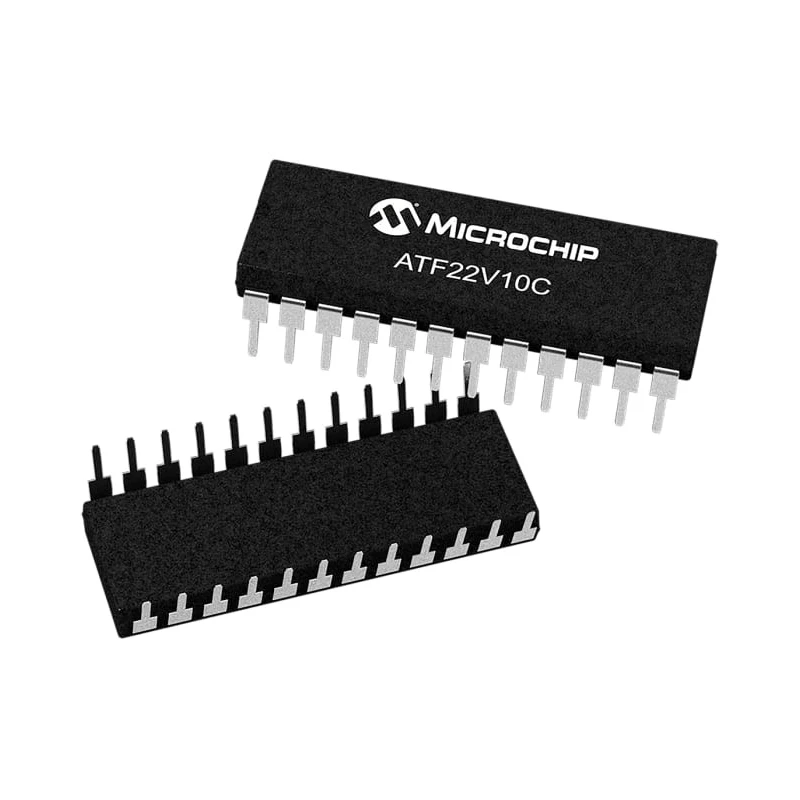

Microchip Simple Programmable Logic Device, 350 Gates, 10 Macro Cells, 10 I/O, 83.3 MHz, PDIP, Through Hole ATF22V10C-15PU

Microchip ATF22V10C-15PU Simple Programmable Logic Device is designed for demanding digital circuit applications requiring configurable logic and high performance. Featuring 350 logic gates and 10 macro cells, this SPLD enables complex logic implementations within a compact form factor and an industry-standard architecture. The device delivers reliable operation for both prototyping and production environments, ensuring low power consumption and high reliability.

With 10 user input/output ports, the device suits varied digital interfacing needs. Its maximum internal clock frequency of 83.3 MHz allows for fast switching and precise timing, suitable for high-speed circuit requirements. The PDIP package and through-hole mount type ensure simple integration and compatibility with most standard PCB layouts.

The Microchip ATF22V10C-15PU supports in-system programmability and re-programmability, making it ideal for flexible applications where updates or logic adjustments are frequently required. The supply voltage range from 4.5V to 5V offers practical tolerance for typical circuit supply levels.

Operating across a wide temperature range (-40°C to 85°C), this device maintains consistent performance in challenging environments. The propagation delay time of 15ns supports rapid operations, and its RoHS compliance means suitability for modern industrial standards.

350 gates provide robust programmable logic capabilities for digital designs. 10 macro cells allow complex circuit customizations and operations. 10 user I/O ports for flexible connectivity and integration. Maximum internal frequency of 83.3 MHz ensures high-speed operations.

PDIP package and through-hole mounting simplify system construction. Wide voltage range (4.5V to 5V) accommodates various supply conditions. In-system programmability and re-programmability for adaptable solutions. 24-pin configuration fits standard industry board layouts.

This SPLD is utilized in industrial automation, laboratory controls, manufacturing systems, instrumentation, and embedded system circuit design. Its versatility, reliability, and ease of integration make it suitable for rapid development and deployment in electronics and industrial environments.
