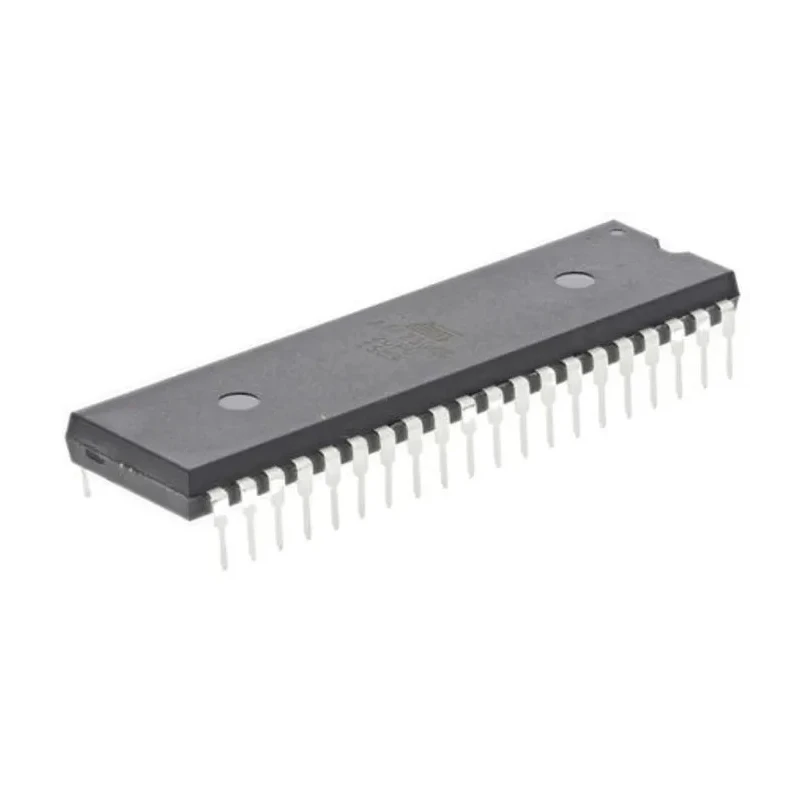

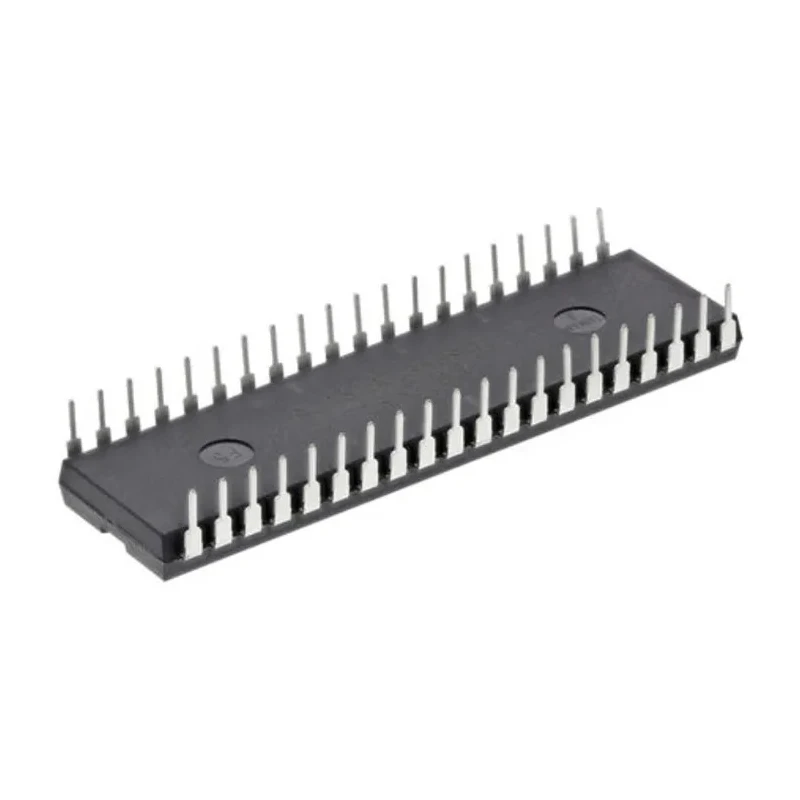

Microchip Complex Programmable Logic Device EEPROM 24 Cells, 24 I/O, 20 ns, 40-Pin PDIP ATF2500C
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.44mm |
| Length | 52.57mm |
| Model | ATF2500C |
| Mount Type | Through Hole |
| Memory type | EEPROM |
| Series | ATF2500C(L) |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 40 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 4.5V |
| Maximum Propagation Delay Time | 20ns |
| Number of Macro Cells | 24 |
| Number of User I/Os | 24 |
| Microchip ATF2500C-20PU, CPLD EEPROM 24 Cells, 24 I/O, 20ns, 40-Pin PDIPBrand | Microchip |
Key Features
- Offers 24 macro cells for flexible programmable logic designs.
- Features EEPROM memory type ensuring non-volatile storage.
- Includes 24 user I/Os suitable for complex digital applications.
- 20 ns maximum propagation delay for fast signal processing.
- Provided in a 40-pin PDIP package format for easy integration.
- Supports re-programmability and individual output enable control.
- Operates between 4.5V and 5V supply voltage for compatibility with standard electronics.
- Through-hole mount type for reliable PCB assembly.
Product Description
Microchip ATF2500C-20PU Complex Programmable Logic Device is a high-performance CPLD designed for industrial, commercial, and laboratory digital systems. With 24 macro cells and 24 user I/Os, it is suitable for a variety of programmable logic designs demanding fast and reliable performance.
EEPROM memory technology ensures data retention and supports in-circuit re-programmability, offering flexibility for prototyping and production environments. The device features a 20 ns maximum propagation delay, enabling quick response times for digital signal processing and control applications.
Its 40-pin PDIP through-hole package facilitates robust and straightforward integration into PCBs, ideal for both automated and manual assembly. Operating voltage between 4.5V and 5V allows compatibility with standard logic levels across multiple electronic platforms.
An ambient operating temperature range from -40°C to 85°C makes it well suited for harsh industrial environments and laboratory setups. Individual output enable control provides advanced options for tailoring device behavior in complex circuits.
Re-programmability support allows updating logic functionalities without replacing the component, improving lifecycle value and support for iterative design. The Microchip ATF2500C-20PU does not comply with automotive standards but is optimized for industrial, electronic, and commercial use cases.
Industries served include electronics manufacturing, industrial instrumentation, automation, research laboratories, and embedded system development. Applications can range from digital signal processing, control systems, and logic interfacing, to prototyping programmable devices.
With robust features and Microchip reliability, the ATF2500C-20PU is ideal for engineers requiring flexible, high-speed CPLDs for system development, testing, and production deployment.
Explore more Microchip programmable logic ICs and innovative digital solutions in the 'Programmable Logic ICs' category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum propagation delay of the Microchip ATF2500C-20PU is 20 ns, enabling fast signal processing for digital applications.
This CPLD operates within a supply voltage range of 4.5V to 5V, making it compatible with standard electronic systems.
The ATF2500C features 24 macro cells, allowing for flexible programmable logic designs.
It utilizes EEPROM memory technology, which ensures non-volatile storage and supports re-programmability.
The device is provided in a 40-pin PDIP package format, which is suitable for through-hole mounting.
The operating temperature range for the ATF2500C is from -40°C to 85°C, making it suitable for harsh environments.
This model includes 24 user I/Os, which are suitable for complex digital applications.
The ATF2500C is optimized for industries such as electronics manufacturing, industrial instrumentation, automation, and embedded system development.
Yes, it supports individual output enable control, providing advanced options for tailoring device behavior in circuits.
The dimensions of this CPLD are 52.57 mm in length and 4.44 mm in height.
No, the ATF2500C does not comply with automotive standards but is designed for industrial and commercial use cases.
This model utilizes a through-hole mount type, which facilitates reliable PCB assembly.
