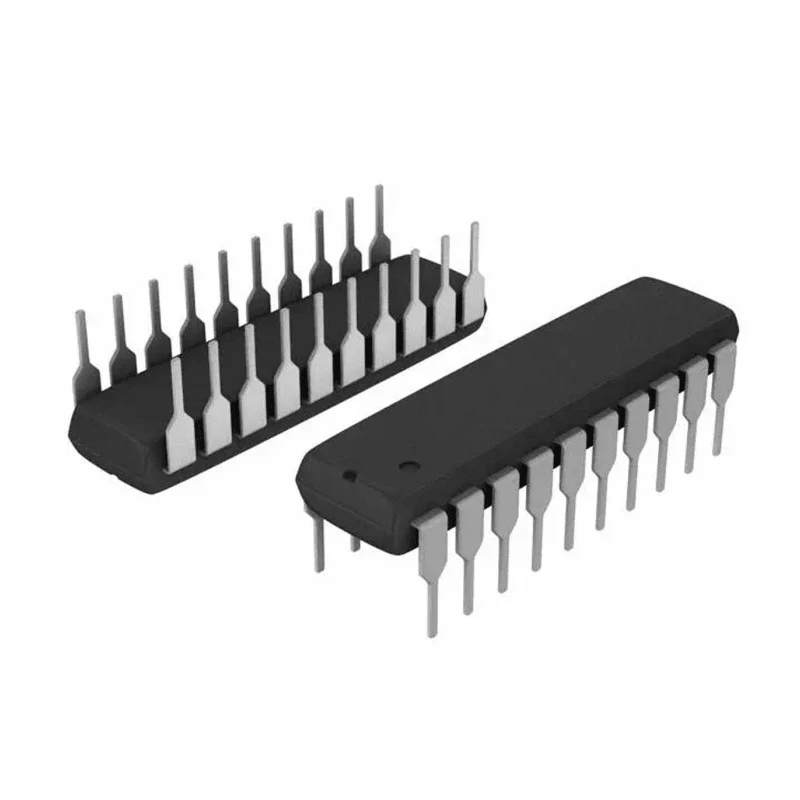

Microchip Simple Programmable Logic Device 150 Gates, 8 Macro Cells, 8 I/O, 62 MHz, Through Hole, ATF16V8BQL-15PU

The Microchip ATF16V8BQL-15PU is a high-performance Simple Programmable Logic Device (SPLD) designed to streamline the development of versatile digital logic circuits. Combining low power consumption with an industry standard architecture, this SPLD enables engineers to realize complex programmable logic designs efficiently.

Featuring 150 logic gates, 8 macro cells, and 8 user I/O pins, the ATF16V8BQL-15PU provides flexibility for a variety of combinational and sequential logic functions. Its in-system programmability and re-programmability allow users to adapt their logic designs swiftly during prototyping, development, or product iterations. This device is capable of operating at up to 62MHz maximum internal frequency, supporting applications where speed and responsiveness are critical.

150 logic gates for creating custom logic circuits tailored to a specific application. 8 macro cells and 8 dedicated I/O pins for user-configurable logic design options. Through hole mounting via 20-pin PDIP package for secure integration onto PCBs.

Wide operating range with supply voltages between 4.5 V and 5 V. Fast signal processing with up to 15ns maximum propagation delay time. Adaptable to demanding environments, operating from -40°C to 85°C. Full compliance with RoHS standards ensures eco-friendly use.

Resilient construction for use in industrial, laboratory, automation, and commercial electronics. Ideal for logic device prototyping, product development, production runs, and educational lab projects.

The package height is 4.95 mm and length is 26.92 mm. The ATF16V8BQL-15PU is part of the ATF16V8BQL series and is suitable for many embedded system and hardware logic development scenarios. Standard operating temperatures enable this device to perform in both standard and demanding application conditions.

Its compatibility and support for in-system re-programmability simplify workflow, reduce development time, and allow for creative design solutions without frequent hardware changes.

Common application areas include industrial automation logic, electronic product prototyping, PLCs, measurement instrumentation, testing systems, and custom logic solutions for embedded systems. The Microchip ATF16V8BQL-15PU offers reliability and adaptability for your logic control and sequencing needs.

Explore more products in the Programmable Logic ICs category and discover the full range of Microchip programmable devices on EnvMart.
