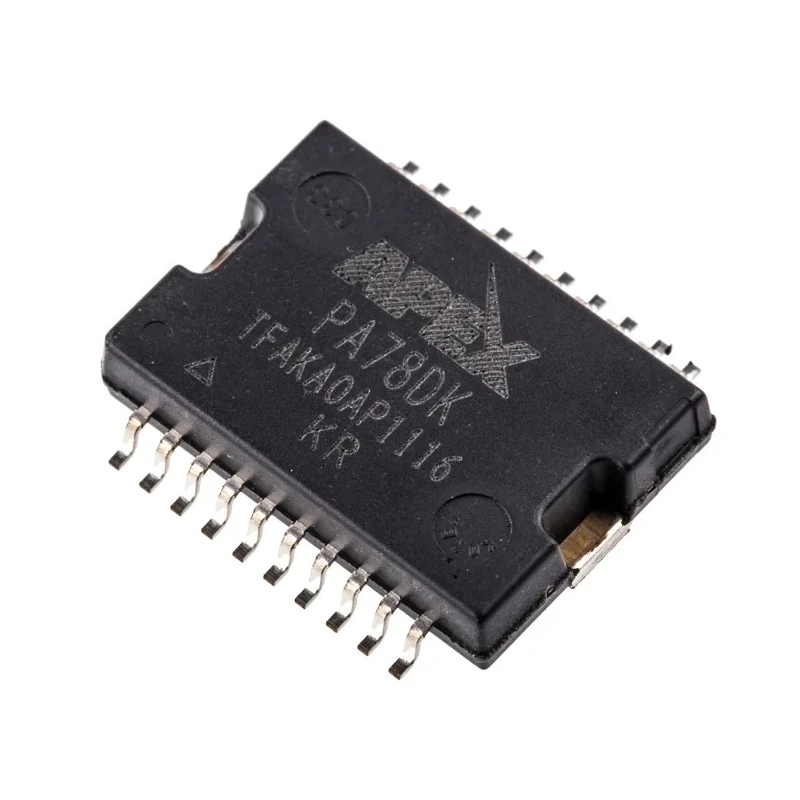

APEX Microtechnology Operational Amplifier 1 MHz Gain Bandwidth Product Surface Mount PSOP 20-Pin 350V PA78DK
Specifications
| Country of Origin | India |
|---|---|
| Brand | APEX Microtechnology |
| Height | 3.4mm |
| Length | 16mm |
| Model | PA78DK |
| Width | 11.1mm |
| Mount Type | Surface |
| Series | PA78 |
| Output Current | 150mA |
| Maximum Operating Temperature | 125°C |
| Package Type | PSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 716-5955Brand: APEX MicrotechnologyManufacturers Part No.: PA78DK |
| Pin Count | 20 |
| Maximum Supply Voltage | 350V |
| Minimum Supply Voltage | 300V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 200 pA |
| Vos - Input Offset Voltage | 40 mV |
| Slew Rate | 350V/μs |
| Input Offset Current | 400 pA |
Key Features
- Single channel operational amplifier optimized for power applications.
- Gain bandwidth product of 1 MHz suitable for precision signal amplification.
- Wide supply voltage range from 300V minimum to 350V maximum.
- Low input bias current of 200 pA for enhanced accuracy.
- Input offset voltage of 40 mV and input offset current of 400 pA for stable performance.
- Slew rate of 350 V/μs allowing for fast signal response.
- Operates across temperature range from -40°C up to 125°C for industrial reliability.
- Output current rated at 150 mA for driving demanding loads.
Product Description
APEX Microtechnology's PA78DK operational amplifier is a single-channel power operational amplifier offering a gain bandwidth product of 1 MHz. Encased in a 20-pin PSOP (Plastic Small Outline Package) surface mount package, it supports high voltage operation with supply voltages ranging from 300V up to 350V, making it suitable for demanding electronic circuits requiring precision amplification.
Designed for high reliability in industrial applications, the amplifier maintains performance across a wide operating temperature range of -40°C to 125°C. It features a low input bias current of 200 pA and an input offset voltage of 40 mV, ensuring minimal distortion and accurate signal processing. The slew rate of 350 V/μs supports fast transient response, ideal for dynamic signal environments.
The PA78DK offers a robust output current capability of 150 mA, allowing it to drive various loads efficiently. Its compact dimensions (16 mm length, 11.1 mm width, and 3.4 mm height) and surface mount PSOP package facilitate easy integration on printed circuit boards in electronic manufacturing.
This amplifier is ideal for industrial, laboratory, and embedded system applications including precision signal conditioning, power amplification in control systems, and high voltage signal processing in automation equipment. It is not automotive grade and does not have specific standards or approvals.
Single-channel power Operational Amplifier for high voltage use. 1 MHz gain bandwidth product suitable for precision amplification. Wide supply voltage range from 300V to 350V. Low input bias and offset currents for enhanced accuracy.
High slew rate of 350 V/μs ensures fast response times. Supports operating temperature range of -40°C to 125°C. Compact PSOP surface mount package reduces board footprint. Output current capability of 150 mA for demanding load conditions.
Suitable for industrial, laboratory, and embedded electronic applications. Explore our Electronics & Electricals category for more semiconductor and amplifier solutions to optimize your designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PA78DK operational amplifier has a gain bandwidth product of 1 MHz, making it suitable for precision signal amplification.
The maximum supply voltage for the PA78DK is 350V, while the minimum supply voltage is 300V.
It can deliver an output current of up to 150 mA, allowing it to drive demanding loads efficiently.
This operational amplifier operates across a temperature range from -40°C to 125°C, ensuring reliability in industrial applications.
The input bias current for this model is 200 pA, which contributes to its enhanced accuracy.
The dimensions of the PA78DK are 16 mm in length, 11.1 mm in width, and 3.4 mm in height.
The PA78DK has a slew rate of 350 V/μs, allowing for fast signal response in dynamic environments.
This model is a single-channel operational amplifier, designed for high voltage applications.
The input offset voltage for this operational amplifier is 40 mV, which helps maintain stable performance.
It is encased in a 20-pin PSOP (Plastic Small Outline Package) surface mount package, facilitating easy integration on circuit boards.
This operational amplifier is suitable for industrial, laboratory, and embedded system applications, including precision signal conditioning and power amplification.
The PA78DK is manufactured in India.
