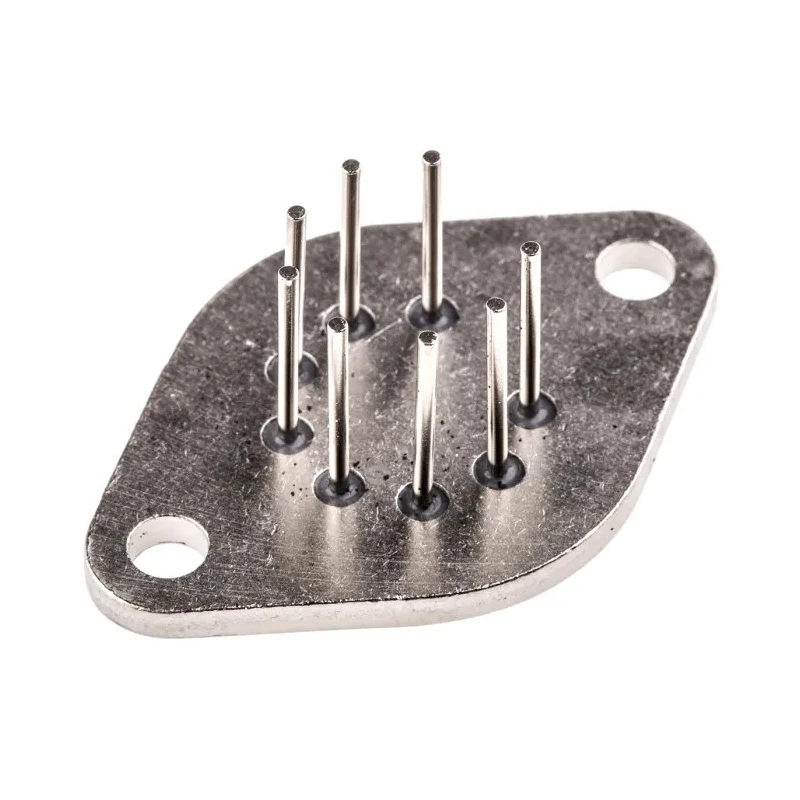

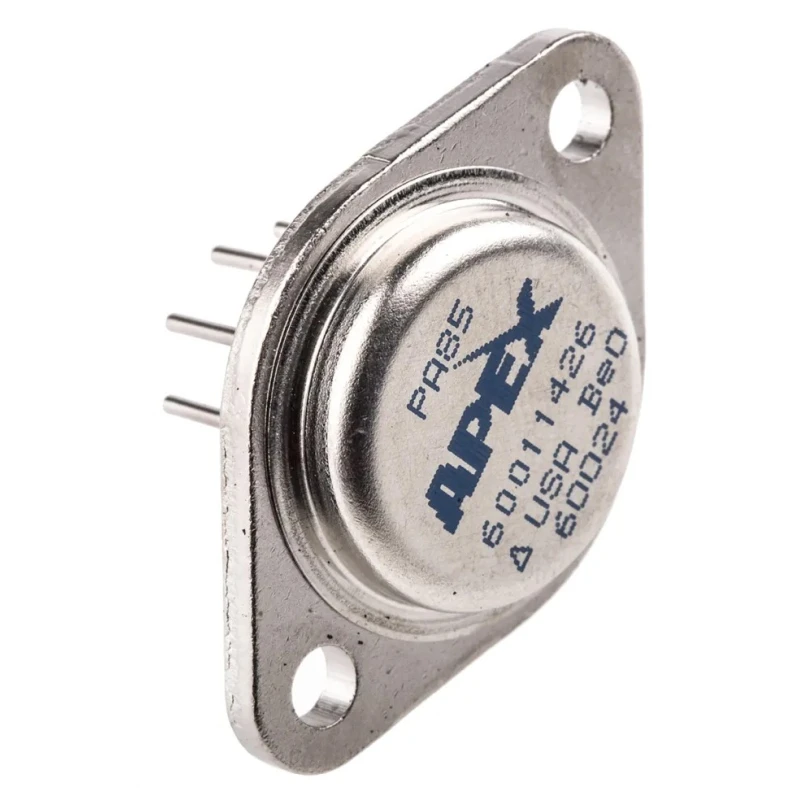

APEX Microtechnology Operational Amplifier 100 MHz Gain Bandwidth Product 8-Pin TO-3 PA85
Specifications
| Country of Origin | United States |
|---|---|
| Brand | APEX Microtechnology |
| Height | 6.4mm |
| Length | 38.9mm |
| Model | PA85 |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | PA85 |
| Output Current | 200mA |
| Maximum Operating Temperature | 85°C |
| Package Type | TO-3 |
| Minimum Operating Temperature | -25°C |
| Number Of Channels | 1 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 716-5968Brand: APEX MicrotechnologyManufacturers Part No.: PA85 |
| Pin Count | 8 |
| Maximum Supply Voltage | 450V |
| Minimum Supply Voltage | 225V |
| GBP - Gain Bandwidth Product | 100MHz |
| Input Bias Current | 50 pA |
| Vos - Input Offset Voltage | 2 mV |
| Slew Rate | 1000V/μs |
| Input Offset Current | 100 pA |
Key Features
- Designed for high-speed analog signal processing applications.
- Single channel amplifier with 8 pins in TO-3 package.
- Operates with supply voltages ranging from 225V to 450V.
- Features a gain bandwidth product of 100 MHz and slew rate of 1000 V/μs.
- Stable operation in temperatures from - 25°C to 85°C.
- Low input bias current of 50 pA and input offset voltage of 2 mV.
- Maximum output current capability of 200 mA.
- Manufactured in the United States, ensuring quality and reliability.
Product Description
APEX Microtechnology PA85 is a high-performance operational amplifier designed for precision analog applications requiring high voltage and bandwidth. This single channel operational amplifier comes in a robust 8-pin TO-3 package supporting through-hole mounting, suitable for industrial and laboratory instrumentation.
With a gain bandwidth product of 100 MHz, the PA85 is capable of handling high speed analog signals with fast slew rates up to 1000 V/μs, making it ideal for applications such as power amplification, signal conditioning, and high-frequency filtering in sectors including industrial automation, test and measurement, and aerospace.
The device operates within a wide supply voltage range from 225V minimum to 450V maximum, offering flexibility in power electronic designs. It also exhibits a low input bias current of 50 pA and an input offset voltage of 2 mV, contributing to high accuracy signal amplification.
Operating temperature range from -25°C to 85°C makes the PA85 suitable for demanding environments. Its maximum output current of 200 mA allows it to drive moderate loads efficiently. The physical dimensions of 38.9mm length, 25.4mm width, and 6.4mm height facilitate integration into various PCB layouts.
Designed for high-speed analog signal processing applications. Single channel amplifier with 8 pins in TO-3 package. Operates with supply voltages ranging from 225V to 450V. Features a gain bandwidth product of 100 MHz and slew rate of 1000 V/μs.
Stable operation in temperatures from - 25°C to 85°C. Low input bias current of 50 pA and input offset voltage of 2 mV. Maximum output current capability of 200 mA. Manufactured in the United States, ensuring quality and reliability.
This Operational Amplifier meets demanding requirements in industrial, laboratory, aerospace, and commercial electronics applications. It does not carry any automotive standard certification.
Explore the Electronics & Electricals category at EnvMart for similar semiconductor and amplifier products from trusted brands like APEX Microtechnology.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PA85 operational amplifier features a gain bandwidth product of 100 MHz, allowing it to handle high-speed analog signals effectively.
This operational amplifier operates with a maximum supply voltage of 450V, providing flexibility for various power electronic designs.
The PA85 can operate in temperatures ranging from -25°C to 85°C, making it suitable for demanding environments.
It has a maximum output current capability of 200 mA, allowing it to drive moderate loads efficiently.
The slew rate of this model is 1000 V/μs, enabling fast response to changes in input signals.
This operational amplifier is a single channel device, designed for high-speed analog signal processing applications.
The dimensions of this operational amplifier are 38.9 mm in length, 25.4 mm in width, and 6.4 mm in height.
The PA85 is packaged in an 8-pin TO-3 package, suitable for through-hole mounting.
The input bias current for the PA85 is 50 pA, contributing to its high accuracy in signal amplification.
The input offset voltage of this model is 2 mV, which helps ensure precision in amplification.
This operational amplifier is suitable for applications such as power amplification, signal conditioning, and high-frequency filtering in industrial and laboratory settings.
The PA85 is manufactured in the United States, ensuring quality and reliability in its performance.
