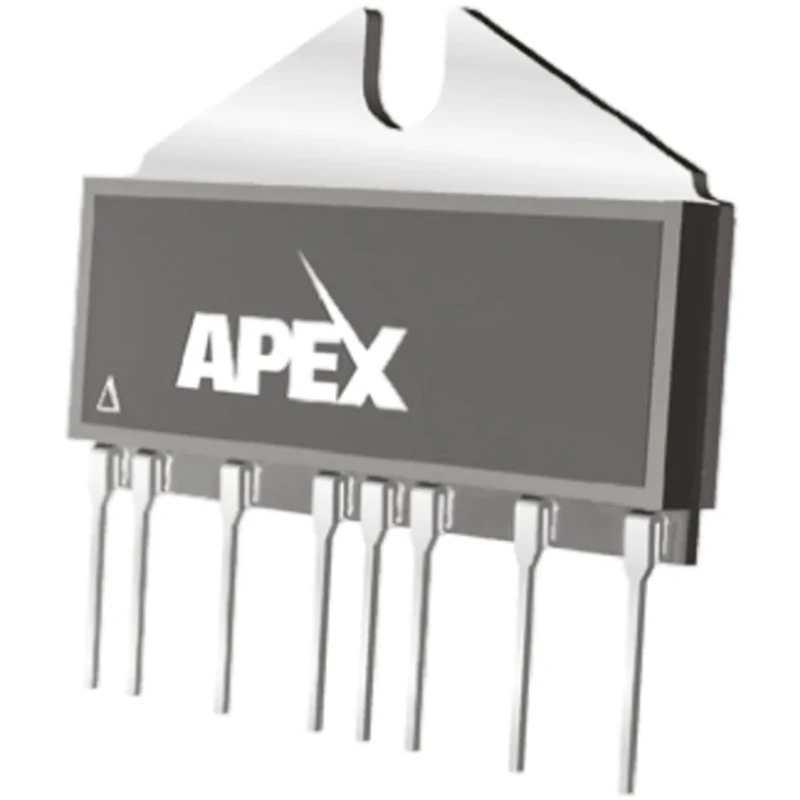

APEX Microtechnology Operational Amplifier, 140 MHz, 8-Pin SIP Package, 450V-900V Supply PA94

APEX Microtechnology PA94 is a high-performance operational amplifier specifically designed for power electronic applications. It operates with a gain bandwidth product of 140 MHz, providing rapid amplification suitable for demanding circuits.

This operational amplifier is housed in an 8-pin SIP (Single Inline Package) suitable for through-hole mounting on printed circuit boards. The device operates over a wide supply voltage range, supporting a minimum of 450V up to a maximum of 900V, making it ideal for high-voltage power systems.

The PA94 amplifier features a low input bias current of 2000 pA and an input offset voltage of 5 mV, ensuring precise signal manipulation in sensitive electronic circuits. Its high slew rate of 700 V/μs allows the output to change rapidly with input signal variations, enhancing response speed.

The device can operate reliably within temperatures ranging from -25°C to 85°C, supporting a wide variety of industrial and commercial environmental conditions. With an output current capability of 100 mA, it is robust enough to drive demanding loads.

The compact size with dimensions approximately 31 mm in length, 29.5 mm in width, and 21.84 mm in height facilitates easy integration in electronic assemblies. This part does not conform to automotive standards and has no additional approvals listed.

Single-channel amplifier designed for power electronic circuits. High gain bandwidth product ensures efficient amplification. Wide supply voltage range suitable for high-voltage applications. Stable operation across an extended temperature range.

Compact 8-pin SIP package for through-hole mounting. Low input bias current and offset voltage for accuracy. Fast slew rate enhances signal dynamics. Robust output current capacity for driving loads. Ideal for industrial, manufacturing, and laboratory use.

This product is part of the PA94 series by APEX Microtechnology, known for its power Operational Amplifiers. It is most suitable for applications in electronics manufacturing, industrial controls, instrumentation, and power signal processing.
