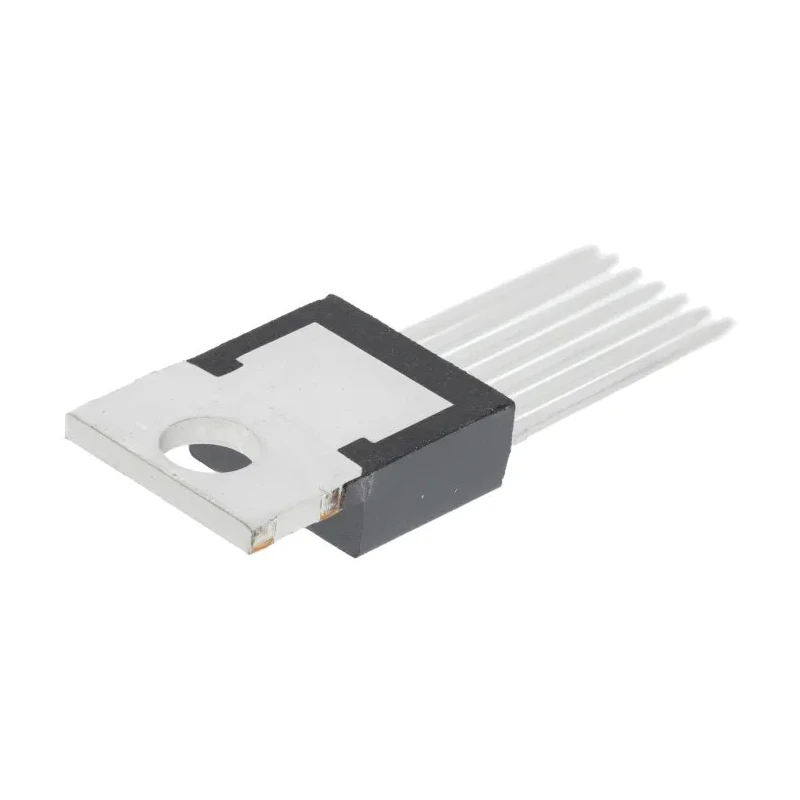

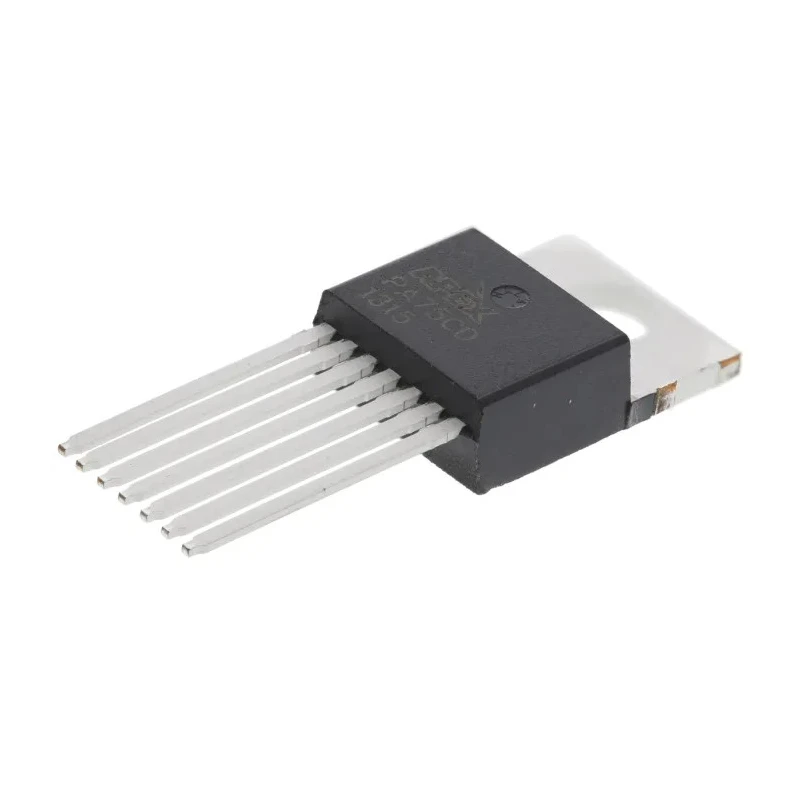

APEX Microtechnology Operational Amplifier 1.4 MHz 7-Pin Through Hole TO-220 Package 40V PA75CD
Specifications
| Country of Origin | India |
|---|---|
| Brand | APEX Microtechnology |
| Height | 14.98mm |
| Length | 10.54mm |
| Model | PA75CD |
| Width | 4.83mm |
| Mount Type | Through Hole |
| Series | PA75 |
| Output Current | 2.5A |
| Maximum Operating Temperature | 85°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -25°C |
| Number Of Channels | 2 |
| Pin Count | 7 |
| Maximum Supply Voltage | 40V |
| Minimum Supply Voltage | 30V |
| GBP - Gain Bandwidth Product | 1.4MHz |
| Input Bias Current | 500 nA |
| Vos - Input Offset Voltage | 15 mV |
| Slew Rate | 1.4V/μs |
Key Features
- Features a through hole mount with a TO-220 package for easy PCB installation.
- Operates within a supply voltage range of 30 to 40 volts.
- Includes two channels and seven pins for flexible circuit design.
- Provides an output current capacity of 2.5A for power applications.
- Maintains an input bias current of 500 nA and an input offset voltage of 15 mV.
- Supports operation in temperature ranges from -25°C to 85°C.
- Boasts a slew rate of 1.4 V/μs ensuring fast response in signals.
- Compact dimensions with a length of 10.54mm, width of 4.83mm, and height of 14.98mm.
Product Description
APEX Microtechnology PA75CD Operational Amplifier is a dual-channel semiconductor device housed in a durable TO-220 through-hole package. With a high gain bandwidth product of 1.4 MHz and a maximum supply voltage up to 40V, it is engineered for reliable performance in electronic amplification and signal processing applications.
This operational amplifier supports an output current of 2.5A and features a low input bias current of 500 nA, enabling efficiency in both industrial and laboratory electronics. The input offset voltage of 15 mV and a slew rate of 1.4 V/μs make it suitable for precise analog signal handling.
Designed to operate under a broad temperature range from -25°C to 85°C, this device withstands various environmental conditions. Its compact dimensions - 10.54mm in length, 4.83mm in width, and 14.98mm in height - facilitate integration into compact PCB layouts.
Applications include industrial amplification systems, power electronics, instrumentation, and other electronics requiring reliable operational amplifiers with robust design. Through hole mount type and TO-220 package enable straightforward PCB mounting.
Maximum and minimum supply voltages of 40V and 30V, respectively, ensure flexible power compatibility. Dual-channel design with 7 pins supports diverse circuit functionality. Low input bias current and offset voltage improve signal accuracy.
Wide operating temperature range enhances durability and versatility. Compact size supports efficient PCB space utilization. Explore the Electronics & Electricals category for more semiconductor components and Operational Amplifier solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product (GBP) of the APEX Microtechnology PA75CD operational amplifier is 1.4 MHz.
This operational amplifier operates with a maximum supply voltage of 40V.
It has an output current capacity of 2.5A, making it suitable for power applications.
The PA75CD operates within a temperature range of -25°C to 85°C.
This model features two channels, allowing for flexible circuit design.
The dimensions of this operational amplifier are 10.54mm in length, 4.83mm in width, and 14.98mm in height.
It is housed in a TO-220 package, designed for through-hole mounting.
The input bias current for this operational amplifier is 500 nA.
The input offset voltage is 15 mV, which helps in maintaining signal accuracy.
The slew rate of the PA75CD is 1.4 V/μs, ensuring fast response in signals.
Yes, it is designed for use in industrial amplification systems, power electronics, and instrumentation.
The PA75CD operational amplifier is manufactured in India.
