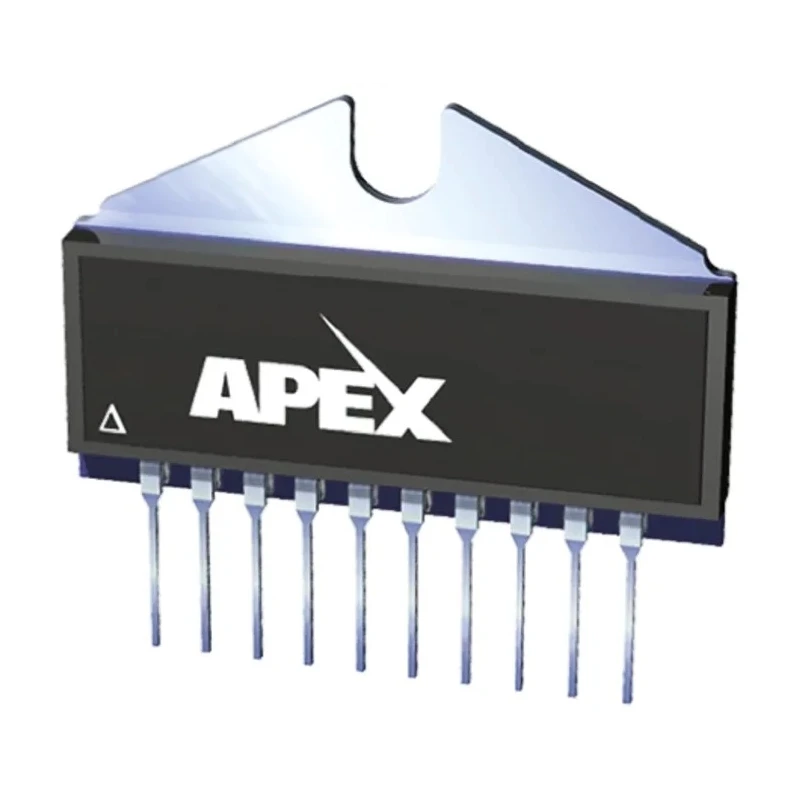

APEX Microtechnology Operational Amplifier 5.8 MHz 10-Pin SIP 450V Through Hole PA15FL

APEX Microtechnology PA15FL is a high-performance operational amplifier designed for demanding industrial and electronic applications. This device features a 5.8 MHz gain bandwidth product, making it suitable for fast and precise signal amplification tasks. Packaged in a 10-pin SIP format with through-hole mounting, it fits easily into various circuit designs requiring robust power handling.

The amplifier supports a minimum supply voltage of 225V and a maximum of 450V, allowing it to function effectively in high-voltage environments. Its input bias current is minimized to 2000 pA, ensuring accuracy in sensitive signal processing. Operating temperature range from -25°C to 85°C provides reliable performance across diverse industrial conditions.

The device features an input offset voltage of 10 mV and an input offset current of 500 pA, delivering consistent and accurate output signals. A slew rate of 20V/μs enables rapid signal transitions, suitable for dynamic electronic systems. The output current rating of 200 mA supports demanding load requirements.

Its compact dimensions (Length: 30.99 mm, Width: 6.86 mm, Height: 22.35 mm) and SIP packaging enhance ease of installation and integration into printed circuit boards.

Typical industrial uses include power amplification in electronic control systems, instrumentation, and other semiconductor amplifier applications where high voltages and quick response are critical. This amplifier is built for ruggedness and precision in power operational amplifier roles.

Features a gain bandwidth product of 5.8 MHz. Supports a wide supply voltage range from 225V to 450V. Input bias current minimized to 2000 pA for high precision. Operational temperature ranges between -25°C and 85°C. Compact 10-pin SIP package tailored for robust mounting.

Offers a slew rate of 20V/μs for fast signal response. Maximum output current of 200mA suitable for power applications. Input offset voltage and current maintained at low levels for accuracy. Length: 30.99 mm, Width: 6.86 mm, Height: 22.35 mm dimensioned for easy PCB integration.

Designed to meet power Operational Amplifier requirements in electronics and industrial controls. Explore other high-quality semiconductor amplifiers and related components in EnvMart’s Electronics & Electricals category for precision and reliable industrial solutions.
