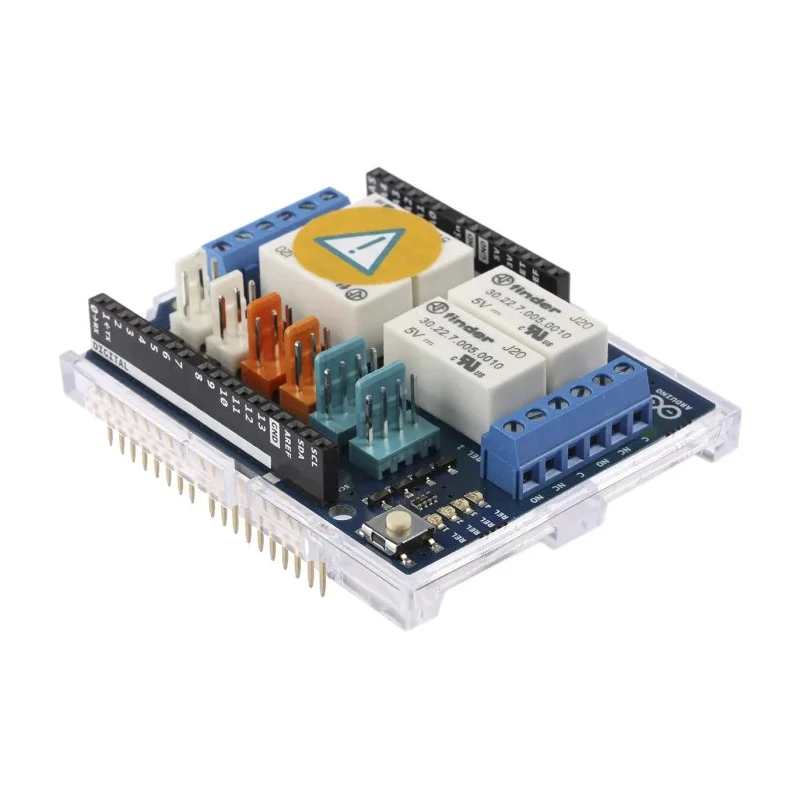

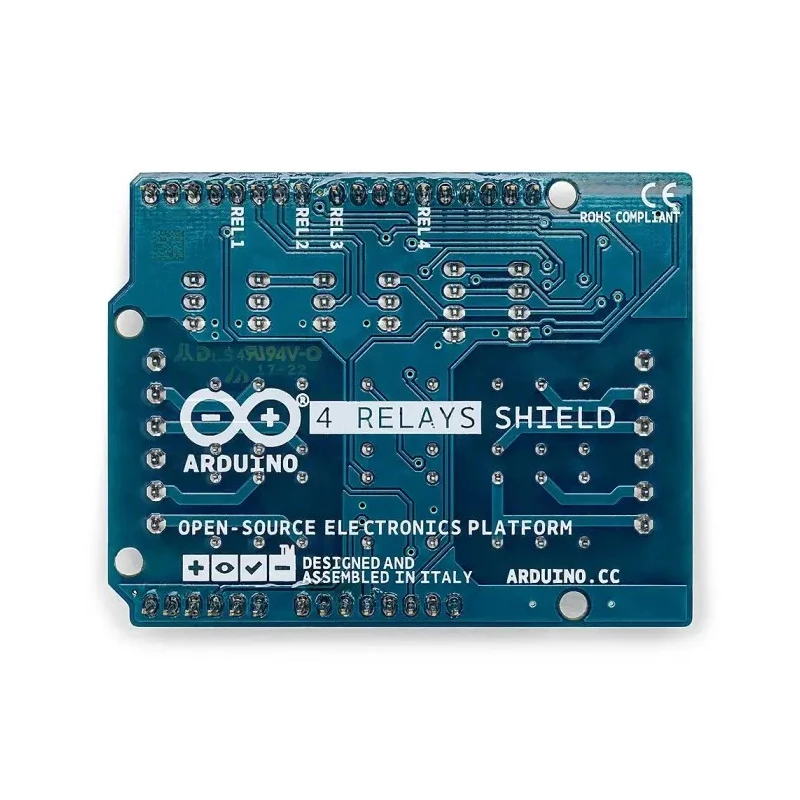

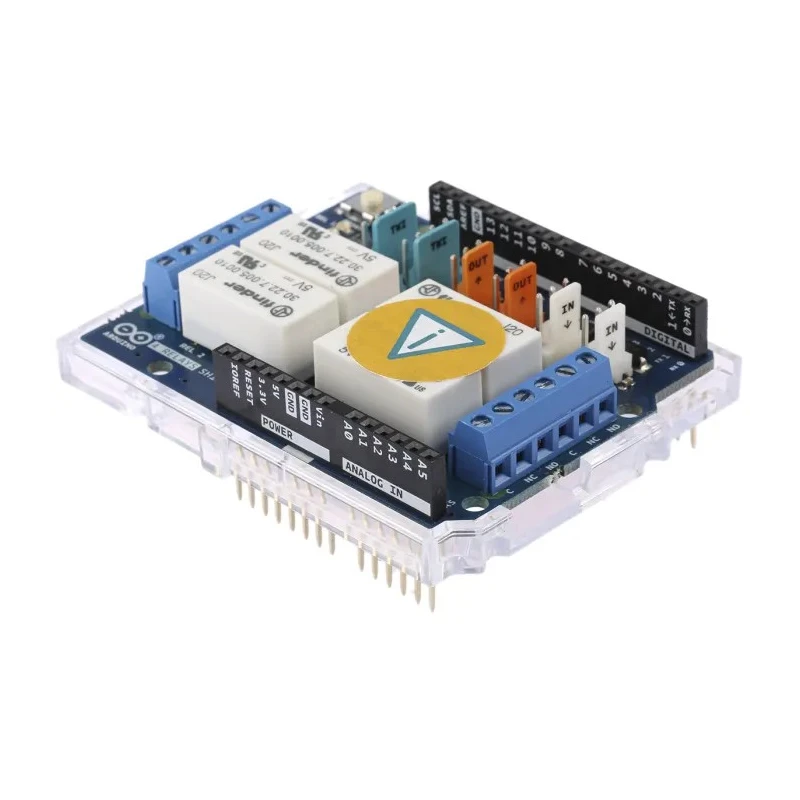

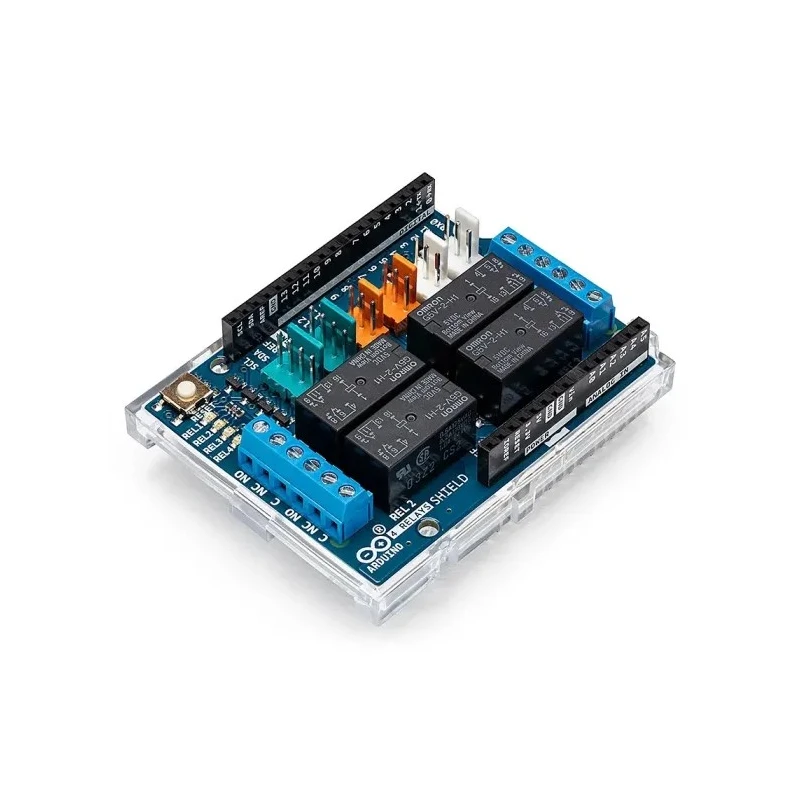

Arduino 4 Relays Shield High Load Power Delivery Arduino Shield 5V 48V A000110

Arduino A000110 4 Relays Shield is a high-quality Arduino shield designed for controlling high load power delivery in Arduino projects operating at 5V.

This shield features four independent relays equipped with normally closed (NC) and normally open (NO) pole changeovers, providing amplified and flexible current control. The compact footprint of 53x68.5 mm ensures easy integration by simply plugging onto compatible Arduino boards without requiring soldering.

The shield operates directly off the Arduino's power supply, eliminating the need for extra power inputs. It is compatible with all Arduino boards, enabling broad use for electronics development and prototyping.

Integration with various Tinkerkit modules is possible via the shield's dedicated I/O and communication interfaces to extend its functionality as needed for different applications.

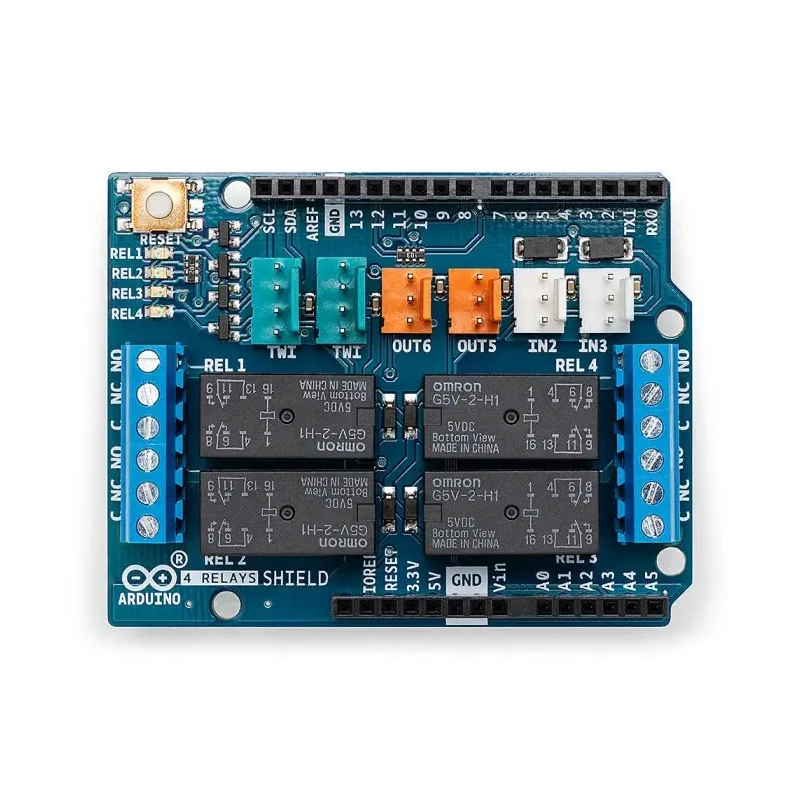

Each relay includes an LED indicator that clearly signals its status (on or off), enhancing operational feedback and debugging convenience. The four relays are controlled via Arduino pins: Relay 1 uses Pin 4, Relay 2 uses Pin 7, Relay 3 uses Pin 8, and Relay 4 uses Pin 12.

The shield supports a maximum load voltage of 48V, suitable for many electromechanical projects. The device is CE, REACH, and UKCA approved, confirming compliance with relevant European standards. This relay shield is ideal for industrial automation, electronics prototyping, educational projects, and embedded systems requiring reliable relay control boards.
