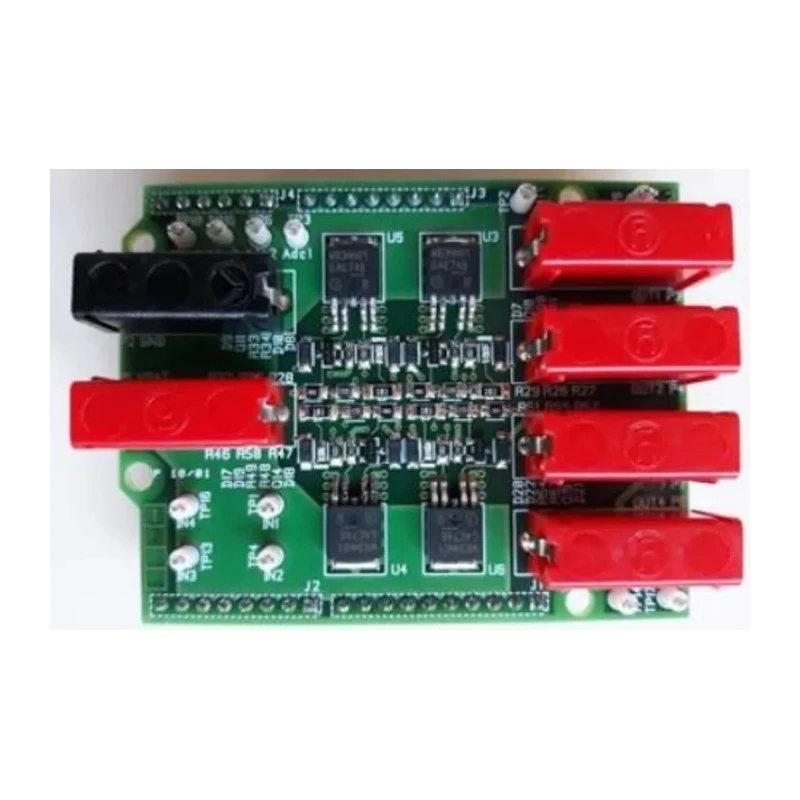

Infineon Arduino Shield Demonstration Board High Side Switch BTS50025-1TEA V1.1 BTS50025-1TEA

The Infineon BTS50025-1TEA Arduino Shield Demonstration Board is a versatile evaluation platform featuring the high side switch BTS50025-1TEA. It is compatible with Arduino boards and ARM powered Infineon XMC microcontroller kits, supporting both stand-alone and controlled operation modes. The board includes four integrated BTS50025-1TEA samples, each capable of independently driving separate loads, providing flexibility for application testing and demonstration.

This shield enables users to familiarize themselves with Infineon's High Side Switch technology and its operation in various load-driving scenarios. The design allows direct control from Arduino digital connectors, ensuring easy integration with common prototyping setups.

Additionally, the board is equipped with accessible test points facilitating easy connection of scope probes for signal monitoring, aiding in debugging and analysis tasks.

This product is ideal for educational purposes, rapid prototyping, and industrial demonstration to evaluate high side switching performance. It supports a wide range of use cases in embedded electronics development and power switching control.

The shield includes four BTS50025-1TEA switches for independent load control. Compatible with Arduino and Infineon XMC microcontroller kits. Supports stand-alone or board-controlled modes for flexible testing. Easy scope probe connections for signal monitoring and analysis.

Designed for high side switching evaluation applications. Enables rapid prototyping and demonstration of switching loads. Explore more Arduino Shields and development tools on EnvMart for your electronics projects and embedded system needs.
