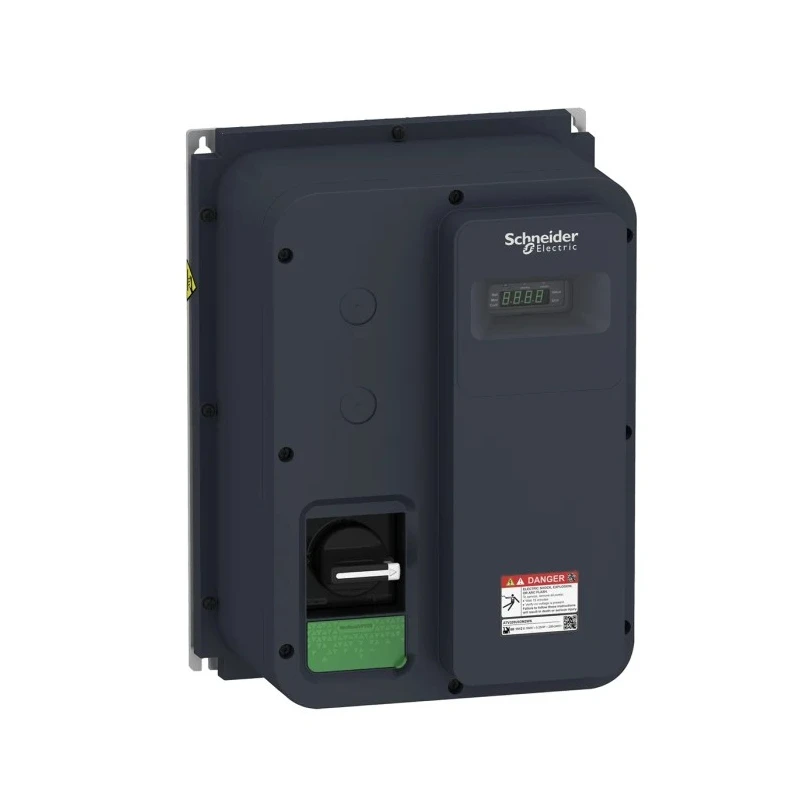

Schneider Electric Variable Speed Drive 550 W 1 Phase Wall Mount IP65 ATV320U06M2WS

Schneider Electric ATV320U06M2WS variable speed drive offers 550 W power and single-phase operation with a wall mount design and IP65 rating, making it well-suited for industrial motor control.

This model operates with supply voltages between 200 and 240 V AC, delivering a maximum output current of 3.7 A and supporting output frequency from 0.1 to 599 Hz. It accommodates asynchronous, synchronous, and AC motors, ensuring flexible usage in various machine types.

The drive provides enhanced environmental protection with IP65 ingress rating and IP66 washdown capability without a fan, incorporating an embedded EMC C2 filter to minimize electromagnetic interference. It integrates standard Modbus and CANopen protocols accessible via a front RJ45 connector for easy automation connectivity.

Built-in safety functions are configurable through SoMove software to help meet machine safety requirements. This drive is specifically designed for industrial applications including conveyors, gantry cranes, woodworking, metal processing, fans, and the food and beverage industry.

The ATV320 series supports easy integration in single or multiple drive configurations focusing on proven motor control with advanced connectivity features. It complies with multiple international standards such as IEC, UL, CSA, NOM, and REACH, ensuring reliability and regulatory compliance.

Provides power output of 550 W for asynchronous and synchronous AC motors. Operates at supply voltages from 200V to 240V AC with a maximum output current of 3.7 A. Built for tough environments with IP65 rating ensuring dust and water protection.

Supports output frequencies ranging from 0.1 Hz to 599 Hz for versatile motor speed control. Features embedded EMC C2 filter and delivers IP66 protection without a fan. Includes Modbus and CANopen communication protocols via front RJ45 connector.

Built-in safety functions configurable through SoMove software for enhanced machine safety. Suitable for conveyors, packaging machinery, gantry cranes, woodworking, metal processing, fans, and food & beverage industries.

Compact dimensions: 250 mm length, 182 mm width, and 340 mm depth. Complies with IEC, UL, CSA, and other international standards for quality and safety.

Choose Schneider Electric ATV320U06M2WS for efficient, reliable variable speed drive applications in industrial automation and control scenarios. Explore more Variable Speed Drives and Schneider Electric products at EnvMart for your industrial automation needs.
