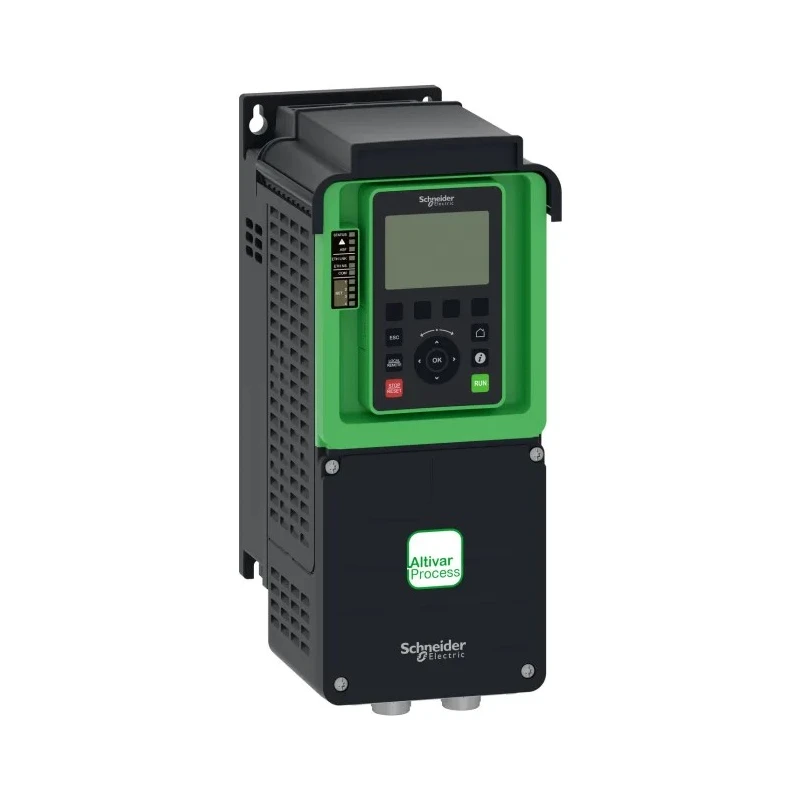

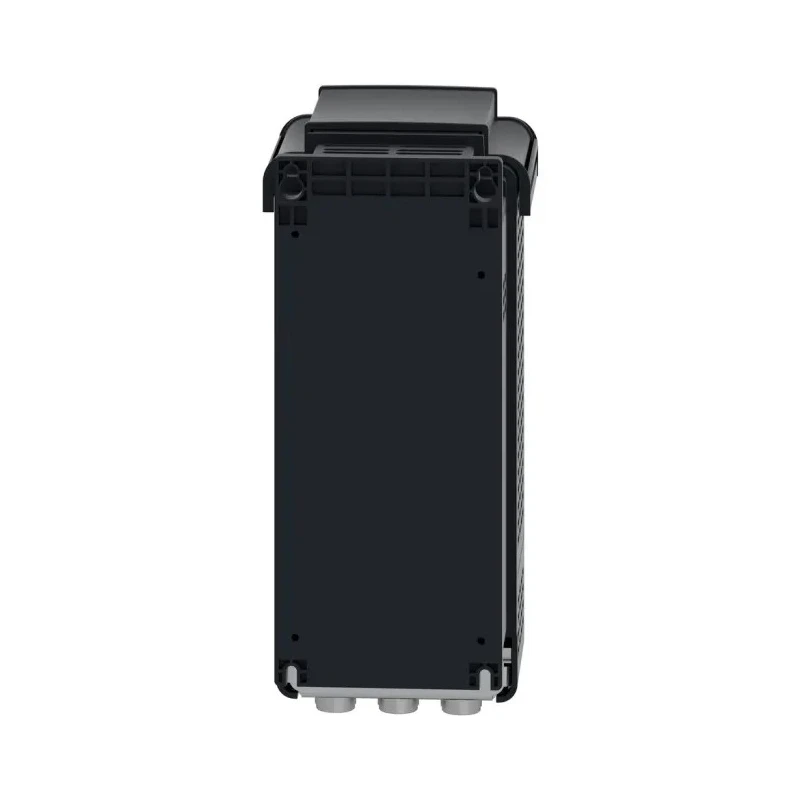

Telemecanique Variable Speed Drive 3 kW 3 Phase Altivar ATV630U30N4

Schneider Electric ATV630U30N4 variable speed drive is a high-performance Altivar Process ATV600 AC drive tailored for industrial automation and motor control applications. It features a 3 kW power rating, 3 phase 400 V AC supply, and maximum 7.2 A output current, designed to control asynchronous and synchronous motors with superior efficiency and reliability.

The drive offers advanced features including 3 integrated RJ45 communication ports, one Ethernet port, and two serial ports, facilitating seamless integration with automation systems and real-time process monitoring. These interfaces support flexible connectivity for diverse industrial protocols, enhancing operational intelligence.

Constructed for durability in demanding environments, the ATV630U30N4 has an IP21 protection class and is designed for vertical wall mounting with a tolerance of plus or minus 10 degrees. Its compact footprint (144 mm wide, 203 mm deep, and 350 mm high) allows easy installation in control cabinets or panels.

Operating across temperature ranges from -15°C to 50°C, this variable frequency drive supports motors requiring slight overloads up to 120% at 3 kW and significant overloads up to 150% at 2.2 kW. It incorporates energy-saving features, including an innovative 'Stop and Go' standby function that reduces energy consumption by up to 30% without extra costs.

This drive is especially suited for applications in fluids management, water and wastewater treatment, mining, minerals and metals processing, oil and gas sectors, as well as in the food and beverage industry. Optional accessories such as fan kits, graphic display terminals, I/O expansion modules, communication modules, and EMC input filters are available to customize the solution per specific process requirements.

Designed to control asynchronous and synchronous power motors efficiently. Supports multiple communication interfaces including Ethernet and serial ports. Compact and protected with IP21 rating for industrial environments.

Mounts vertically on walls to optimize space and installation. Feature-rich drive offering overload capability and energy-saving modes. Suitable for a wide range of industrial sectors including water, mining, oil, and food processing.

Optional modules and accessories to fit various automation needs.

Schneider Electric's Altivar ATV630U30N4 variable speed drive provides the energy management, asset management, and performance optimization essential for modern industrial applications. Explore more products within the variable frequency drives category on EnvMart to find tailored automation solutions for your requirements.
