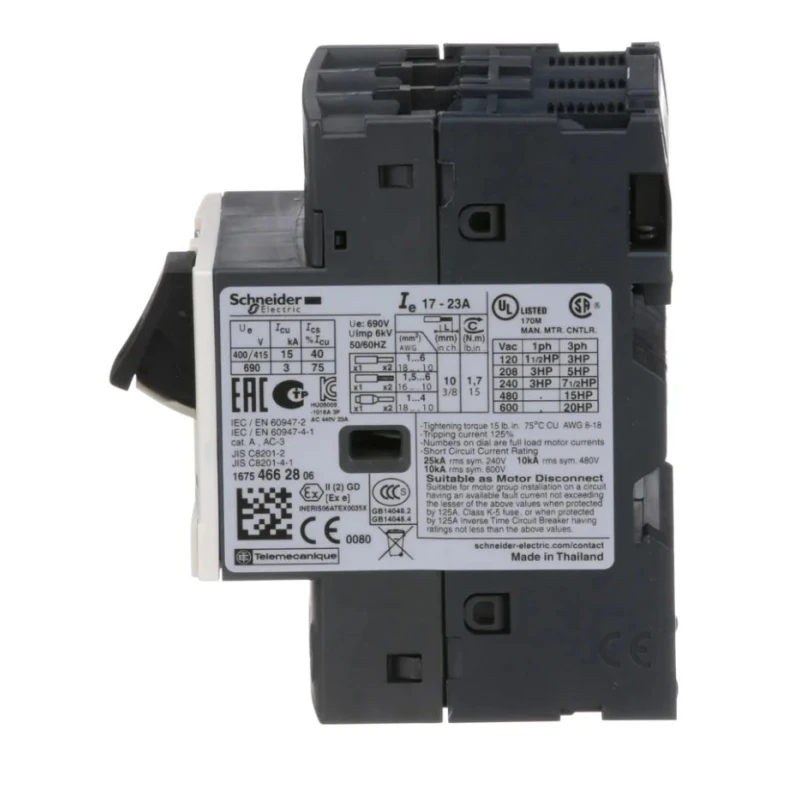

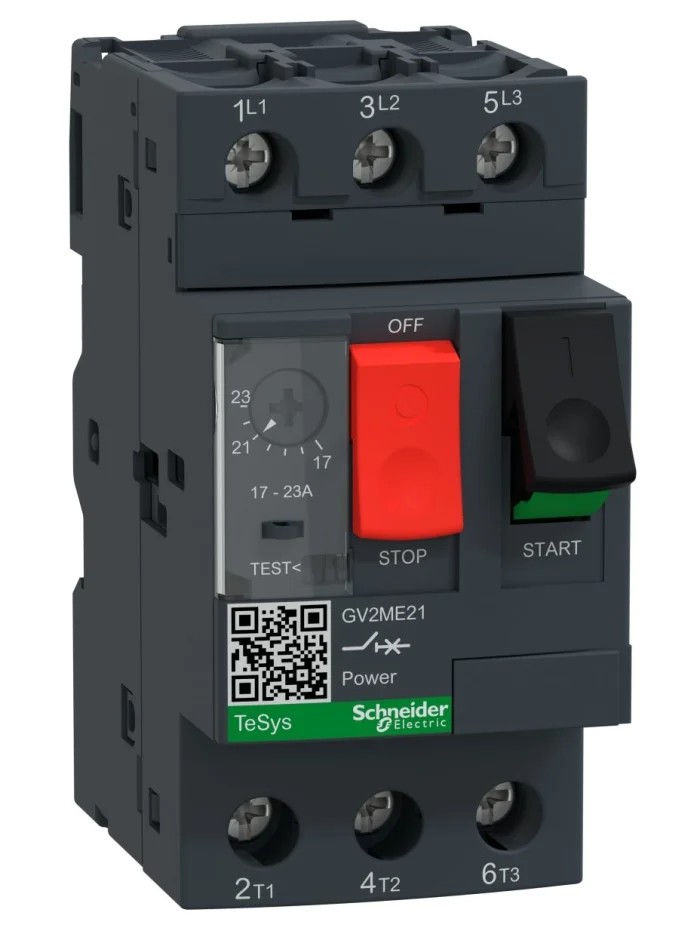

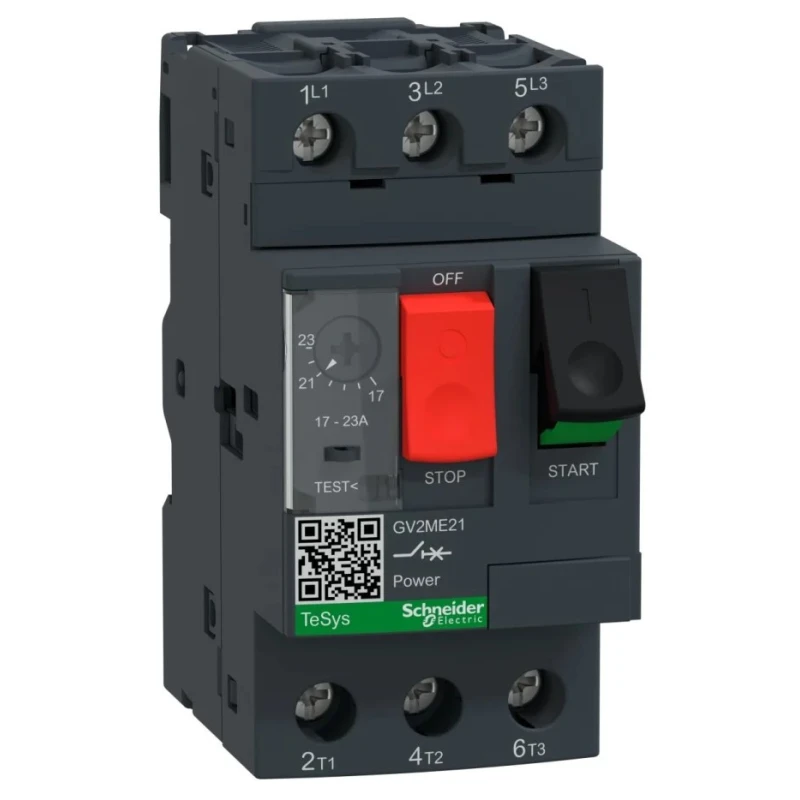

Telemecanique Motor Protection Circuit Breaker 17A to 21A, 690V, Thermal Magnetic, IP20, TeSyS GV Series GV2ME21

Schneider Electric GV2ME21 Motor Protection Circuit Breaker from the TeSyS GV series provides manual motor control and thermal overcurrent protection in a compact and robust design suitable for industrial environments. Operating at supply voltages up to 690V AC, this three-pole device offers adjustable thermal magnetic protection with a current setting range from 17 to 23 amperes, ideal for motors with full load currents up to 32 A.

Equipped with screw clamp terminals and push-button operation for start/stop, the GV2ME21 ensures reliable motor safeguarding and manual isolation. It withstands ambient temperatures from -20°C to 60°C, making it suitable for a variety of work conditions.

This Motor Protection Circuit Breaker carries an IP20 rating to prevent the ingress of solid objects larger than 12.5 mm, allowing safe handling even when energized. It is extensively certified with international standards, including IECEE CB, EAC, DNV GL, REACH/RoHS, ATEX, LROS, CCC, BV, UL, RINA, CSA, and EN/IEC 60947 series, guaranteeing robust quality and safety assurance.

The device supports applications in automated control panels, MRI equipment, rail infrastructure, and aviation engineering, reflecting its versatility in industrial, medical, transportation, and automation sectors.

Protects motors with adjustable thermal magnetic sensing for precise overcurrent response. Supports current ratings from 17 to 21 amperes ensuring flexibility for varied motor sizes. Rated for 690V AC supply voltage suitable for industrial applications.

Operates reliably in ambient temperatures ranging from -20°C to 60°C. Features a robust IP20 rated housing protecting against penetration of solid objects larger than 12.5 mm. Compact dimensions of 89 mm length, 45 mm width, and 78.5 mm depth facilitate easy panel integration.

Includes clearly marked push buttons for stop and start functions for easy motor control. Multi-standard certified with IEC, UL, CSA, CCC, EAC and others ensuring compliance and safety. Designed for disassembly under Schneider Electric’s Better World initiative promoting sustainability.

Explore the Schneider Electric category on EnvMart for quality motor protection and automation solutions tailored to your industrial and commercial needs.
