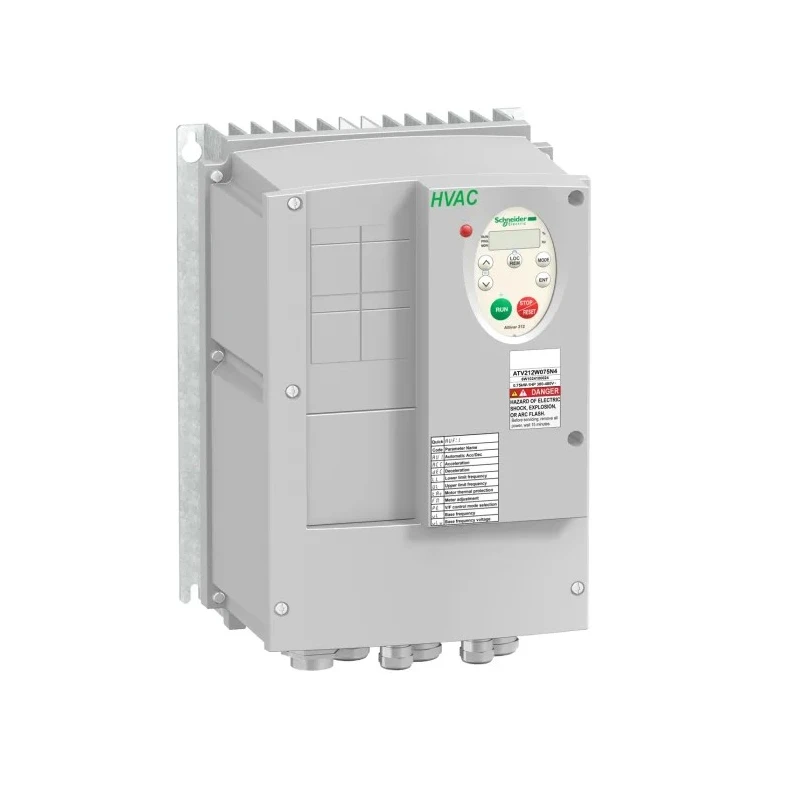

Telemecanique Inverter Drive 1.5 kW 3 Phase 400V AC 3.2 A Wall Mount IP55 ATV212WU15N4

Schneider Electric ATV212WU15N4 is a high-performance inverter drive with a rated power of 1.5 kW suitable for controlling three-phase asynchronous and AC motors. It operates on a supply voltage of 400V AC, delivering a maximum output current of 3.2A. The unit is designed for wall mounting and offers an IP55 protection rating, allowing operation in dust and damp environments typical in industrial and HVAC installations.

This inverter drive features a broad output frequency range of 0.5 Hz up to 200 Hz, enabling precise speed control to optimize motor performance. Its operational temperature range from -10°C to 50°C makes it adaptable to various ambient conditions commonly found in commercial and industrial sectors.

Measuring 215 mm in width, 297 mm in height, and 192 mm in depth, and weighing 7 kg, the device is compact and easy to install in panels with standard fixing holes. It complies with international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 for immunity and electromagnetic compatibility, plus certifications including CE, UL, CSA, C-Tick, and NOM.

With an integrated EMC filter and cable temperature rise reduction technology, the ATV212WU15N4 reduces energy consumption by up to 70% compared to conventional control systems, offering an eco-energy design that saves operational costs. It supports multiple communication protocols such as Modbus, METASYS N2, APOGEE FLN P1, and BACnet, allowing seamless integration with various building management systems.

This drive is optimized for fluid management applications such as heating, ventilation, air conditioning, and pumping systems in tertiary sector buildings. Optional motor chokes are available to extend cable lengths and reduce electrical disturbances at motor terminals. The design supports vertical mounting with a tilt tolerance of +/-10°, enhancing installation flexibility.

The drive supports variable speed control for asynchronous and AC motors. Compact wall mount design with IP55 protection for harsh environment suitability. Operational temperature range from -10°C to 50°C ensures versatility in industrial use.

Output frequency range spans 0.5 to 200 Hz for precise motor speed management. Compliant with CSA, UL, C-Tick, and NOM standards for international applications. Dimensions measure 215mm width, 297mm height, and 192mm depth with a weight of 7 kg.

Integrated EMC filter reduces electromagnetic interference during operation. Designed particularly for HVAC and fluid management applications in commercial buildings. Compatible with various building management communication protocols including Modbus and BACnet.
