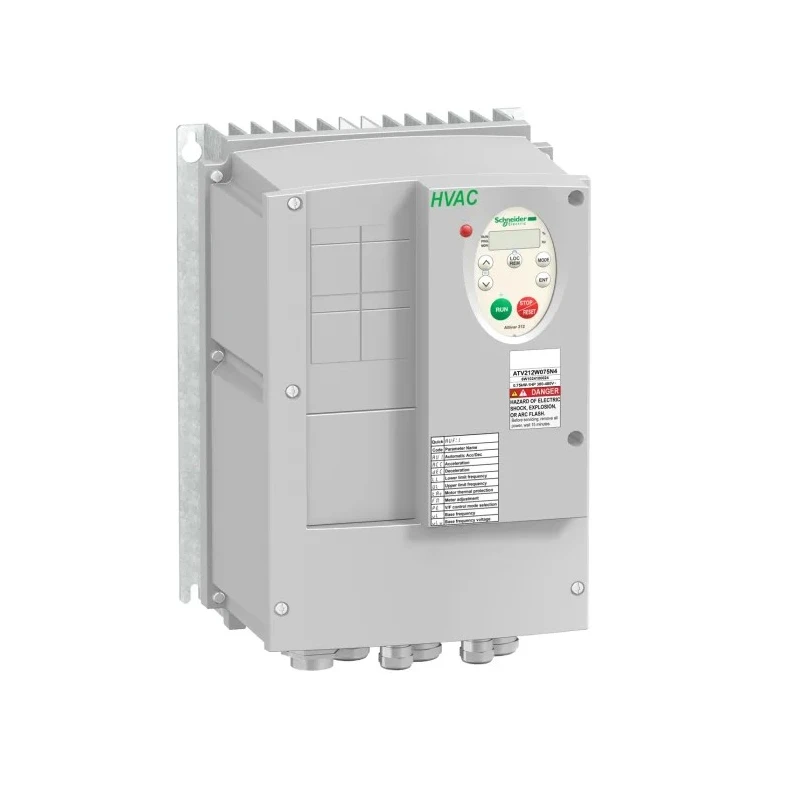

Telemecanique Schneider Electric Inverter Drive 2.2 kW 3 Phase ALTIVAR 212 Series Wall Mount IP55 ATV212WU22N4

Telemecanique ATV212WU22N4 Schneider Electric inverter drive is a high-efficiency variable frequency drive rated at 2.2 kW power output designed to provide precise speed control for asynchronous and AC motors in three-phase 400V systems.

Built to serve fluid management and HVAC applications in commercial and industrial buildings, it features an IP55 ingress protection rating, ensuring reliable operation against dust and moisture.

The drive supports an output frequency range of 0.5 Hz to 200 Hz, allowing versatile motor speed adjustment across varying operational requirements. Its built-in EMC filter and cable temperature rise reduction technology provide disturbance-free operation by minimizing electromagnetic interference and harmonic currents without the need for additional chokes.

Compliant with internationally recognized standards IEC/EN 61800-5-1 and IEC/EN 61800-3, this drive carries certifications such as CSA, UL, C-Tick, and NOM, underscoring its quality and safety credentials. It weighs approximately 7 kg and measures 297 mm in length, 215 mm in width, and 192 mm in depth, suited for convenient wall mounting with four fixing holes.

Designed to integrate seamlessly with building management systems, the ATV212WU22N4 supports multiple communication protocols including Modbus, METASYS N2, APOGEE FLN P1, and BACnet, enhancing its adaptability in complex automation environments.

Energy efficiency is a core feature, with potential reductions in energy usage up to 70% compared to conventional motor control methods. Ideal for industrial, HVAC, and commercial applications requiring precise speed regulation, energy savings, and robust electrical performance.

Provides variable speed drive for asynchronous and AC motors with 2.2 kW power output. Compatible with three-phase 400V supply with a maximum output current of 4.6 A. Features IP55 protection rating for dust and damp proof operation in industrial environments.

Operates across a frequency range of 0.5 to 200 Hz ensuring versatile motor speed control. Designed for wall mounting with compact dimensions: 297mm length, 215mm width, and 192mm depth. Supports operating temperatures from -10°C to 50°C, suitable for HVAC and fluid management systems.

Equipped with built-in EMC filter to minimize electromagnetic interference. Meets international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 with certifications including CSA, UL, C-Tick, and NOM. Reduces energy consumption by up to 70% compared to conventional control systems.

Includes multiple integrated communication protocols: Modbus, METASYS N2, APOGEE FLN P1, and BACnet. Explore the full range of Inverter Drives and motor control solutions at EnvMart for enhanced industrial and commercial automation performance.
