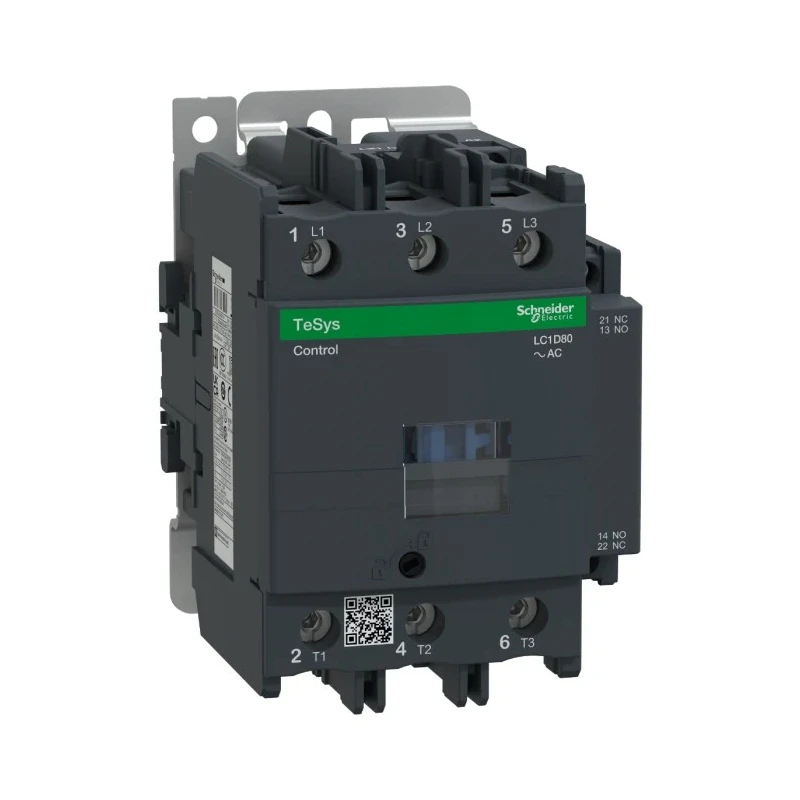

Schneider Electric Telemecanique LC1D80V7 Contactor 400V AC Coil, 3-Pole, 80 A, 45 kW, 3 NO Auxiliary, 1kV AC
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | Telemecanique |
| Function | Motor Control, Resistive Load |
| Length | 127mm |
| Model | LC1D80V7 |
| Depth | 125mm |
| Width | 85mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 45kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | UL, RoHS, IEC, EAC, CSA, CCC |
| Contact Voltage | 1kV ac |
| Coil Voltage | 400V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 80A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 80A |
| Control Circuit Voltage Uc | 400V ac |
| Contactor Application | Resistive Load, Motor Control |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
| Schneider Electric Contactor Coil for use with LC1 SeriesBrand | Schneider Electric |
| 3 pole contactor,45kW 80A 415Vac coilBrand | Telemecanique |
Key Features
- Features 3 normally open main contacts for reliable switching.
- Supports a power rating of 45 kW at 400V AC for robust motor control.
- Equipped with 2 auxiliary contacts in 1 NO and 1 NC configuration.
- Compact design with DIN rail mounting facilitates easy installation.
- Operates within a temperature range of -5°C to 60°C.
- Constructed with screw terminals for secure electrical connections.
- Meets multiple international standards including UL, IEC, CSA, CCC, EAC, and RoHS compliance.
- Suitable for use up to 3600 cycles per hour, ensuring high durability.
Product Description
Schneider Electric Telemecanique LC1D80V7 Contactor is a high-performance electrical switching device designed for industrial motor control and resistive load applications. It features a robust 3-pole configuration with 3 normally open contacts and a coil operated at 400V AC, providing reliable service up to 80 amps and 45 kW power rating at 400V AC.
This contactor is designed for demanding environments with an operational temperature range from -5°C to 60°C and supports up to 3600 operational cycles per hour. Its compact design with a width of 85mm and DIN rail mounting ensures easy integration into existing control panels.
With built-in 2 auxiliary contacts configured as 1 NO and 1 NC (with mirror certified NC contact), this product facilitates complex control schemes and enhanced safety features. Connection is secured via screw terminals with finger-safe IP20 protection, marked clearly for international standards compliance.
The LC1D80V7 contactor complies with international standards including UL, IEC, CSA, CCC, EAC, and is RoHS/REACH Green Premium certified. It accommodates motor starters for a wide range of applications such as lifts, escalators, conveyors, compressors, pumps, mixers, and HVAC systems.
Features 3 poles with 3 normally open contacts for effective motor control. Rated operational current of 80A suitable for various industrial motors. Power rating of 45kW at 400V AC supporting heavy-duty applications. Includes 2 auxiliary contacts (1 NO, 1 NC) for versatile control logic.
Compact footprint and DIN rail mount for space-saving installation. Wide operating temperature range from -5°C to 60°C ensures reliability in harsh environments. Screw terminals provide secure and easy wiring connections.
Certified to meet multiple global standards ensuring safety and quality. Designed for high operational rates and durability up to 3600 cycles/hour. Manufactured in Czech Republic, maintaining consistent quality assurance.
This contactor is ideal for various industrial, manufacturing, and commercial automation use cases where reliable motor control and switching are critical. It ensures efficient and safe power management in electrical control panels and motor starter assemblies.
Explore the full range of Schneider Electric contactors and similar automation components in the Electronics & Electricals section at EnvMart to find compatible accessories and complementary products suited for your industrial automation needs.
Explore more products in our Automation & Control Gear category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC1D80V7 contactor has a power rating of 45 kW at 400V AC, making it suitable for robust motor control applications.
This model supports a maximum operational current of 80A, which is suitable for various industrial motors.
The contactor operates within a temperature range of -5°C to 60°C, ensuring reliability in various environments.
The LC1D80V7 is equipped with 2 auxiliary contacts, configured as 1 normally open (NO) and 1 normally closed (NC).
It features screw terminals that provide secure electrical connections and are designed with IP20 finger-safe protection.
The dimensions of the LC1D80V7 contactor are 127mm in length, 125mm in depth, and 85mm in width.
This model is designed for DIN rail mounting, facilitating easy installation in control panels.
The contactor complies with multiple international standards including UL, IEC, CSA, CCC, EAC, and RoHS.
This contactor is suitable for applications such as lifts, escalators, conveyors, compressors, pumps, mixers, and HVAC systems.
The contactor can support up to 3600 operational cycles per hour, ensuring high durability in demanding environments.
The coil voltage for this model is 400V AC, which is standard for many industrial applications.
The LC1D80V7 contactor is manufactured in the Czech Republic, ensuring consistent quality assurance.
