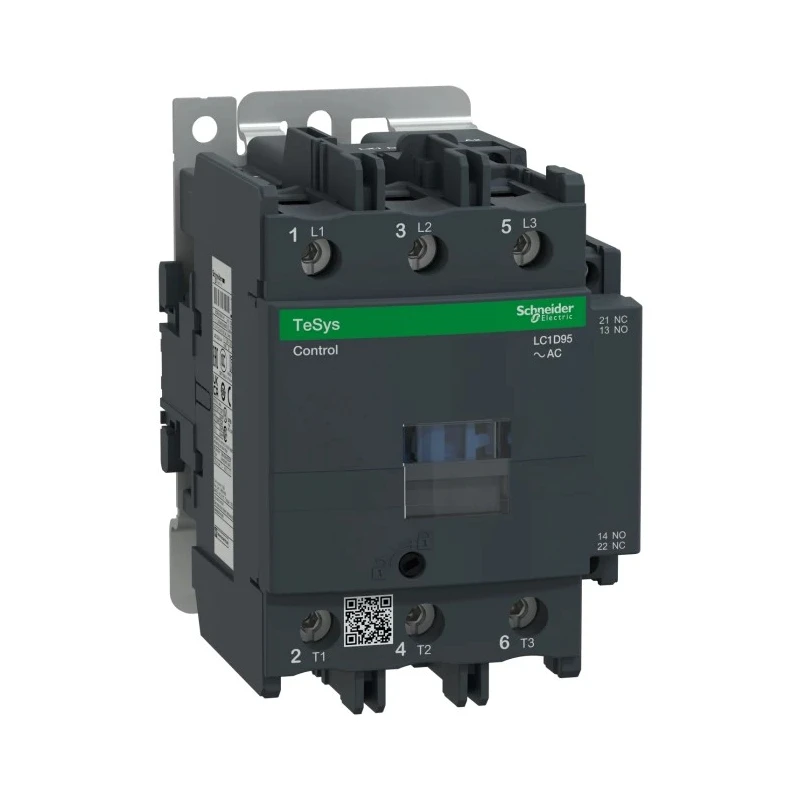

Schneider Electric TeSys Deca Contactor 3-Pole 95 A 45 kW 230V AC Coil LC1D95P7

Schneider Electric LC1D95P7 is a high-performance TeSys Deca contactor featuring a 230V AC coil, designed for industrial motor control and resistive load applications. This contactor is rated for 95 amps and delivers a power rating of 45 kW at 230V AC. It includes three power poles and three normally open contacts, supporting applications requiring up to 1 kV contact voltage.

The device supports DIN rail mounting and screw fixing, making it convenient for industrial panel installations. It is capable of operating at up to 3600 cycles per hour and is suitable for environments with temperatures ranging from -40°C to 60°C, ensuring reliable operation in diverse industrial conditions. The auxiliary contacts consist of one normally open and one normally closed contact, aiding in control and signaling circuits.

With screw-clamp terminals for both load and auxiliary connections, the contactor ensures secure and maintenance-friendly wiring. Its compact form factor with dimensions of 85mm width, 127mm length, and 125mm depth allows easy integration within control cabinets.

Schneider Electric LC1D95P7 meets rigorous international standards including IEC, UL, CSA, CCC, EAC, and RoHS, qualifying it as a Green Premium product designed for sustainability and disassembly. Its flame-retardant construction provides enhanced safety by reducing fire risk.

This contactor finds applications in industries such as oil and gas, mining and minerals processing, and automotive manufacturing, where durable and efficient motor control solutions are critical.

Designed with three poles and rated for 95 A contact current. Capable of handling a power rating of 45 kW at 230V AC. Equipped with 3 normally open contacts and 1 kV AC contact voltage. Mounts easily on DIN rail, suitable for 3600 cycles/hour operation.

Auxiliary contacts include one normally open and one normally closed built-in contacts. Constructed with screw-clamp terminals for secure wiring connections. Operates effectively within a temperature range of -40°C to 60°C.

Compact dimensions: width 85mm, length 127mm, depth 125mm enhance installation flexibility. Certified to IEC, UL, CSA, CCC, EAC, and RoHS standards. Ideal for motor control and resistive load applications across industrial sectors.

Designed with flame-retardant materials for enhanced safety. Explore the complete range of Schneider Electric automation and control gear products on EnvMart for reliable and efficient industrial solutions.
