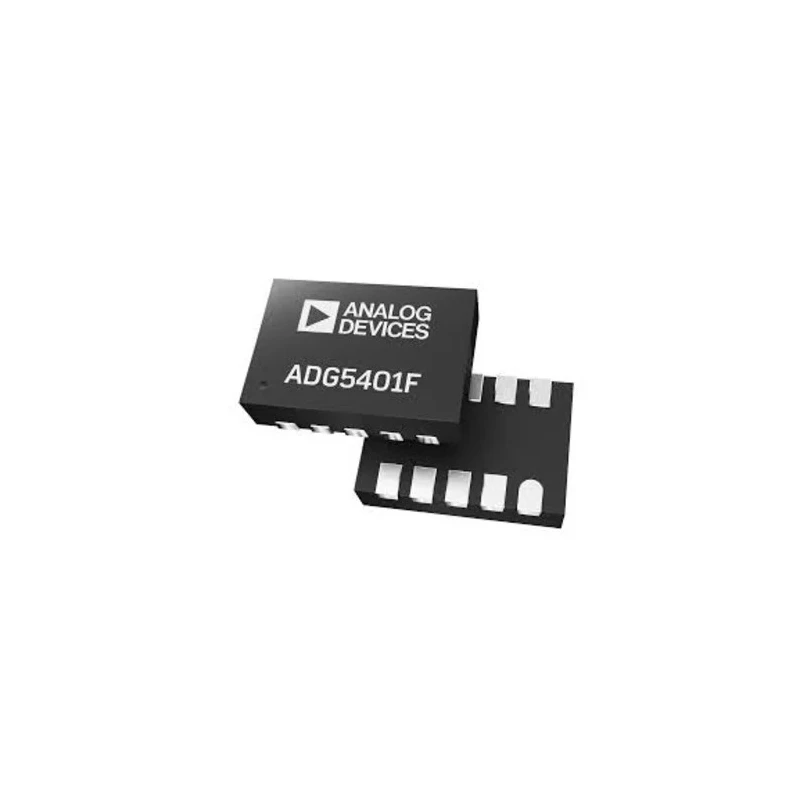

Analog Devices Low Side Power Switch IC, 10-Pin LFCSP Package, 8V-44V Supply Voltage, 8.5Ω RdsOn, Model ADG5401FBCPZ-RL7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Analog Devices |
| Model | ADG5401FBCPZ-RL7 |
| Mount Type | Surface |
| Series | ADG5401F |
| Maximum Operating Temperature | 85°C |
| Package Type | LFCSP |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 10 |
| Maximum Supply Voltage | 44V |
| Minimum Supply Voltage | 8V |
| Switch On Resistance RdsOn | 8.5Ω |
Key Features
- The IC operates between 8V and 44V supply voltage range.
- It has a low switch on resistance of 8.5 ohms to minimize power losses.
- Surface mount device designed for easy PCB integration.
- Operates reliably between -40°C and 85°C ambient temperatures.
- Includes overvoltage protection and power-off protection features.
- Has a single output channel with low side switch topology.
- Package size and pin count support compact and efficient design requirements.
- RoHS compliant, ensuring environmentally safe production.
Product Description
Analog Devices ADG5401FBCPZ-RL7 is a low side power switch integrated circuit designed for precise power management in electronic systems. Encased in a compact 10-pin LFCSP surface mount package, this IC supports supply voltages from 8V up to 44V, making it adaptable for a broad range of applications.
The device incorporates a low switch on resistance (RdsOn) of 8.5 ohms, which efficiently reduces power dissipation during operation. With robust protection features including overvoltage, power-off protection, and overvoltage detection on the source pins, it enhances system reliability and safety.
Operating within a temperature range from -40°C to 85°C, this Power Switch IC is suitable for demanding industrial, automotive, and commercial electronics applications requiring robust performance under varying environmental conditions.
The single output low side switch design, along with a protected secondary feedback channel for digital-to-analog converter and amplifier outputs, enables comprehensive analog output protection and detection solutions. Its latch-up immunity and optimized resistance characteristics make it ideal for precise power switching scenarios.
Typical use cases include industrial automation control systems, power distribution circuits, and equipment requiring reliable power switching and feedback detection. Its compact footprint facilitates integration into space-constrained PCB layouts.
The IC provides a low resistance switch to optimize efficiency. Includes multiple protection features to safeguard circuits. Meets RoHS environmental compliance standards. Surface mount 10-pin LFCSP package supports compact design.
Supports operating temperature from -40°C to 85°C. Suitable for industrial, commercial, and automotive power management. Part of the ADG5401F series offering consistent performance.
Explore the extensive range of power management integrated circuits in the EnvMart catalog to find complementary components for your electronic design projects and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Analog Devices ADG5401FBCPZ-RL7 operates within a supply voltage range of 8V to 44V.
It has a low switch on resistance (RdsOn) of 8.5 ohms, which helps minimize power losses during operation.
This unit operates reliably within a temperature range of -40°C to 85°C.
The device features a single output channel with a low side switch topology.
It is encased in a compact 10-pin LFCSP (Lead Frame Chip Scale Package) surface mount package, facilitating easy PCB integration.
It includes overvoltage protection, power-off protection, and overvoltage detection on the source pins to enhance system reliability.
Yes, the ADG5401FBCPZ-RL7 meets RoHS environmental compliance standards, ensuring environmentally safe production.
Typical use cases include industrial automation control systems, power distribution circuits, and equipment requiring reliable power switching and feedback detection.
This model has a pin count of 10, and its compact footprint supports integration into space-constrained PCB layouts.
The country of origin for this power switch IC is India.
The low side switch topology allows for efficient power management and control in various electronic systems, enhancing overall performance.
