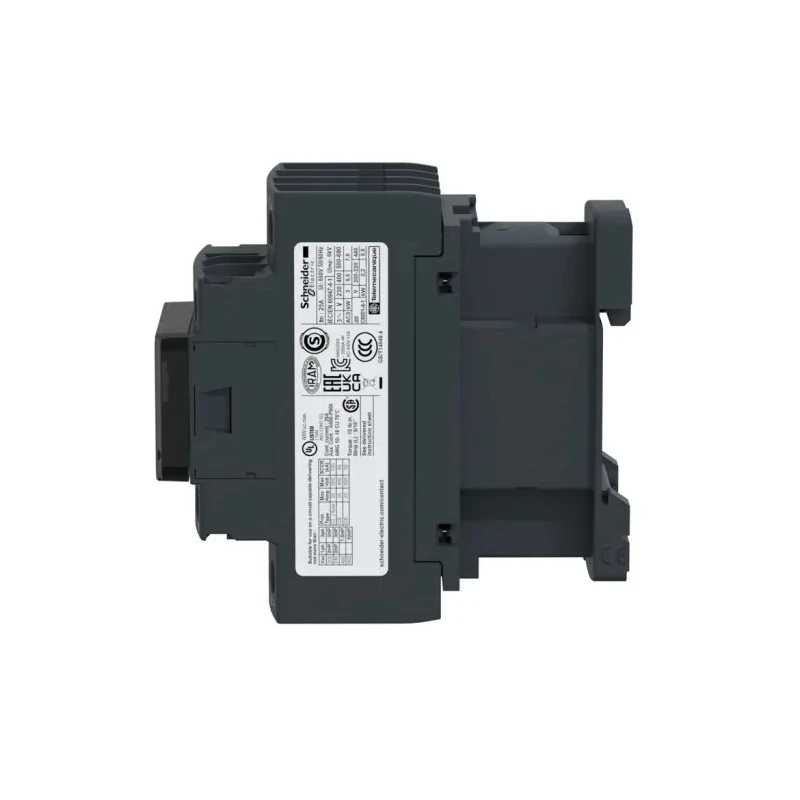

Schneider Electric LC1D Contactor, 24V AC Coil, 4-Pole, 25A Resistive Load, 1.56W Power Rating LC1DT25B7
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 85mm |
| Model | LC1DT25B7 |
| Depth | 90mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 1.56W |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Protections | I/P and O/P under and overvoltage protection, O/P open/no load circuit protection, O/P short/overload circuit protection |
| Number of Poles | 4 |
| Standards/Approvals | UL, RoHS, IEC, EAC, CSA, CCC |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V ac |
| Normal State Configuration | 4 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 25A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 25A |
| Control Circuit Voltage Uc | 24V ac |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 4 |
| oCV mode | 48.5 V ± 1% |
| oCC mode | 6.25 A ± 2.5% with voltage drop from 36 to 48 V |
Key Features
- The contactor features a coil voltage of 24V AC and contact current rating of 25A.
- It offers 4 normally open (NO) poles and 1 NO plus 1 normally closed (NC) auxiliary contact built-in for flexible control.
- Mounting is via DIN rail or screw fixing for compact installation.
- Designed for reliability with operating temperature range from -40°C to 60°C.
- The contactor supports motor starters and is suitable for non-inductive load applications up to 440V AC.
- Power rating is 1.56 watts at 24V AC coil voltage.
- It complies with international standards including UL, CSA, IEC, CCC, EAC, and RoHS.
- The device has screw clamp terminals for secure electrical connections.
Product Description
Schneider Electric LC1DT25B7 is a high-performance 4-pole contactor designed for motor control and resistive load applications requiring up to 25A and 690V AC contact voltage. It features a 24V AC coil consuming 1.56 watts, ensuring efficient operation. This compact contactor supports modular DIN rail or screw mounting, making it compatible with a wide range of electrical panels and automation systems.
Equipped with 4 normally open (NO) contacts and built-in auxiliary contacts (1 NO and 1 NC, with the NC contact mirror certified), the LC1DT25B7 contactor provides flexible control configurations essential for motor starters and resistive load switching. The device operates reliably within a temperature range from -40°C to 60°C and supports operating rates up to 3600 cycles per hour, delivering high endurance and durability for industrial environments.
Standards compliance includes UL, RoHS, IEC, EAC, CSA, CCC, and Marine certifications, ensuring global suitability and sustainability through Green Premium standards such as RoHS and REACh. The contactor uses screw clamp terminals for load and auxiliary connections to guarantee secure and robust electrical contact. Its physical dimensions of 85mm length, 45mm width, and 90mm depth provide a compact footprint, beneficial for space-constrained installations.
This contactor conforms to electrical safety and performance requirements ideal for industrial automation, manufacturing, HVAC control systems, and other commercial electrical control applications. Designed for disassembly, it contributes to environmentally sustainable practices. The product originates from Indonesia.
The contactor supports motor starters for numerous applications using 4 NO contacts. Built-in auxiliary contacts (1 NO/1 NC) allow enhanced circuit functionality. Designed for reliable operation up to 3600 cycles per hour.
Compact design facilitates easy DIN rail or screw mounting installation. Certified to multiple international standards ensuring safety and quality. Operational temperature range from -40°C to 60°C for versatile use. Screw terminals enable secure electrical connections.
Suited for resistive load and motor control applications. Explore more Schneider Electric automation and control gear products on EnvMart for comprehensive industrial electrical solutions.
Explore more products in our Automation & Control Gear category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this contactor is 24V AC.
It has a contact current rating of 25A.
This contactor features 4 normally open (NO) poles.
The operating temperature range is from -40°C to 60°C.
The dimensions are 85mm in length, 45mm in width, and 90mm in depth.
It supports mounting via DIN rail or screw fixing.
It uses screw clamp terminals for secure electrical connections.
It complies with UL, RoHS, IEC, EAC, CSA, and CCC standards.
The power rating is 1.56 watts at 24V AC coil voltage.
It includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact.
The maximum contact voltage is 690V AC.
It is suitable for motor control and resistive load applications.
