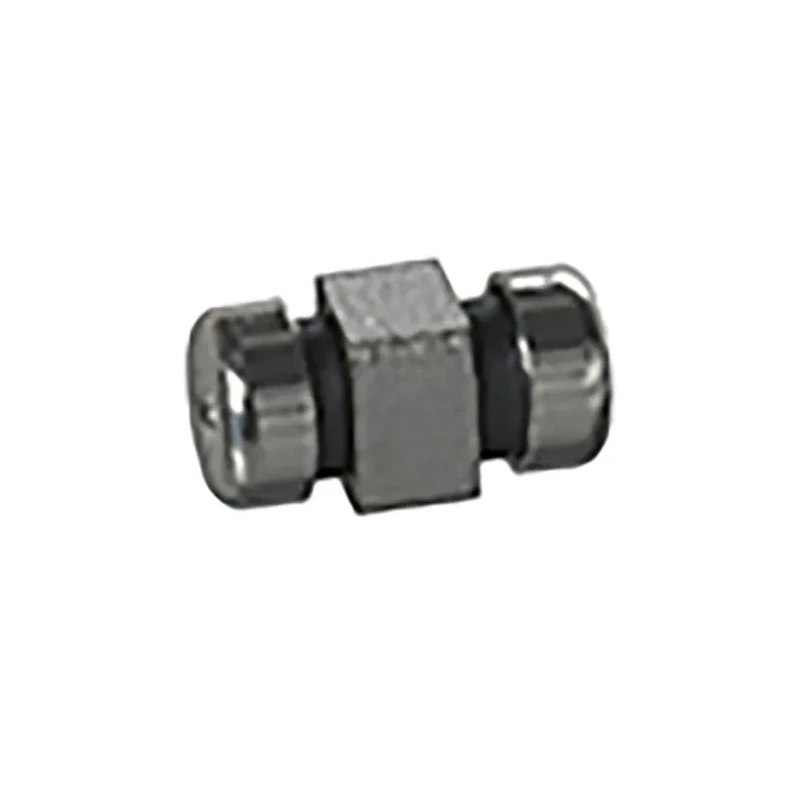

Murata Signal Filter 25V dc 6 A Surface Mount 1206 Package with Solder Pad 1.6 mm x 3.2 mm x 1.6 mm NFE31P

Murata NFE31P Signal Filter is designed as a surface mount device with a 1206 package size to provide EMI suppression in digital I/O lines across a broad range of electronic equipment. Its maximum current rating is 6 A with a maximum voltage of 25V dc, making it suitable for low voltage signal filtering.

The compact dimensions of 3.2 mm length, 1.6 mm height, and 1.6 mm depth allow high-density mounting on PCBs, while the solder pad termination ensures reliable electrical connection and assembly compatibility.

This filter leverages Murata's ceramic processing and filter design technologies to achieve low residual inductance and excellent EMI suppression. The device contains four circuits within one package, with a 0.8 mm pitch, enabling compact and efficient PCB layouts.

It operates reliably in temperatures ranging from -40°C to 85°C, suitable for demanding industrial and consumer electronic environments. The filter meets RoHS standards, supporting environmental compliance requirements.

Typical applications for the Murata NFE31P include personal computers, peripherals, telecommunication devices, digital televisions, and DVD players, where effective noise reduction on signal lines is critical.

This filter operates up to a maximum temperature of 85°C and down to -40°C. Offers effective EMI suppression using ceramic processing technology and low residual inductance three-terminal structure. The compact array package contains four circuits per component, enabling space-saving designs.

Designed for surface mount with solder pad termination style for ease of assembly. Suitable for high-frequency noise suppression in digital I/O lines of various electronic equipment. Its 1206 package provides small-size integration in circuit designs.

RoHS compliant for environmental safety. Applications include computing, communication, and consumer electronics.
