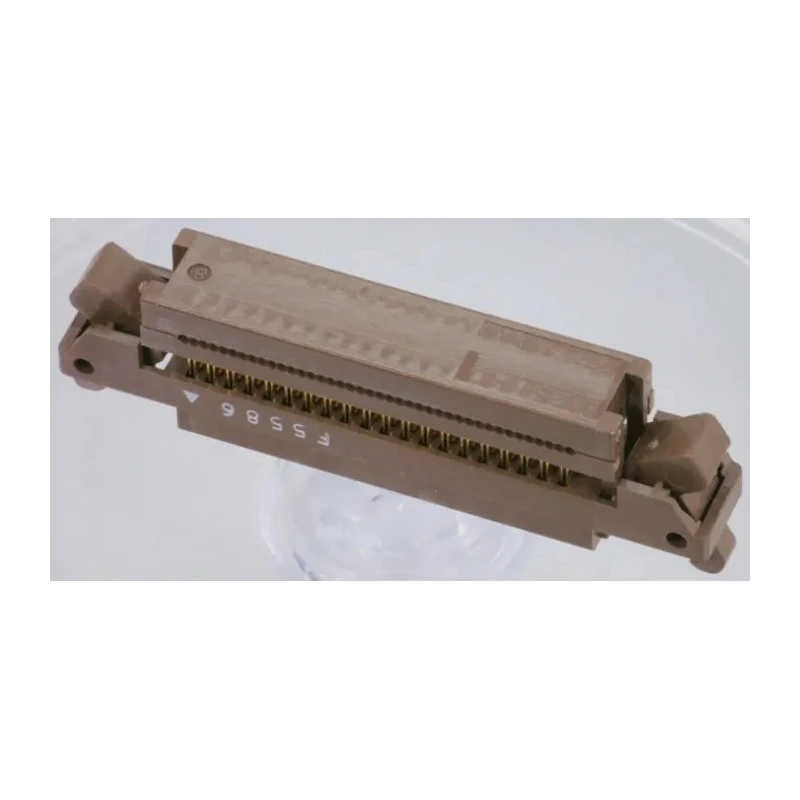

KEL Corporation 8925E Series Right Angle Cable PCB Socket, 68-Contact, 2 Row, 1.27 mm Pitch, IDC 8925E-068-179-F
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 300V |
| Brand | KEL Corporation |
| Orientation | Right Angle |
| Current | 500mA |
| Model | 8925E-068-179-F |
| Mount Type | Cable |
| Housing Material | Glass Filled Nylon |
| Contact Material | Copper |
| Series | 8925E |
| Termination Type | IDT |
| Maximum Operating Temperature | 85°C |
| Sub Type | Wire-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 68 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- The low profile design supports right angle mounting for space saving.
- IDC termination ensures reliable, low insertion and withdrawal force connections.
- Constructed with a glass filled nylon housing for durability and heat resistance.
- Gold over nickel plated copper contacts provide excellent conductivity and corrosion resistance.
- Operates between -55°C and 85°C, making it suitable for harsh environments.
- Includes an eject lock mechanism for secure mating and easy connector release.
- Strain relief enhances cable support and durability.
- Designed for daisy chain wiring and compatible with 0.635 mm pitch flat ribbon cable.
Product Description
KEL Corporation 8925E-068-179-F Right Angle Cable PCB Socket is a 68-contact, 2-row IDC ribbon cable connector with a 1.27 mm pitch designed for wire-to-board applications. It operates at 300V and 500mA, with a housing made of glass filled nylon that ensures mechanical stability and thermal endurance from -55°C up to 85°C. The right angle orientation allows for efficient use of PCB space, ideal for compact electronic assemblies.
This series features IDC spring contacts that provide reliable electrical connections with low insertion and withdrawal force, minimizing wear on cables and connectors. The eject lock mechanism guarantees a secure mate and single-handed release capability for convenient maintenance and installation.
The connector system supports board-to-board interfacing and includes a strain relief that protects the ribbon cable from mechanical stress, extending service life in industrial, electronic, and commercial applications.
The 8925E series connectors are especially suitable for daisy-chain cable assemblies, facilitating complex wiring in electronics manufacturing, industrial control, instrumentation, and telecommunications equipment.
Low profile design facilitates compact assembly layout. IDC spring contacts ensure durable and reliable connections. Gold over nickel plating improves corrosion resistance and conductivity. Eject lock mechanism enables secure and easy connector handling.
Strain relief provides mechanical protection to cables. Operates reliably from -55°C to 85°C ambient temperatures. 300V voltage rating and 500mA current rating support low power signal connections. Compatible with standard 0.635 mm pitch ribbon cable for daisy chain assemblies.
Compliant with industry standards though no specific approvals are certified. Originating from Japan, this high-quality PCB Socket offers dependable performance in demanding electronic and industrial environments.
Explore a comprehensive range of PCB connectors at EnvMart for your electrical and electronic manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a voltage rating of 300V and a current rating of 500mA, suitable for low power signal connections.
It operates reliably within a temperature range of -55°C to 85°C, making it suitable for harsh environments.
The 8925E-068-179-F features IDC (Insulation Displacement Connector) termination, which ensures reliable connections with low insertion and withdrawal force.
This PCB socket has 68 contacts arranged in 2 rows, designed for efficient wire-to-board applications.
The housing is made of glass filled nylon, while the contacts are constructed from copper with gold over nickel plating, enhancing conductivity and corrosion resistance.
The pitch size of the KEL Corporation 8925E-068-179-F is 1.27 mm, which is compatible with standard ribbon cables.
Yes, it features an eject lock mechanism that ensures secure mating and allows for easy connector release.
This model is compatible with 0.635 mm pitch flat ribbon cable, making it suitable for daisy chain wiring applications.
The KEL Corporation 8925E-068-179-F is designed for right angle mounting, facilitating compact assembly layouts.
It is designed for wire-to-board applications and is particularly suitable for daisy-chain cable assemblies in electronic manufacturing and industrial control.
It includes strain relief that enhances cable support and protects against mechanical stress, extending the service life of the cable.
This PCB socket originates from Japan, ensuring quality performance in demanding environments.
